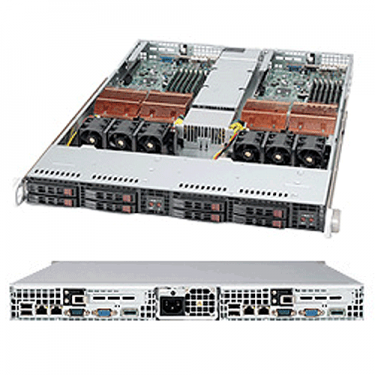

Super X7DCT-3F Server Motherboard and SC809T-780B 1U Rackmount Server chassis.
Product SKU |
|
---|---|
SYS-1025TC-3FB | • SuperServer 1025TC-3FB (Black) |
Motherboard |
|
---|---|
Super X7DCT-3F + Super X7DCT-3F |
Processor/Cache |
|
---|---|
CPU | • Dual 771-pin LGA Sockets • Supports up to Dual Intel® 64-bit Xeon®processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz |
System Bus | • 1333 / 1066 MHz system bus |
OS Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory (per node) |
|
---|---|
Memory Capacity | • Six 240-pin DIMM sockets • Supports up to 48 GB 667/533MHz DDR2 ECC Register DIMM memory • Dual channels memory bus |
Memory Type | • 677/533MHzECC Register DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 1GB, 2GB, 4GB, 8GB** |
Memory Voltage | • 1.8V only |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices (per node) |
|
---|---|
Chipset | • Intel® 5100 (San Clemente) chipset • Intel® ICH9R SB |
SAS | • LSI SAS1064E |
SATA | • Intel ICH9R SB SATAII Controller |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
Network Connectivity | • Intel® 82575 Dual-Port Gigabit Ethernet Controllers |
Graphics | • Matrox G200 8MB DDR2 |
Super I/O | • Winbond W83627HG chip |
Clock Generator | • ICS9LPR501 chip |
Input/Output (per node) |
|
---|---|
SAS | • 4 SAS / SATA ports |
Serial ATA |
• Four Serial ATA ports |
LAN |
• 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 2 rear + 1 Type A connector + 2 headers (2 Ports) • 5 total USB ports, 2.0 Compliant / 1.1 Compliant |
VGA | • 1x VGA port |
Serial Port | • 1 Fast UART 16550 serial port |
System Bios |
|
---|---|
Bios Type | • 16Mb SPI Flash with Phoenix ® BIOS |
Bios Features | • Plug and Play (PnP)
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • SC809T-780B |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 27.75" (705mm) |
Gross Weight | • 40 lbs (18.1kg) |
Available Color | • Black |
Front Panel (per node) |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED |
• Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED |
Expansion Slots (per node) |
|
---|---|
PCI-Express |
• 1 (x8) PCI-e (in x16 slot - Low Profile) |
Drive Bays (per node) | 1x 1U SAS / SATA backplane
|
---|---|
Hot Swap | • 4x 2.5" SAS Hot-swap drive bays |
SATA Backplane |
|
---|---|
• 1U SATA Backplane |
System Cooling |
|
---|---|
Fans | • 6x Cooling Fans |
Power Suplly |
|
---|---|
780W AC to DC power supply w/ PFC | |
AC Input | • 100-240V, 60-50Hz, 9.5-3.5Amp |
+5V sb | • 4 Amp |
+12V | • 65 Amp @ 180-240Vac • 58 Amp @ 100-140Vac |
Management |
|
---|---|
Software | • Optional IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 • SuperDoctor® III • Watch Dog • NMI |
Power Configuration | • ACPI Power Management • Main Switch Override Mechansim • Power-on mode for AC power recovery |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores,+1.5V, +3.3V, +5V, ±12V, +5 Stdby, VBAT • CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
FAN | • Total of three 4-pin fans • 3x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI |
LED | • CPU / System Overheat LED • Suspend-state Indicator LED |
Other Features | • SDDC Support |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
