  • Supermicro 1U SuperChassis CSE-116AC2-R706WB

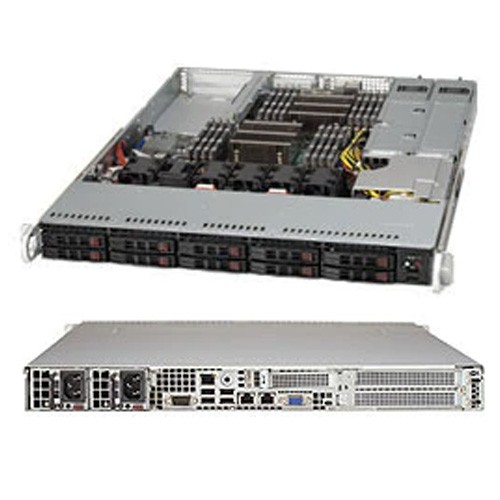

Supermicro 1U SuperChassis CSE-116AC2-R706WB

Call for price.
SKU:CSE-116AC2-R706WB

Quick Overview:

Key Features:
• 1U chassis for motherboard
• E-ATX 12"x13", 13.38"x 13.4".
• 10 x 2.5" hot-swap SAS/SATA drive bay
• 1U Redundant 700/750W Power Supply
• 2 full-height & full-length expansion slot(s)
• 4 x 40x56mm counter-rotation PWM fan(s)

Details

Supermicro SuperChassis CSE-116AC2-R706WB

Product SKU
CSE-116AC2-R706WB2 • SuperChassis 116AC2-R706WB
Form Factor
  • 1U chassis for motherboard support size of E-ATX 12"x13", 13.38"x 13.4"
• Optimized for WIO (W series) motherboards
Processor Support
  • Dual, single Intel® / AMD processors
Dimensions
Height

• 1.7" (43 mm)

Width

• 17.2" (437 mm)

Depth

• 23.5" (597 mm)

Gross Weight

• 40 lbs (18.14 kg)

Available Color

• Black

Expansion Slots
  • 2 full-height & full-length expansion slot(s)
• 1 low-profile expansion slot(s)
Drive Bays
  • 10 x 2.5" hot-swap SAS/SATA drive bay
Backplane
  • 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Front Panel
Buttons • Power On/Off button
• Unit Identification (UID) button
LEDs


































• 2 Network Activity LEDs
• HDD activity LED
• Power Status LED
• Unit Identification (UID) LED































Motherboard (for CSE- 116AC2-R706WB)
  • X10DRW-iT
• X10DRW-NT
• X10DRW-E
• X11SSW-F
• X10DRW-i
• X10DRW-ET
• X10DRW-N
Servers (for CSE- 116AC2-R706WB)
  • 1018R-WC0R
• 1029P-WTRT
System Cooling
Fans

• 4 x 40x56mm counter-rotation PWM fan(s)
• Optional 2 x fans for AOC cooling

System Monitoring


• Chassis intrusion switch

Operating Environment (System)
Operating
Temperature Range

• 5°C - 35°C (41°F - 95°F)

Non-Operating
Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative
Humidity Range

• 8% - 90% (non-condensing)

Non-Operating
Relative Humidity
Range

• 5% - 95% (non-condensing)

Power Supply


• 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width

Power Efficiency

• 94%

Total Output
Power and Input

• 700W with Input 100 - 140Vac
• 750W with Input 200 - 240Vac

AC Input
Frequency

• 50-60Hz

Dimensions
(L x W x H)

• 320 x 54.5 x 40.25 mm

Output Type

• Backplanes (gold finger)

+12V

• Max: 58A / Min: 0.5A (100Vac - 140Vac)
• Max: 62A / Min: 0.5A (200Vac - 240Vac)

+5Vsb

• Max: 3A / Min: 0A

Power Distributor

• PDB-PT112-2420
• O/P: 12V/54
• +5V Max: 25
• +3.3V Max: 25
• -12V Max: 0.6

Certification

• Platinum Certified

Regulatory (Power Supply)
Power Supply
Safety / EMC

• BSMI
• CCC
• CE/EMC
• FCC class A
• UL/CB
• UL/CUL
