Supermicro 1U Rackmount SuperStorage SSG-5018A-TN7B

Call for price.

SKU:SYS-5018A-TN7B

Quick Overview:

Key Features:
• Embedded Network Security
• Atom 8-Core Rangeley
• 7 LAN w/ 3 pair bypass
• Up to 64GB DDR3 1600MHz ECC or non-ECC UDIMM
• Intel® Atom processor C2758, SoC, FCBGA 1283, 20W 8-Core
• 7x GbE LAN including 6 ports LAN bypass (SW programmable) ports w/SoC I354, I350-AM2 and I210-AT
• 1x 3.5" Fixed drive bay or 4x 2.5" drive bays w/ optional bracket
• 1x PCI-E 2.0 x4 (in x8) slot
• Up to 64GB DDR3 1600MHz ECC or non-ECC UDIMM
• IPMI 2.0 with shared LAN
• 2x 4cm counter-rotating PWM fans; Support up to 3x system fans
• 200W Multi-output power supply
• 7-Year product life

Description

Details

SuperServer SYS-5018A-TN7B

Supermicro 5018A-TN7B 1U Rackmount Barebone with 200W Multi-output power supply, Intel® Atom processor C2758 support 1x 3.5" Fixed drive bay or 4x 2.5" drive bays w/optional
bracket using Supermicro A1SRM-LN7F-2758 Atom Motherboard and CSE-510-203B 1U Rackmount Chassis.

Product SKU
SYS-5018A-TN7B	• SuperServer 5018A-TN7B (Black)

Motherboard
	Super A1SRM-LN7F-2758

Processor/Cache
CPU	• Intel® Atom™ Processor C2758 • CPU TDP 20W (8-Core) • FCBGA 1283 • System-on-Chip

System Memory
Memory Capacity	• 4x 240-pin DDR3 UDIMM sockets • Supports up to 64GB DDR3 ECC or non-ECC memory
Memory Type	• 1600/1333MHz ECC or non-ECC DDR3 SDRAM, 240-pin gold-plated DIMMs, x8 width only
DIMM Sizes	• 16GB, 8GB, 4GB, 2GB
Memory Voltage	• 1.5 V, 1.35 V

On-Board Devices
SATA	• SoC SATA3 (6Gbps), SATA2 (3Gbps)
USB 2.0	• C2000 SoC
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST 2400 BMC
Network Connectivity	• Quad GbE LAN w/ Intel C2000 SoC i354 - 2 pairs LAN bypass • Single GbE LAN w/ Intel i210-AT • Dual GbE LAN w/ Intel Ethernet controller i350-AM2 - 1 pair LAN bypass
Graphics	• BMC integrated ASPEED AST2400

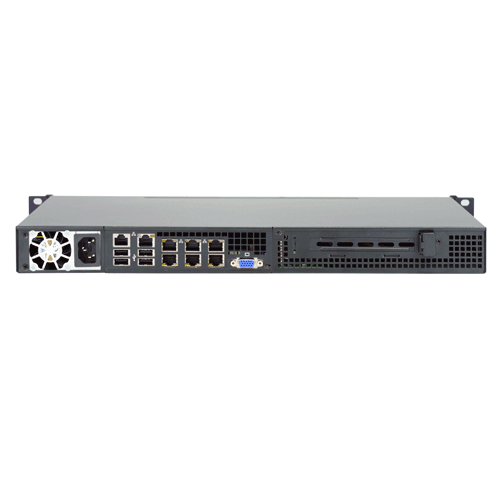

Input/Output
Serial SATA	• 2x SATA3 (6Gbps) ports • 4x SATA2 (3Gbps) ports
LAN	• 7x RJ45 Gigabit Ethernet LAN ports with shared LAN IPMI 2.0
USB	• 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header)
Serial Port	• 2x Fast UART 16550 Serial Port (1 rear, 1 via header)
DOM	• 1x SATA DOM (Disk on Module) power connector • 1x SuperDOM Supermicro SATA DOM with built-in power connector
VGA	• 1x VGA port
Others	• TPM 1.2 header

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-510-203B

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 11.3" (287mm)
Gross Weight	• 12.55 lbs (5.69 kg)

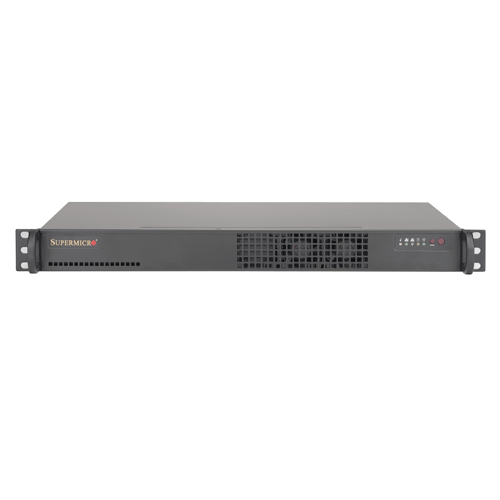

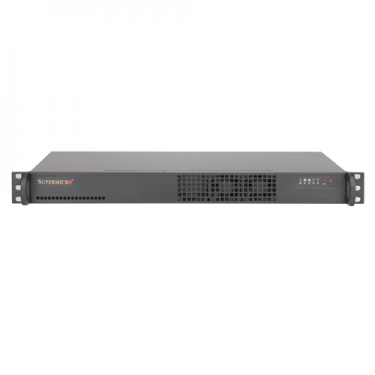

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Information LED (temp., status)

Expansion Slots
PCI-Express	• 1x PCI-E 2.0 x4 (in x8) slot

Drive Bays
HDD	• 1x 3.5" or 4x 2.5" (opt. bracket required) internal drive bays

System Cooling
Fans	• 2x 4cm counter rotating PWM fans, support up to three system fans

Power Supply
	200W Low Noise AC-DC power supply with PFC
AC Voltage	• 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	• 8.0 Amp (max.)
+5V standby	• 2.0 Amp (max.)
+12V	• 16 Amp (max.)
-12V	• 0.5 Amp (max.)
+3.3V	• 8.0 Amp (max.)
Certification	• Gold Certified

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI UEFI BIOS
Bios Features	• Plug and Play (PnP) • DMI 2.3 • ACPI 5.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
