  • Supermicro 1U Rackmount SuperStorage SSG-5018A-MLTN4

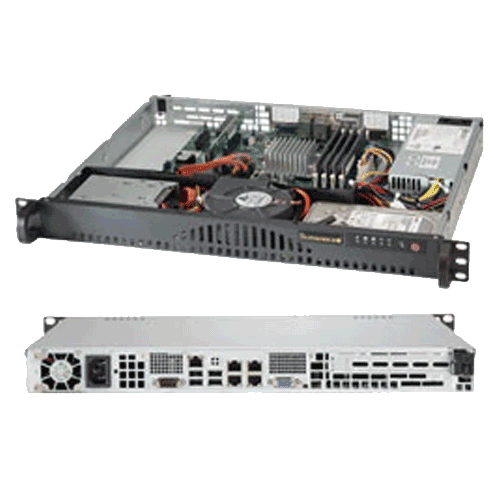

Supermicro 1U Rackmount SuperStorage SSG-5018A-MLTN4

Call for price.
SKU:SYS-5018A-MLTN4

Quick Overview:

Key Features:
• Cost-Effective 4-Core Atom Avoton Solution
• Space-efficient, compact design
• Fast to build and deploy
• Gateway, file-sharing, security
• Intel® Atom processor C2550, SoC, FCBGA 1283, 14W 4-Core
• Intel® System-on-Chip Design
• 2x 3.5" Fixed SATA3 HDD bays or 4x 2.5" SATA2 HDD optional
• 1x PCI-E 2.0 x8, 1x PCI-E 2.0 x4
• Up to 64GB DDR3 1600MHz ECC or non-ECC UDIMM in 4 DIMM slots
• Quad GbE ports, IPMI w/ dedicated LAN
• DOM power connector
• 200W Low-noise power supply w/ PFC

Details

SuperServer SYS-5018A-MLTN4

Supermicro 5018A-MLTN4 1U Rackmount Barebone with 200W Low-noise power supply w/ PFC, Intel® Atom processor C2550 support Up to 2x 3.5" Fixed SATA3 HDD bays or
4x 2.5" SATA2 HDD optional using Supermicro A1SAM-2550F Atom Motherboard and CSE-512L-200B 1U Rackmount Chassis.

Product SKU
• SuperServer 5018A-MLTN4 (Black)
Motherboard
        Super A1SAM-2550F
Processor/Cache
CPU

• Intel® Atom™ Processor C2550
• CPU TDP 14W (4-Core)
• FCBGA 1283
• System-on-Chip

System Memory
Memory Capacity • 4x 240-pin DDR3 DIMM slots
• Supports up to 64GB DDR3 ECC or non-ECC memory
Memory Type • 1600/1333MHz ECC or non-ECC UDIMM SDRAM, 240-pin gold-plated DIMMs, x8 width only
DIMM Sizes • 16GB, 8GB, 4GB, 2GB
Memory Voltage • 1.5 V, 1.35 V
On-Board Devices
SATA • C2000 SoC SATA3 (6Gbps), SATA2 (3Gbps)
USB 2.0 • C2000 SoC
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST 2400 BMC
Network Connectivity

• C2000 SoC I354 Quad GbE controllers (MACs)
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video • BMC integrated ASPEED AST2400
Input/Output
Serial SATA • 2x SATA3 (6Gbps) ports
• 4x SATA2 (3Gbps) ports
LAN • 4x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header)
Serial Port • 2x Fast UART 16550 Serial Port (1 rear, 1 via header)
DOM • 1x SATA DOM (Disk on Module) power connector
VGA

• 1x VGA port

Others

• TPM 1.2 header











Chassis
Form Factor • 1U Rackmount
Model CSE-512L-200B
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (426mm)
Depth • 14.0" (356mm)
Gross Weight • 12 lbs (5.44 kg)
Front Panel
Buttons • Power On/Off button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansion Slots
PCI-Express

• 1x PCI-E 2.0 x8 slot via riser

Drive Bays
HDD • 2x 3.5" or 4x 2.5" internal SATA2 hard drive bays (optional)
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 3-1.5 Amp Max
+5V • 16.0 Amp
+5V standby • 2.0 Amp
+12V • 15.0 Amp
-12V • 0.8 Amp
+3.3V • 17.0 Amp
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI UEFI BIOS
Bios Features • Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
