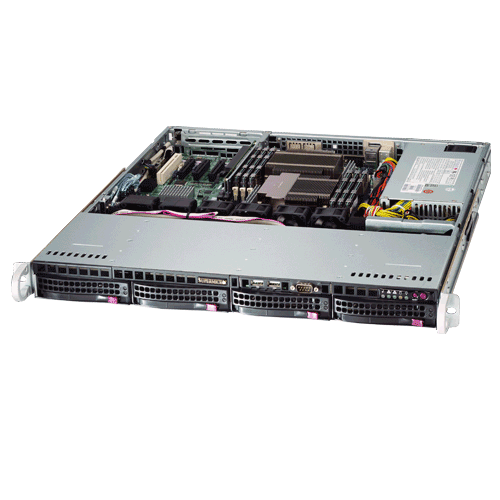

Supermicro 1U Rackmount SYS-6017B-MTF - Angle

More Views

Supermicro 1U Rackmount SuperServer SYS-6017B-MTF

Call for price.

SKU:SYS-6017B-MTF

Quick Overview:

Key Features:
• Dual socket B2 (LGA 1356) supports Intel® Xeon® processor E5-2400 v2
• Up to 192GB DDR3 1600MHz ECC R/LRDIMM; 6x DIMM slots
•1 PCI-E 3.0 x16 Expansion slot (FHFL)
• Intel® 82574L GbE LAN, 2 ports
• 4x 3.5" Hot-swap SATA HDD Bays
• 440W High-efficiency Power Supply Platinum Level (94%+)
• 1U Short Depth - 19.8" (503mm)

Description

Details

SuperServer SYS-6017B-MTF

Supermicro 6017B-MTF 1U Rackmount Barebone with 440W High-efficiency Power Supply, Intel® C602 Chipset support 4x 3.5" Hot-swap SATA HDD Bays using Supermicro
Super X9DBL-iF Server Motherboard and CSE-813MTQ-441CB 1U Rackmount Chassis.

Product SKU
SYS-6017B-MTF	• SuperServer 6017B-MTF (Black)

Motherboard
	Super X9DBL-iF

Processor/Cache
CPU	• Dual Socket B2 (LGA 1356) • Intel® Xeon® processor E5-2400 v2 • 50W to 95W E5-2400 support
Cache	• Up to 25MB
System Bus	• QPI up to 8 GT/s

System Memory
Memory Capacity	• 6x 240-pin DDR3 DIMM slots • Supports up to 192 GB DDR3 ECC Registered memory (R/LRDIMM) • Supports up to 48 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	• 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Connectivity	• Intel® 82574L Gigabit Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics	• Matrox G200eW

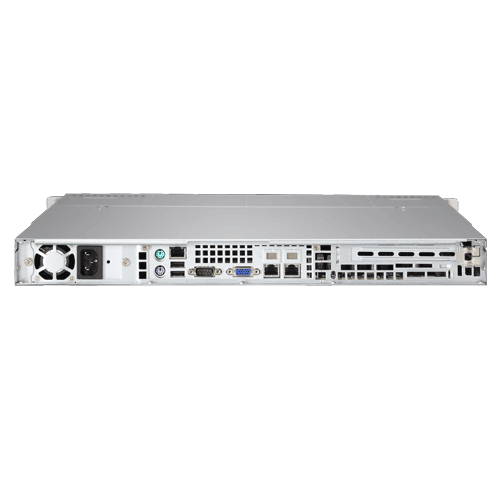

Input/Output
LAN	• 2 RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 7x USB 2.0 ports total (2 rear + 4 via header + 1 Type A)
VGA	• 1x VGA port
Serial Port/Header	• 2x Fast UART 16550 ports / 1 rear and 1 header

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-813MTQ-441CB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 19.8" (503mm)
Gross Weight	• 36 lbs (18.1kg)
Available Color	• Black

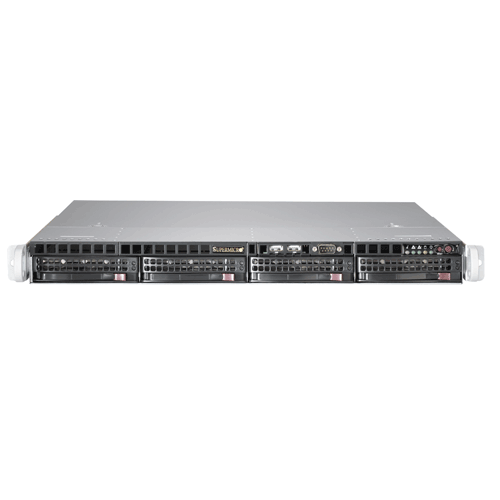

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LED	• Power LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED

Expansion Slots
PCI-Express	• 1x PCI-E 3.0 x16 Full-height Half-length (Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)

Expansion Slots

PCI-Express

• 1x PCI-E 3.0 x16 Full-height Half-length

(Both CPUs need to be installed for full access to PCI-E slots. See manual for details.)

Drive Bays
Hot Swap	• 4x 3.5" Hot-swap SATA HDD trays

SATA Backplane
	• 1U SATA HDD Backplane

System Cooling
Fans	• 4x 4cm 12,500 RPM PWM fans

Power Supply
	440W/480W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
AC Input	• 100-140V, 50-60Hz, 5.5-4A • 180-240V, 50-60Hz, 3.5-2.5A
DC Output	• +3.3V: 15A • +5V: 18A • +5V standby: 3A • +12V: 35.8A at 100-140Vac 39.1A at 180-240Vac
Certification	• Platinum Certified (94%)

System Bios
BIOS Type	• 64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • BIOS rescue hot keys • USB Keyboard support • SMBIOS 2.7.1 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
