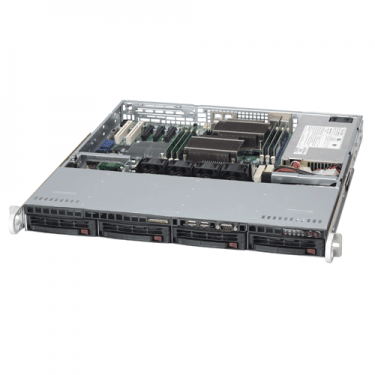

  • Supermicro 1U Rackmount SYS-6016T-MT - Angle
  • Supermicro 1U Rackmount SYS-6016T-MT - Front
  • Supermicro 1U Rackmount SYS-6016T-MT - Rear

Supermicro 1U Rackmount SuperServer SYS-6016T-MT

Call for price.
SKU:SYS-6016T-MT

Quick Overview:

Key Features:
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• Up to 48GB** DDR3 1333/ 1066/ 800MHz ECC Registered /
   24GB Unbuffered DIMM
• 1 (x8) PCI-E 2.0 Slot
• Dual Intel® 82574L Gigabit Ethernet Controller
• 4x 3.5" Hot-swap SATA Drive Trays
• 520W High-efficiency Power Supply


Details

SuperServer SYS-6016T-MT Rackmount

Supermicro SYS-6016T-MT 1U Rackmount with 520W High-efficiency Power Supply, Intel® 5500 (Tylersburg) chipset Support 4x 3.5" Hot-swap SATA drive bays ,using Supermicro
Super X8DTL-I Motherboard and CSE-813MTQ-520C1U Rackmount Chassis


Product SKU
• SuperServer 6016T-MT (Black)
Motherboard
        Super X8DTL-I
Processor/Cache
CPU

• Dual 1366-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 95W
• Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W

QPI • up to 6.4 GT/s
System Memory
Memory Capacity • 6x 240-pin DIMM slots
• Supports up to 48 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory
• Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
• Memory Mirroring supported
Memory Type • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage • 1.5 V / 1.35V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5500 (Tylersburg) chipset
• ICH10R + IOH-24D

SATA • Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Windows)
• RAID 0, 1, 10 support (Linux)
Network Controllers  • 2x Intel® 82574L Gigabit Ethernet Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • Matrox G200eW
Super I/O • Winbond 83827HF chip
Input/Output
Serial ATA • Six Serial ATA ports
• Six SATA hard drives supported
LAN • 2x RJ45 LAN ports
USB

• 2x USB rear ports
• 1x USB on-board
• 2x USB internal headers
• Total 6 USB 2.0 Compliant

VGA • 1x VGA Port
Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header (Option

System Bios
Bios Type • 32Mb SPI Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support

















Chassis
Form Factor • 1U Rackmount
Model CSE-813MTQ-520C
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 19.8" (503mm)
Weight • 31 lbs (14.1kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Ports • 2x Front USB Ports
• 1x Serial COM Port
Optional Front Bezel • Please contact Will Jaya for compatibility issues
Expansion Slots
PCI-Express

• 1 PCI-E(x8) in x16 slot

Drive Bays
Hot-Swap

• 4x 3.5" Hot-swap SATA drive bays

Peripheral Drives
DVD-ROM

• Slim DVD-ROM drive

SATA Backplane


• 1x SATA Backplane

System Cooling
Fans • 4x 4cm heavy duty RPM fans
Power Supply
  520W AC to DC power supply w/ PFC
AC Voltage • 100 - 240V, 50 - 60Hz, 7 - 3Amp
+5V • 20 Amp
+5V standby • 3 Amp
+12V • 39 Amp
-12V • 0.5 Amp
+3.3V • 16 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 4-Phase-switching voltage regulator
FAN • Total of six fan headers supporting up to 6 fans
• Six 4-pin fan headers
• 6x fans with tachometer status monitoring
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for 6x fan connectors
• PECI
Other Features • Chassis intrusion detection
• Chassis intrusion header
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
