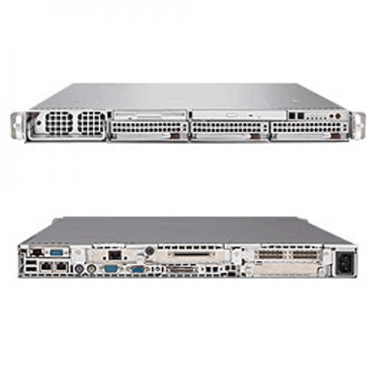

Supermicro 1U Rackmount SuperServer SYS-6015X-3B

Call for price.
SKU:SYS-6015X-3B

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 / 1333
   MHz FSB
• Up to 32GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• Left Universal slot supporting: 1 (x8) PCI-Express OR 1x 64-bit 133MHz
   PCI-X
• Right Universal slot supporting: 1 (x4) PCI-Express, or 1x 64-bit 100MHz
   PCI-X
• Left Auxiliary slot supporting: 1 (x8), PCI-Express
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 3 x 3.5" Hot-swap SAS / SATA Drive Bays
• 700W Cold-swap High-efficiency Power Supply


Details

SuperServer SYS-6015X-3V / SYS-6015X-3B 1U Rackmount

SupermicroSYS-6015X-3V / SYS-6015X-3B 1U Rackmount with 700W Cold-swap High-efficiency Power Supply, Intel® 5000P (Blackford) chipset, support 3x 3.5" Hot-swap drive bays,
using Supermicro Super X7DBX-i Motherboard and SC819TQ-700V(B) (B = Black) Rackmount Chassis


Product SKU
• SuperServer 6015X-3V (Silver)
• SuperServer 6015X-3B (Black)
Motherboard
        Super X7DBX-i
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz

System Bus • 1333 / 1066 / 667 MHz system bus
Operating System Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM sockets
• Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
• Memory Mirroring supported
Memory Type • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8V only
• 1.5V (AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5000P (Blackford) chipset
• MCH + PXH + ESB2

SAS (Add-on Card) • AOC-USAS-L4i - UIO SAS Controller Card
• LSI 1068 PCI-E SAS Controller
• RAID, 0, 1, 10 Support
IPMI • Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI socket (SIM1U)
• (Optional: AOC-SIM1U-3B and AOC-SIM1U-3D)
Network Controllers  • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics • ATI ES1000 controller with 16 MB of video memory
Super I/O • Winbond 83627HG chip
Input/Output
IDE • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Compact Flash (40-pin connector, IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB
LAN • 2x RJ45 LAN ports
USB

• 2x USB rear ports
• 3x USB internal headers
• Total 5 USB 2.0 Compliant / 1.1 Compliant

VGA • 1x VGA Port
Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

Chassis
Form Factor • 1U Rackmount
Model SC819TQ-700V(B) (B = Black)
Dimension and Weight
Height • 1.7" (43mm)
Width • 19" (483mm)
Depth • 27" (686mm)
Weight • 38.5 lbs (17.5kg)
Available Color • Silver, Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
• UID LED
Expansion Slots
Left Universal Slot

• 1 PCI-Express (x8) Slot OR
• 1 64-bit 133MHz PCI-X (3.3V) Slot
• Full-height Full-length

Right Universal Slot • 1 PCI-Express (x4) Slot OR
• 1x 64-bit 100MHz PCI-X (3.3V) Slot
• Low-profile
Drive Bays
Hot Swap

• 3x 3.5" Hot-swap drive bays

Peripheral Drives
DVD-ROM

• Slim 8x DVD, 24x CD, DVD-ROM drive

Backplane


• 1x 3-port SAS Backplane

System Cooling
Fans • 5x Cooling Fans
Shroud • 1x Air Shroud
Power Supply
  700W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 10 - 4 Amp
+5V stand by • 4 Amp
+12V • 57 Amp
+5V • 20 Amp
+3.3V • 20 Amp
-12V • 0.6 Amp
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features • Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
• Hardware BIOS Virus protection
Operating Environment / Compliance
Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
