  • sUPERMICRO 1U Rackmount SYS-6015V-TLP

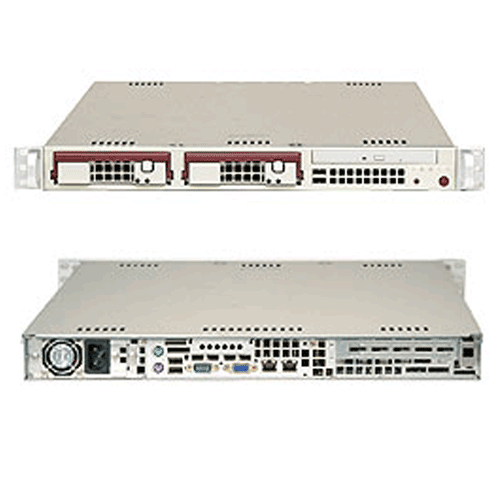

Supermicro 1U Rackmount SuperServer SYS-6015V-TLP

Call for price.
SKU:SYS-6015V-TLP

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 / 1333
   MHz FSB
• Up to 24GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• 1x 64-bit 133/100MHz PCI-X Slot
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 2 x 3.5" Hot-swap SATA Drive Bays
• ATI ES1000 Graphics with 16MB video memory
• 280W High-efficiency Power Supply


Details

SuperServer SYS-6015V-TLP / SYS-6015V-TLPB 1U Rackmount

Supermicro SYS-6015V-TLP / SYS-6015V-TLPB 1U Rackmount with 280W High-efficiency Power Supply, Intel® 5000V (Blackford VS) chipset, 2x 3.5" Hot-swap SATA drive bays, using
Supermicro Super X7DVL-E Motherboard and SC512F-520B Rackmount Chassis


Product SKU
• SuperServer 6015V-TLP (Beige)
• SuperServer 6015V-TLPB (Black)
Motherboard
        Super X7DVL-i
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 LV sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100/5000 LV sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz
• NOTE: The server supports Xeon® LV (Below 80W) processors

System Bus • 1333 / 1066 / 667 MHz system bus
Operating System Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Six 240-pin DIMM sockets
• Supports up to 24GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
• No Memory Mirroring support
Memory Type • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8V only
• 1.5V (AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5000V (Blackford VS) chipset
• MCH + ESB2

SATA • Intel ESB2 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Windows Only)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI slot (SIM1U)
• (Optional: AOC-SIMLC(+), AOC-SIM1U(+))
• NOTE: KVM-over-LAN not supported - there is no DVO signal to the IPMI slot
Network Controllers  • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • XGI Volari™ Z7 PCI-E Graphics Processor
Super I/O • Winbond 83627HF chip
Input/Output
Serial ATA • Six Serial ATA ports
• Six SATA hard drives supported
IDE • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S)
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
LAN • 2x RJ45 LAN ports
USB

• 2x USB rear ports
• 2x USB internal headers for up to 4-ports
• Total 6 USB 2.0 Compliant / 1.1 Compliant

VGA • 1x VGA Port
Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

Parallel Port   • 1 Header for ECP / EEP parallel port
Chassis
Form Factor • 1U Rackmount
Model SC811TQ-280
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (426mm)
Depth • 22.6" (574mm)
Weight • 30 lbs (13.6kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Ports • none
Expansion Slots
Universal Slot

• 1x 64-bit 133/100MHz PCI-X (3.3V) slot
OR
• 1x PCI-e x8 slot
• Riser Card Required

Drive Bays
Hot Swap

• 2x 3.5" Hot-swap SATA drive bays

Peripheral Drives
DVD-ROM

• Slim 8x DVD, 24x CD, DVD-ROM drive

SATA Backplane
  • 1U SATA Backplane w/ Enclosure Management
System Cooling
Fans • 2x 10cm 5,000 RPM blower fans
Power Supply
  280W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50 - 60Hz, 5Amp
+5V • 18 Amp
+5V stand by • 2 Amp
+12V • 23Amp @ 100-140V, 27Amp @ 180-240V
-12V • 1.0 Amp
+3.3V • 15 Amp
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features • Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.3
• PCI 2.2
• ACPI 1.0
• BIOS rescue hot keys
• USB Keyboard support
• Hardware BIOS Virus protection
Operating Environment (System)
Operating Temperature Range

• 10 - 35°C (50° to 95° F)

Non-Operating Temperature Range • -40 - +70°C (-40° to 158° F)
Humidity Range • 8 - 90% non-condensing
Non-Operating Humidity Range

• 5 - 95% non-condensing
