  • Supermicro 1U Rackmount SYS-6015V-MRLPB

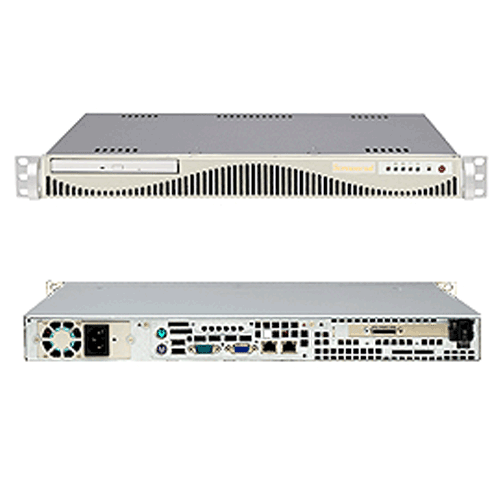

Supermicro 1U Rackmount SuperServer SYS-6015V-MRLPB

Call for price.
SKU:SYS-6015V-MRLPB

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 / 1333
   MHz FSB
• Up to 24GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• 1x 64-bit 133/100MHz PCI-X Slot
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 2x 3.5" Internal Drive Bays
• ATI ES1000 Graphics with 16MB video memory
• 280W High-efficiency Power Supply


Details

SuperServer SYS-6015V-MRLP / SYS-6015V-MRLPB 1U Rackmount

Supermicro SYS-6015V-MRLP / SYS-6015V-MRLPB 1U Rackmount with 280W High-efficiency Power Supply, Intel® 5000V (Blackford VS) chipset, 2x 3.5" internal drive bay, using
Supermicro Super X7DVL-E Motherboard and SC512F-280B Rackmount Chassis


Product SKU
• SuperServer 6015V-MRLP
• SuperServer 6015V-MRLPB
Motherboard
        Super X7DVL-E
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 LV sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100/5000 LV sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz
• NOTE: The server supports Xeon® LV (Below 80W) processors

System Bus • 1333 / 1066 / 667 MHz system bus
Operating System Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Six 240-pin DIMM sockets
• Supports up to 24GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
• No Memory Mirroring support
Memory Type • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8V only
• 1.5V (AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5000V (Blackford VS) chipset
• MCH + ESB2

SATA • Intel ESB2 SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support (Windows Only)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI slot (SIM1U)
• (Optional: AOC-SIMLC(+), AOC-SIM1U(+))
Network Controllers  • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics • ATI ES1000 controller with 16 MB of video memory
Super I/O • Winbond 83627HG chip
Input/Output
Serial ATA • Six Serial ATA ports
• Six SATA hard drives supported
IDE • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S)
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB
LAN • 2x RJ45 LAN ports
USB

• 2x USB rear ports
• 2x USB internal headers
• Total 6 USB 2.0 Compliant / 1.1 Compliant

VGA • 1x VGA Port
Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

Chassis
Form Factor • 1U Rackmount
Model SC512F-280B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 14.5" (369mm)
Weight • 20 lbs (9.1kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansion Slots
PCI-X

• 1x 64-bit 133/100MHz PCI-X (3.3V) slots

Drive Bays
Internal

• 2x 3.5" internal drive bay

Peripheral Drives
DVD-ROM

• Slim 8x DVD, 24x CD, DVD-ROM drive

System Cooling
Fans • 2x 4cm 3-pin Nidec Counter-rotating Fans
Power Supply
  280W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50 - 60Hz, 5Amp
+5V • 18 Amp
+5V stand by • 2 Amp
+12V • 23Amp @ 100-140V, 27Amp @ 180-240V
-12V • 1.0 Amp
+3.3V • 15 Amp
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features • Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
• Hardware BIOS Virus protection
Operating Environment (System)
Operating Temperature Range

• 10 - 35°C (50° to 95° F)

Non-Operating Temperature Range • -40 - +70°C (-40° to 158° F)
Humidity Range • 8 - 90% non-condensing
Non-Operating Humidity Range

• 5 - 95% non-condensing
