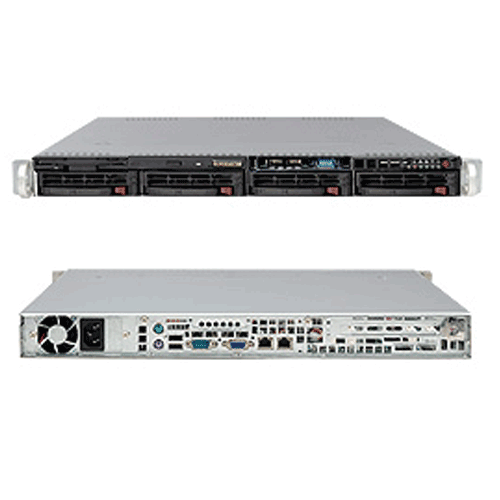

Supermicro SYS-6015C-MT / SYS-6015C-MTB 1U Rackmount with 520W High-efficiency Power Supply, Intel® 5100 (San Clemente) chipset, support 4x 3.5" Hot-swap SATA drive bays,
using
Super X7DCL-i Motherboard and CSE-813MTQ-520C Rackmount Chassis
Product SKU |
|
---|---|
SYS-6015C-MT | • SuperServer 6015C-MT (Beige) |
SYS-6015C-MTB | • SuperServer 6015C-MTB (Black) |
Motherboard |
|
---|---|
Super X7DCL-i |
Processor/Cache |
|
---|---|
CPU | • Dual 771-pin LGA Sockets |
System Bus | • 1333 / 1066 MHz system bus |
Operating System Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
---|---|
Memory Capacity |
• Six 240-pin DIMM sockets • Supports up to 48GB 667/ 533MHz DDR2 ECC Register Single/Dual Rank memory * • Dual channels memory bus • Memory must be populated in pairs |
Memory Type | • 667/533MHz Register DDR2 ECC Single/Dual Rank SDRAM 72-bit, 240-pin gold-plated DIMMs * |
DIMM Sizes | • 256MB, 512MB, 1GB, 2GB, 4GB, 8GB** |
Memory Voltage | • 1.8V only |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® 5100 (San Clemente) chipset |
SATA | • Intel ICH9R SB SATAII Controller • RAID 0, 1, 5, 10 support (Windows only) • RAID 0, 1, 10 support (Linux) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 / 1.5 • 200-pin IPMI slot (SIMLC) • (Optional: AOC-SIMLC) • NOTE: KVM-over-LAN supported w/ AOC-SIM1U+ - PCB 1.1A only |
Network Controllers | • Intel® 82573V & 82573L Gigabit Ethernet Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
Graphics | • XGI Z9 with 32 MB of video memory |
Super I/O | • Winbond 83627DHG chip |
Clock Generator | • CK505 chip |
Input/Output |
|
---|---|
Serial ATA | • Six Serial ATA ports • Four SATA hard drives supported |
IDE | • Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S) including CF card • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 • Compact Flash (40-pin connector, IDE 1, single channel) slot |
Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
LAN | • 2x RJ45 LAN ports |
USB | • 2x USB rear ports |
VGA | • 1x VGA Port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 1 Fast UART 16550 serial port |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix ® BIOS |
Bios Features | • Plug and Play (PnP) |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-813MTQ-520C |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 19.8" (503mm) |
Weight | • 31 lbs (14.1kg) |
Available Color | • Beige, Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED |
Expansion Slots |
|
---|---|
PCI-Express | • 1 (x8) PCI-e slot |
Drive Bays |
|
---|---|
Hot Swap | • 4x 3.5" Hot-swap SATA drive bays |
Peripheral Drives |
|
---|---|
DVD-ROM | • Slim DVD-ROM drive |
SAS/SATA Backplane |
|
---|---|
• 1x SAS / SATA Backplane |
System Cooling |
|
---|---|
Fans | • 4x 4cm 12,500 RPM fans |
Power Supply |
|
---|---|
520W AC to DC power supply w/ PFC | |
AC Voltage | • 100 - 240V, 50 - 60Hz, 7 - 3Amp |
+5V | • 20 Amp |
+5V standby | • 3 Amp |
+12V | • 39 Amp |
-12V | • 0.5 Amp |
+3.3V | • 16 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores,+1.8V, +3.3V, +5V, ±12V, +3.3V Stdby, +5 Stdby, VBAT, HT, Memory, Chipset • CPU Core 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
FAN | • Total of eight 4-pin fans • 8x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Support for 3-pins (w/o speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI |
LED | • CPU / System Overheat LED • Suspend-state Indicator LED |
Other Features | • Chassis intrusion detection • Chassis intrusion header • Chipkill Support |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant 5/6, Server Exemption |
Environmental Spec. | • Operating Temperature: 10° to 35°C (50° to 95°F)
|
