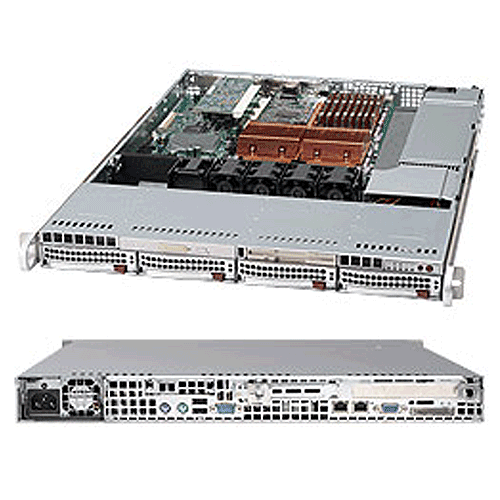

Supermicro 1U Rackmount SuperServer SYS-6015B-8B

Call for price.

SKU:SYS-6015B-8B

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 / 1333
MHz FSB
• Up to 32GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• Left Universal Slot (Full-height, Full-length): 1 64-bit 100MHz PCI-X OR
1 (x8) PCI-Express
• Right Universal Slot (Low-profile): 1 64-bit 100MHz PCI-X OR 1 (x8)
PCI-Express
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 4 x 3.5" Hot-swap U320 SCSI Drive Bays
• 560W High-efficiency Power Supply

Description

Details

SuperServer SYS-6015B-8V / SYS-6015B-8B 1U Rackmount

Supermicro SYS-6015B-8V / SYS-6015B-8B 1U Rackmount with 560W High-efficiency Power Supply, Intel® 5000P (Blackford) chipset, support 4x 3.5" Hot-swap U320 SCSI drive bays,
using Supermicro Super X7DBR-8 Motherboard and SC815S-560V(B) Rackmount Chassis

Product SKU
SYS-6015B-8V	• SuperServer 6015B-8V (Silver)
SYS-6015B-8B	• SuperServer 6015B-8B (Black)

Motherboard
	Super X7DBR-8

Processor/Cache
CPU	• Dual 771-pin LGA Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz • Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz
System Bus	• 1333 / 1066 / 667 MHz system bus
Operating System Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory
Memory Capacity	• Eight 240-pin DIMM sockets • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs
Memory Type	• 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 512 MB, 1GB, 2GB, 4GB
Memory Voltage	• 1.8V only • 1.5V (AMB)
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® 5000P (Blackford) chipset • MCH + ESB2
SCSI	• Adaptec AIC-7902 Controller • Dual-Channel Ultra320 SCSI (Host RAID only supports 4 drives) • 1 Internal Channel, 1 External Channel • Host RAID 0, 1, & 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • 200-pin IPMI SO-DIMM socket (SIMSO) • (Optional: AOC-SIMSO(+))
Network Controllers	• Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	• ATI ES1000 controller with 16 MB of video memory
Clock Generator	• CK410B
Super I/O	• Winbond 83627HG chip

Input/Output
IDE	• Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card • Compact Flash (40-pin connector, IDE 1, single channel) slot • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB, 2.88 MB
LAN	• 2x RJ45 LAN ports
USB	• 2x USB rear ports • 4x USB internal headers • Total 6 USB 2.0 Compliant / 1.1 Compliant
VGA	• 1x VGA Port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 1 Fast UART 16550 serial port • 1 Fast UART 16550 serial header

Chassis
Form Factor	• 1U Rackmount
Model	• SC815S-560V(B)

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 25.6" (650mm)
Weight	• 40 lbs (18.1kg)
Available Color	• Silver, Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots
Left Universal Slot	• 1 64-bit 100MHz PCI-X OR • 1 (x8) PCI-e Slot • Supports Full-height, Full-length Add-on Cards
Right Universal Slot	• 1 64-bit 100MHz PCI-X OR • 1 (x8) PCI-e Slot • Supports Low-profile Add-on Cards

Drive Bays
Hot Swap	• 4x 3.5" Hot-swap U320 SCSI drive bays

Peripheral Drives
DVD-ROM	• Slim 8x DVD, 24x CD, DVD-ROM drive

SCSI Backplane
	• 1U SCSI Backplane w/ SAF-TE

System Cooling
Fans	• 4x Cooling Fans
Shroud	• 1x Air Shroud

Power Supply
	560W AC power supply w/ PFC (20-pin)
AC Voltage	• 100 - 240V, 50 - 60Hz, 8.5 - 4Amp
+5V	• 25 Amp
+5V stand by	• 3 Amp
+12V	• 43.6 Amp
-12V	• 0.6 Amp
+3.3V	• 21 Amp

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.3 • PCI 2.2 • ACPI 1.0 • USB Keyboard support

Operating Environment / Compliance
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Operating Environment / Compliance

Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
