  • Supermicro 1U Rackmount 6015B-3RV

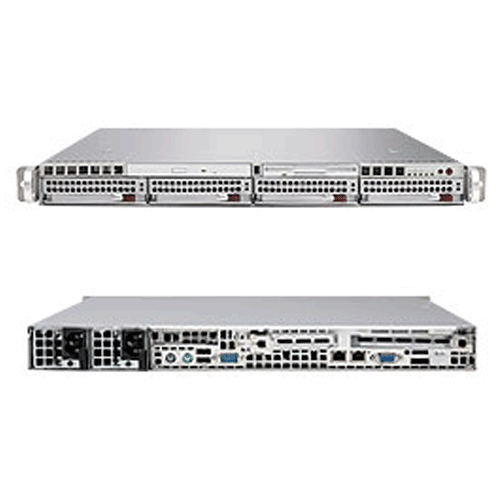

Supermicro 1U Rackmount SuperServer SYS-6015B-3RV

Call for price.
SKU:SYS-6015B-3RV

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Quad-Core or Dual-Core, with 667 / 1066 / 1333
   MHz FSB
• Up to 32GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM)
• Left Universal Slot (Full-height / Full-length): 1 64-bit 133MHz PCI-X OR
  1 (x8) PCI-Express
• Right Universal Slot (Low-Profile): 1 64-bit 100MHz PCI-X OR 1 (x8)
  PCI-Express
• Intel® (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller
• 4 x 3.5" Hot-swap SAS Drive Bays
• 650W Redundant High-efficiency Power Supply


Details

SuperServer SYS-6015B-3RV / SYS-6015B-3RB 1U Rackmount

Supermicro SYS-6015B-3RV / SYS-6015B-3RB 1U Rackmount with 650W Redundant High-efficiency Power Supply, Intel® 5000P (Blackford) chipset, support 4x 3.5" Hot-swap SAS
drive bays,using Supermicro Super X7DBR-3 Motherboard and SC815TQ-R650V(B) Rackmount Chassis


Product SKU
• SuperServer 6015B-3RV (Silver)
• SuperServer 6015B-3RB (Black)
Motherboard
        Super X7DBR-3
Processor/Cache
CPU

• Dual 771-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
• Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz

System Bus • 1333 / 1066 / 667 MHz system bus
Operating System Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM sockets
• Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
• Dual branch memory bus
• Memory must be populated in pairs
Memory Type • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 512 MB, 1GB, 2GB, 4GB
Memory Voltage • 1.8V only
• 1.5V (AMB)
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® 5000P (Blackford) chipset
• MCH + PXH-V + ESB2

SAS • Adaptec AIC-9410 Serial-Attached SCSI (SAS) Controller
• Dual-Channel SAS (1 internal, 1 external)
• Each SAS channel supports up to 4 SAS / SATA drives for a total of up to 8 SAS or SATA hard drives
• Host RAID 0, 1, & 10 support
RAID • Support for Zero-Channel RAID
• Optional: (Card not included)
• RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• 200-pin IPMI SO-DIMM socket (SIMSO)
• (Optional: AOC-SIMSO(+))
Network Controllers  • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics • ATI ES1000 controller with 16 MB of video memory
Super I/O • Winbond 83627HG chip
Input/Output
SAS • Eight SAS / SATA ports (4 internal, 4 external)
• Dual-Channel SAS controller
• Eight SAS / SATA hard drives supported
IDE • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card
• Compact Flash (40-pin connector, IDE 1, single channel) slot
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB
LAN • 2x RJ45 LAN ports
USB

• 2x USB rear ports
• 3x USB internal headers
• Total 5 USB 2.0 Compliant / 1.1 Compliant

VGA • 1x VGA Port
Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port / Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header

Chassis
Form Factor • 1U Rackmount
Model SC815TQ-R650V(B)
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Weight • 41 lbs (18.6kg)
Available Color • Silver, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansion Slots
Left Universal Slot

• 1 64-bit 133MHz PCI-X OR
• 1 (x8) PCI-e Slot
• Supports Full-height, Full-length Add-on Cards

Right Universal Slot • 1 64-bit 100MHz PCI-X OR
• 1 (x8) PCI-e Slot
• Supports Low-profile Add-on Cards
Drive Bays
Hot Swap

• 4x 3.5" Hot-swap SAS drive bays

Peripheral Drives
DVD-ROM

• Slim 8x DVD, 24x CD, DVD-ROM drive

SAS Backplane


• 1U SAS Backplane w/ SES2 Enclosure Management

System Cooling
Fans • 4x Cooling Fans
Shroud • 1x Air Shroud
Power Supply
  650W (1 + 1) Redundant AC-DC power supply w/ PFC
AC Voltage • 100 - 240V, 60-50Hz, 8-4 Amp
+5V stand by • 3 Amp
+12V • 54 Amp
With Power
Distributor
• +5V: 25 Amp
• +3.3V: 12 Amp
• -12V: 0.6 Amp
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features • Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
• Hardware BIOS Virus protection
Operating Environment / Compliance
Environmental Spec.

• Operating Temperature: 10° to 35°C (50° to 95°F)
• Non-operating Temperature: -40° to 70°C (-40° to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
