  • Supermicro 1U Rackmount SYS-6013P-TB

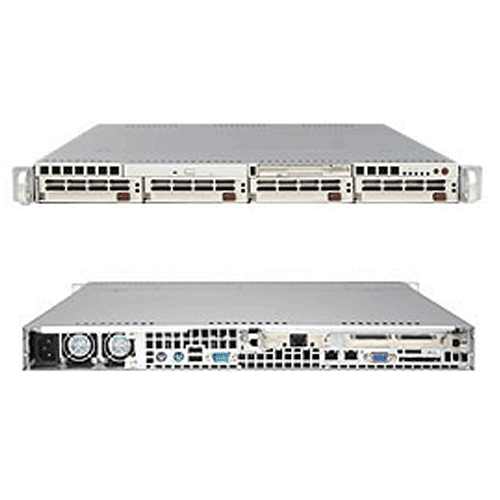

Supermicro 1U Rackmount SuperServer SYS-6013P-TB

Call for price.
SKU:SYS-6013P-TB

Quick Overview:

Key Features:
• Dual Intel® Xeon® Support up to 3.20 GHz
• Up to 12GB DDR 266/200 SDRAM
• 1 x 64-bit 133/100MHz Full-height, Full-length PCI-X eExpansion Slot
• 1 x 64-bit 66MHz Low-profile PCI-X Expansion Slot
• 2 x Intel 82546EB Gigabit Ethernet
• 4 x 3.5" Hot-swap Serial ATA Drive Bays
• 500W Coldswap Power Supply


Details

SuperServer SYS-6013P-T / SYS-6013P-TB 1U Rackmount

Supermicro SYS-6013P-T / SYS-6013P-TB 1U Rackmount with 500W Coldswap Power Supply,Intel® E7501 chipset, 4x 3.5"SATA Hot-swap drive bays, using Supermicro
Super X5DPR-TG2+ Motherboard and SC813T-500 Rackmount Chassis


Product SKU
• SuperServer 6013P-T (Beige)
• SuperServer 6013P-TB (Black)
Motherboard
        Super X5DPR-TG2+
Processor/Cache
CPU

• Dual mPGA604 ZIF Sockets
• Supports up to two Intel® Xeon® processor(s) with 1MB integrated Advanced Transfer Cache up to 3.20GHz

System Bus • 533MHz/400MHz system bus
System Memory
Memory Capacity • Six 184-pin DIMM sockets
• Supports up to 12 GB DDR266/200 memory
• Dual channel memory bus
• Memory must be populated in pairs
Memory Type • DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage • 2.5 V only
On-Board Devices
Chipset

• Intel® E7501 chipset
• MCH + ICH3-S + P64H2

IPMI • Support for Intelligent Platform Management Interface v.1.5 (Optional)
Serial ATA • Dual Silicon 3112A controllers
• Four Serial ATA ports
• RAID 0, 1 Supported
RAID • Support for Zero-Channel RAID ZCR Card (Card NOT included)
Network Controllers  • Dual Port Intel® 82546EB Gigabit Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Expansion Slots
  • 1x full-height, full-length 64-bit 133/100MHz PCI-X (3.3V) expansion slot (Riser card required) w/ VXB (Virtual Extended Bus) slot
• 1x low-profile slim 64-bit 66MHz PCI-X (3.3V) expansion slot (Riser card required)
Input/Output
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB • 2x USB ports
Serial Ports • 1x Fast UART 16550 serial ports
Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support

Keyboard / Mouse • PS/2 keyboard and mouse ports
System Bios
Bios Type • 4Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection











Chassis
Form Factor • 1U Rackmount
Model SC813T-500
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Weight • 42 lbs (19.0 kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
Ports • None
Drive Bays
Hot-swap

• 4x 3.5"SATA Hot-swap drive bays

Peripheral Drives
Floppy

• TEAC 3.5" 1.44MB Slim Floppy Drive

CD-ROM

• TEAC Slim 24x CD-ROM drive

SATA Backplane
  • 1x 1U Serial ATA backplane
System Cooling
Fans • 2x 10cm blower fans
Power Supply
  Cold-swappable 500W AC power supply module w/ PFC [ 20-pin, (8-pin=12V) ]
AC Voltage • 100 - 240V, 60-50Hz, 10 Amp
DC Output • • 5V + 3.3V ≤ 160W
+5V • 30.0 Amp
+5V stand by • 2.0 Amp
+12 • 39 Amp
-12V • 1.0 Amp
+3.3V • 21 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, 3.3V Standby
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V
• Adjustable CPU clock frequency ratio settings (via BIOS)

FAN • Total of three 3-pin fan headers
• 3x fans with tachometer monitoring
• Overheat backup fan connector
• Status monitor with firmware/software on/off control
Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
LED

• CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header
• Chipkill support
