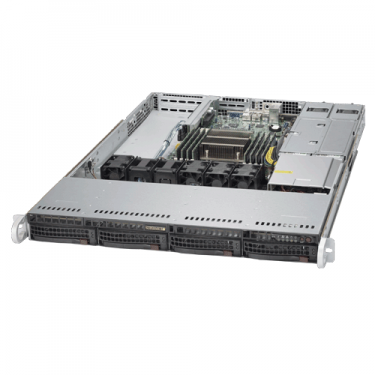

  • Supermicro 1U Rackmount SuperServer  SYS-5018R-WR - Angle
  • Supermicro 1U Rackmount SuperServer  SYS-5018R-WR - Top

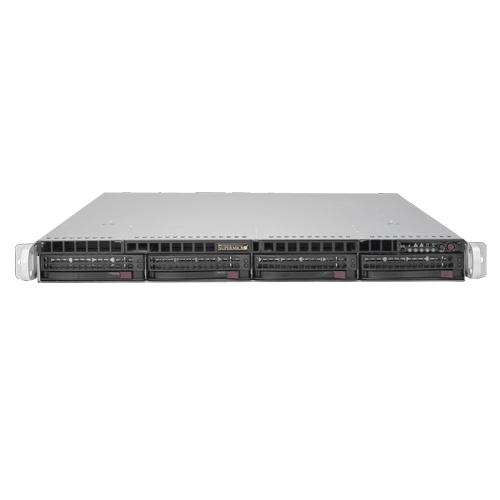

  • Supermicro 1U Rackmount SuperServer  SYS-5018R-WR - Front

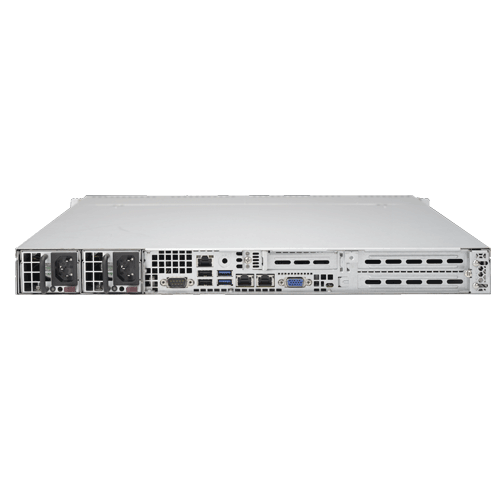

  • Supermicro 1U Rackmount SuperServer  SYS-5018R-WR - Rear

Supermicro 1U Rackmount SuperServer SYS-5018R-WR

Call for price.
SKU:SYS-5018R-WR

Quick Overview:

Key Features:
• Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Intel® C612 chipset
• 4x 3.5" Hot-swap SATA3 drive bays
• 1x Slim DVD-ROM drive bay
• Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
• 2x PCI-E 3.0 x16 FHFL, 1x PCI-E 3.0 x8 LPHL (3x AOC slots total)
• Intel® i350-AM2 Dual port GbE LAN
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• I/O ports: 1x VGA, 2x COM, 2x USB 3.0, 2x USB 2.0
• 500W Redundant Power Supplies Platinum Level (94%+)


Details

SuperServer SYS-5018R-WR

Supermicro 5018R-WR UP Xeon E5-2600 v3 500W(Redundant) 8 DIMM, up to 512GB DDR4 4x 3.5 SATA3 Cost-Effective 1U Rackmount Server Barebone

Product SKU
• SuperServer 5018R-WR (Black)
Motherboard
        Super X10SRW-F
Processor
CPU • Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family (up to 145W TDP **)
• Single Socket R3 (LGA 2011)
Core/Cache • Up to 22 Cores† / Up to 55MB† Cache
Note • † BIOS version 2.0 or above is required




** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity • 8x 288-pin DDR4 DIMM slots
• Up to 1TB ECC 3DS LRDIMM
• Up to 512GB ECC LRDIMM
• Up to 256GB ECC RDIMM
Memory Type • 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes • 3DS LRDIMM: 128GB
• LRDIMM: 64GB, 32GB
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps) via C612 controller
• RAID 0, 1, 10 support; 5 supported under Windows
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Connectivity

• Intel® i350-AM2 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics • ASPEED AST2400 BMC
Input/Output
SATA • 4x SATA3 (6Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports (2 rear)
• 2x USB 2.0 ports (2 rear)
Video • 1x VGA port
Serial Port /Header

• 1x Fast UART 16550 serial port
• 1x internal header

DOM

• 2x SuperDOM (Disk on Module) ports

PC Health Monitoring
Voltage • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
Fan • Total of 6 fan headers supporting up to 6 fans
• 6 fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID
Other Features

• Chassis intrusion detection
• Chassis intrusion header
• Chipkill support
• RoHS, Halogen Free

Chassis
Form Factor • 1U Rackmount
Model CSE-815TQ-R500WB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Gross Weight • 36 lbs (16.3 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansion Slots
PCI-Express

• Total of 3 Add-on card slots:
• 2x PCI-E 3.0 x16 (FH, FL) slots
• 1x PCI-E 3.0 x8 (LP, HL) slot

Drive Bays
Hot Swap • 4x 3.5" Hot-swap drive bays
Peripheral Drives
Optional • 1x slim DVD-ROM drive bay
Backplane
  • SAS/SATA HDD Backplane (SAS support requires optional SAS controller)
System Cooling
Fans

• 4x 40x28mm 4-pin PWM Cooling Fans

Power Supply
  ower Supply 500W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC
AC Input • 100-240V, 50-60Hz, 6.1-2.6A
DC Output • +5V standby: 3A
• +12V: 42A
DC Output With Power Distributor • +5V: 25A
• +3.3V: 25A
• -12V: 0.6A
Certification • Platinum Certified (94%)
System Bios
Bios Type • 8MB SPI Flash EEPROM with AMI BIOS
Bios Features • DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Operating Environment/Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
