Details

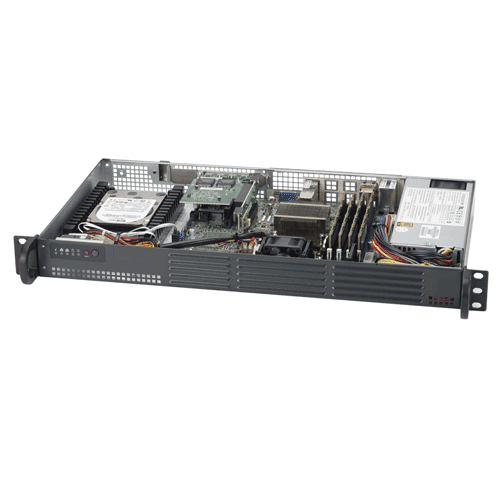

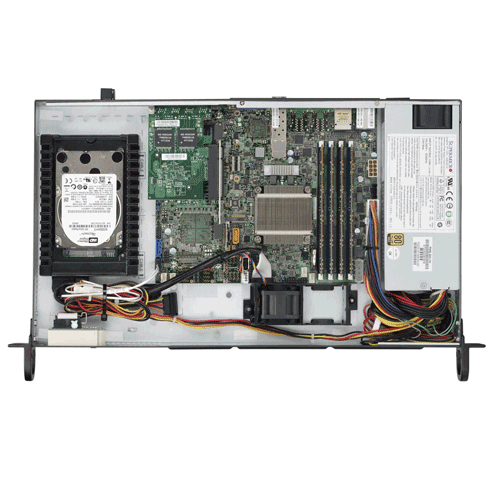

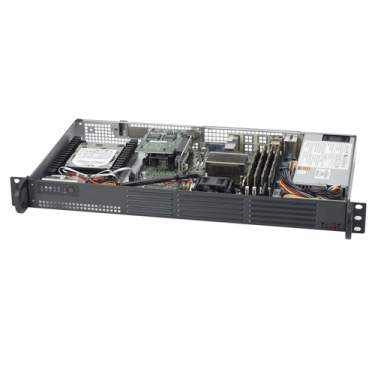

Supermicro SYS-5018D-LN4T 1U Rackmount with 200W redundant power supply, 1x 3.5" or up to 4x 2.5" Fixed drive bays, using Supermicro
Super X10SDV-2C-TP4F
Motherboard
and CSE-504-203B Rackmount Chassis
Product SKU |
|
---|---|
SYS-5018D-LN4T | • SuperServer 5018D-LN4T (Black) |
Motherboard |
|
---|---|
Super X10SDV-2C-TP4F |
Processor/Cache |
|
---|---|
CPU | • Intel® Pentium® processor D1508,
2.2GHz-2.6GHz; CPU TDP support 25W |
Cores/Cache | • 2 Cores, 4 Threads / 3MB |
System Memory |
|
---|---|
Memory Capacity |
• 4x DDR4 DIMM sockets • Supports up to 128GB DDR4 ECC RDIMM • Supports up to 64GB DDR4 ECC/non-ECC UDIMM |
Memory Type | • 1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM |
DIMM Sizes | • 32GB, 16GB, 8GB, 4GB |
Memory Voltage | • 1.2 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
---|---|
Chipset | • System on Chip |
SATA | • SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe |
Network Controllers | • Dual 10G SFP+ from D-1500 SoC • Dual 1GbE with Intel I210 |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Graphics | • Aspeed AST2400 |

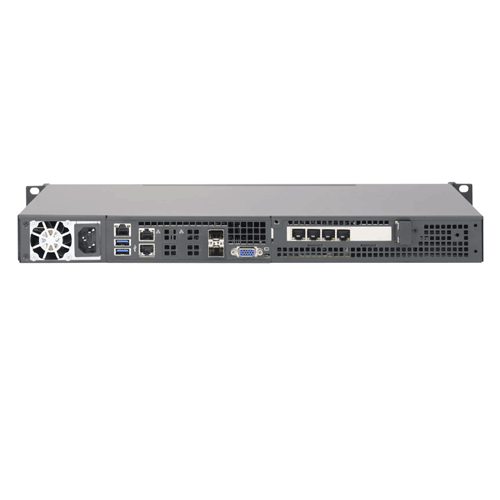

Input/Output |
|
---|---|
SATA | • 4x SATA3 (6Gbps) ports |
LAN | • 2x 10G SFP+ LAN ports • 2x 1GbE LAN ports • 1x Dedicated IPMI LAN port |
USB | • 2x USB 3.0 ports (rear) • 5x USB 2.0 ports (4 via headers, 1 Type A) |
Serial Port / Header | • 1x COM port (header) |
DOM | • 2x SuperDOM (Disk on Module) power connectors |
Video | • 1x VGA port |
TPM | • TPM 2.0 header
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-504-203B |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 9.8" (249mm) |
Weight | • 12 lbs (5.44 kg) |
Available Color | • Black |

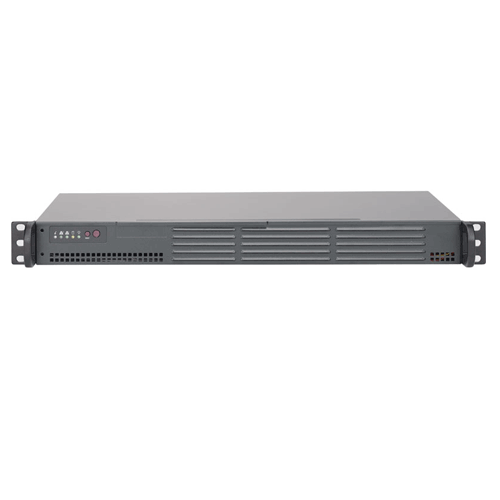

Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED • Information LED (temp., status) |
Expansion Slots |
|
---|---|
PCI-E | • 1x PCIe 3.0 x8 slots |
Drive Bays |
|
---|---|
HDD | • 1x 3.5" or up to 4x 2.5" Fixed drive bays |
System Cooling |
|
---|---|
Fans | • 1x 40x28mm 13K RPM 4-pin PWM fan |
Power Supply |
|
---|---|
200W Low Noise AC-DC power supply with PFC | |
AC Voltage | • 100 - 240V, 50-60Hz, 2.6 Amp Max |
+5V | • 8.0 Amp (max.) |
+5V standby | • 2.0 Amp (max.) |
+12V | • 16 Amp (max.) |
-12V | • 0.5 Amp (max.) |
+3.3V | • 8.0 Amp (max.) |
Certification | • Gold Certified |
System Bios |
|
---|---|
Bios Type | • 128Mb SPI Flash with AMI BIOS |
Bios Features | • PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature:
10°C to 40°C (50°F to 104°F) |
