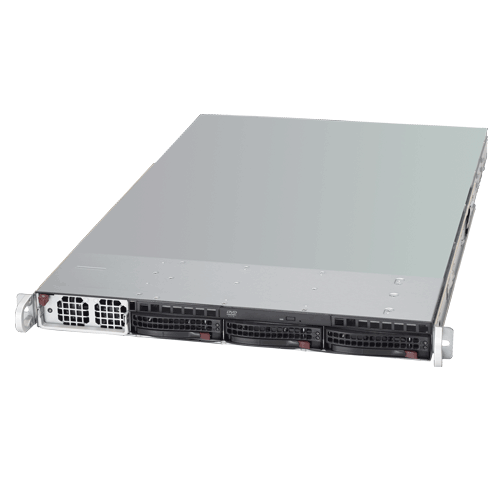

  • Supermicro 1U Rackmount SuperServer SYS-5017GR-TF - Angle

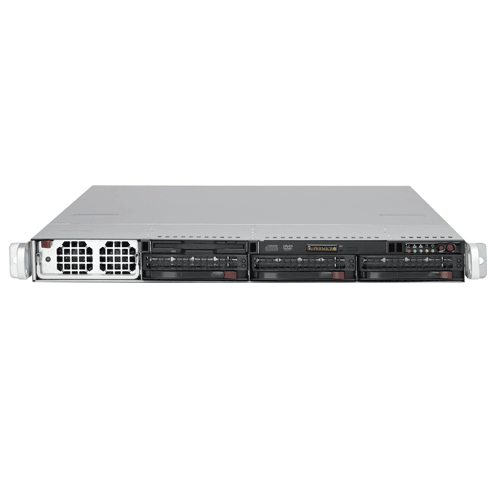

  • Supermicro 1U Rackmount SuperServer SYS-5017GR-TF - Front

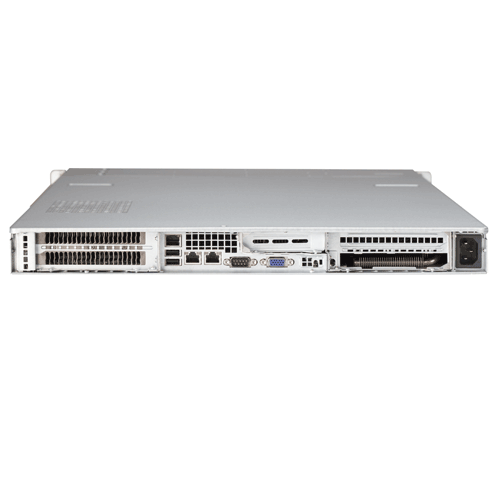

  • Supermicro 1U Rackmount SuperServer SYS-5017GR-TF - Rear

Supermicro 1U Rackmount SuperServer SYS-5017GR-TF

Call for price.
SKU:SYS-5017GR-TF

Quick Overview:

Key Features:
• Single socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
• Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
• 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards) 1x PCI-E 3.0 x8 low-profile slot
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Intel® i350 Dual-Port GbE Controller
• 3x 3.5" Hot-swap Drive Bays
• 1400W High-efficiency Power Supply Platinum Level (94%+) Digital Switching Control & PMBus 1.2
• 8x Counter rotating fans w/ optimal fan speed control
• Smart server management tools


Details

SuperServer SYS-5017GR-TF

Supermicro 5017GR-TF 1U Rackmount Barebone with 1400W High-efficiency Power Supply, Intel® C602 Chipset support 3x Hot-swap 3.5" Drive Bays using Supermicro X9SRG-F
Server Motherboard and CSE-818G-1K43B 1U Rackmount Chassis.

Product SKU
• SuperServer 5017GR-TF (Black)
Motherboard
        Super X9SRG-F
Processor/Cache
CPU • Single Socket R (LGA 2011)
• ntel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 12 cores and up to 130W)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
GPU/Xeon Support • M2075/M2090, up to 130W CPU at 35°C
• K10/K20/K20X (Kepler), up to 130W CPU at 35°C
System Memory
Memory Capacity • 8x 240-pin DDR3 DIMM slots
• Up to 512GB DDR3 ECC LRDIMM
• Up to 256GB DDR3 ECC Registered memory (RDIMM)
Memory Type • 1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602 Chipset
SATA • Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Connectivity

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics • Matrox G200eW 16MB DDR2 graphics
Super I/O • Nuvoton W83527
Input/Output
SATA • 2 SATA 3.0 ports (6Gbps)
• 4 SATA 2.0 ports (3Gbps)
LAN • 2 RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 6 USB 2.0 ports total (2 rear + 4 via headers)
Video • 1 VGA Connector
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Port/Header

• 1 Serial header

DOM

• 1 DOM (Disk on Module) power connector

System Bios
Bios Type • 64Mb SPI Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.3
• UEFI
• RTC (Real Time Clock) Wakeup







Chassis
Form Factor • 1U Rackmount
Model CSE-818G-1K43B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 28.2" (716mm)
Gross Weight • 41.4 lbs (18.8 kg)
Available Colors • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express

• 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards)
• 1x PCI-E 3.0 x8 slot for I.B. card
• AOC Compatibility Matrix

Drive Bays
Hot-Swap • 3x 3.5" Hot-swap drive bays
System Cooling
Fans • 8x counter-rotating fans with optimal fan speed control
Power Supply
  1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
• 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby • 6 Amp
+12V • 100 Amp/115 Vac
• 117 Amp/230 Vac
With Power Distributor • +5V: 14 Amp
Certification • Platinum Certified
PC Health Monitoring
CPU • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
• CPU Core 5-Phase-switching voltage regulator
FAN • Total of eight 4-pin PWM fans
• 8x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x Fan Connectors
• PSU I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI
LED • Power Fail / Overheat LED
• Suspend-state Indicator LED
• UID LED
Other Featues • SDDC Support
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
