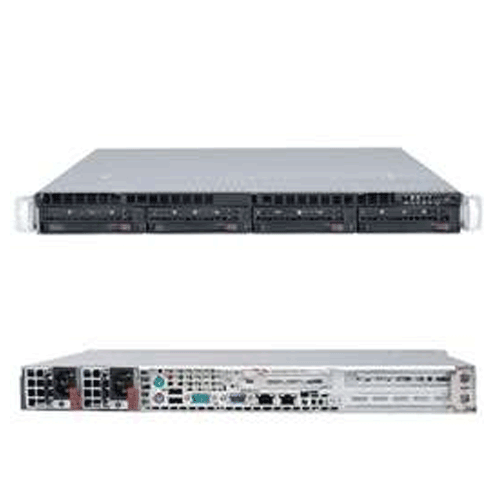

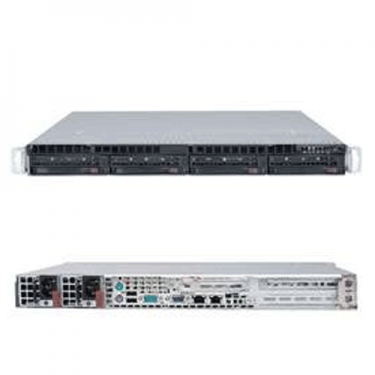

Supermicro SYS-5017C-URF 1U Rackmount with 500W High-efficiency Power Supply, 4x 3.5" Hot-swap SATA2 HDDs w/ RAID, using Super X9SPU-F and CSE-815TQ-R500UB
Rackmount Chassis
Product SKU |
|
---|---|
SYS-5017C-URF | • SuperServer 5017C-URF (Black) |
Motherboard |
|
---|---|
Super X9SPU-F |
Processor/Cache |
|
---|---|
CPU | • Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors * |
System Memory |
|
---|---|
Memory Capacity |
• 4x 240-pin DDR3 DIMM slots • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
Memory Type | • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 8GB, 4GB, 2GB, 1GB |
Memory Voltage | • 1.5 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
---|---|
Chipset | • Intel® C216 PCH chipset |
SATA | • 2x SATA 3.0 (3Gbps) w/ RAID 0, 1, 5, 10 |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
Network Controllers | • Intel® 82574L Dual Port Gigabit Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI) |
VGA | • Matrox G200eW 16MB DDR2 graphics controllers |
Input/Output |
|
---|---|
SATA | • 2 SATA 3.0 ports (6Gbps) • 4 SATA 2.0 ports (3Gbps) |
LAN | • 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 4 USB 3.0 ports total (via headers) • 4 USB 2.0 ports total (2 rear, 2 via header) |
VGA | • 1x VGA port |
Serial Port / Header | • 2x serial ports (1 rear, 1 header) |
Serial Port / Header | • 1x Fast UART 16550 serial port
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-815TQ-R500UB |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 25.6" (650mm) |
Weight | • 38 lbs (16.5kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Information LED (temp, status) |
Expansion Slots |
|
---|---|
PCI-E | • 1x PCI-E 3.0 x16 |
Drive Bays |
|
---|---|
Hot-swap | • 4x 3.5" Hot-swap SATA2 HDDs w/ RAID |
System Cooling |
|
---|---|
Fans | • 4x 4cm Counter-rotating PWM fans |
Power Supply |
|
---|---|
500W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC | |
AC Input | • 100-240V, 50-60Hz, 6.1-2.6A |
DC Output | • +5V standby: 3A • +12V: 42A |
Wit Power |Distributor |
• +5V: 25 Amp • +3.3V: 12 Amp • -12V: 0.6 Amp |
Certification | • Platinum Level Certified |
System Bios |
|
---|---|
Bios Type | • 64Mb SPI Flash EEPROM with AMI BIOS |
Bios Features | • Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.7.1 • UEFI • RTC (Real Time Clock) Wakeup |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature:
10°C to 40°C (50°F to 104°F) |
Regulatory (System) | • USA - UL, FCC • Canada - UL, CSA, ICES-003 (FCC) • Japan - VCCI • Europe - CE, CB • AUS/NZ - C-tick |
