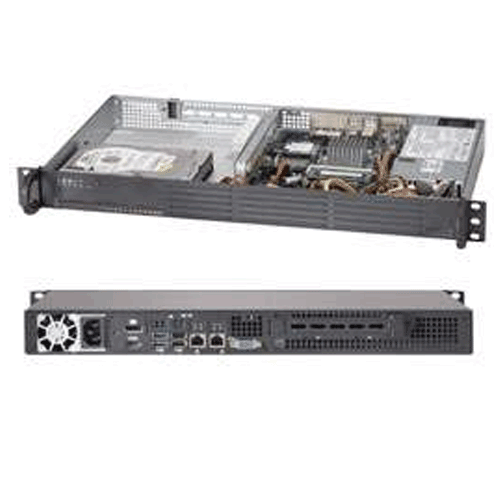

SuperServer SYS-5017A-EP
Supermicro 5017A-EP 1U Rackmount Barebone with 200W Low-noise power supply w/ PFC, Intel® NM10 Express Chipset support 2x 3.5" Fixed SATA3 HDD bays with RAID options
(2x 2.5" HDD optional) using Supermicro Super X9SCAA Atom Motherboard and CSE-504-203B 1U Rackmount Chassis.
(2x 2.5" HDD optional) using Supermicro Super X9SCAA Atom Motherboard and CSE-504-203B 1U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-5017A-EP | • SuperServer 5017A-EP (Black) |
Motherboard |
|
|---|---|
| Super X9SCAA | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Atom™ N2800 (2 Core) processor support |
System Memory |
|
|---|---|
| Memory Capacity |
• 2x 204-pin SO-DIMM slots • Supports up to 4GB of non-ECC DDR3 1066MHz (Single Channel • Some 1333MHz memory can be used, but memory capacity will operate at 1066MHz |
| Memory Type | • 1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs |
| DIMM Sizes | •2GB, 1GB |
| Memory Voltage | • 1.5V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® NM10 Express Chipset |
| SATA | • SATA 2.0 (3Gbps) |
| Network Controllers | • Intel® 82574L dual-port Gigabit Ethernet LAN ports |
| Audio | • Realtek ALC888S-VD2 HD Audio |
| Graphics | • Integrated Intel® GMA 3650 |
| USB 3. | • Renesas uPD720202 |
Input/Output |
|
|---|---|
| SATA | • 2x SATA 2.0 ports (3Gbps) |
| LAN | • 2x RJ45 LAN ports |
| USB | • 2x USB 3.0 ports (2 rear) • 6x USB 2.0 ports (2 rear) |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Port/Header | • 4x COM ports in headers (1 w/RS422/485) |
| VGA | • HDMI, Display Port, VGA, LVDS |
| Others | • Audio header
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-504-203B |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 9.8" (249mm) |
| Gross Weight | • 12 lbs (5.44 kg) |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Information LED (temp., status) |
Expansion Slot |
|
|---|---|
| PCI | • 1x 32-bit PCI slot (5.0V)** |
| PCI-E | • 1x Mini-PCI-E |
Drive Bays |
|
|---|---|
| HDD | • 2x 3.5" or 2x 2.5" internal SATA2 hard drive bays (optional) * |
Power Supply |
|
|---|---|
| 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | • 100 - 240V, 50-60Hz, 2.6 Amp Max |
| +5V | • 8.0 Amp (max.) |
| +5V standby | • 2.0 Amp |
| +12V | • 16 Amp (max.) |
| -12V | • 0.5 Amp (max.) |
| +3.3V | • 8.0 Amp (max.) |
System Bios |
|
|---|---|
| Bios Type | • 64Mb SPI Flash EEPROM with AMI UEFI BIOS |
| Bios Features | • Plug and Play (PnP) • DMI 2.3 4 x fans with tachometer monitoring • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant 6/6, Pb Free |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
