  • Supermicro 1U Rackmount SuperServer SYS-5017A-EF

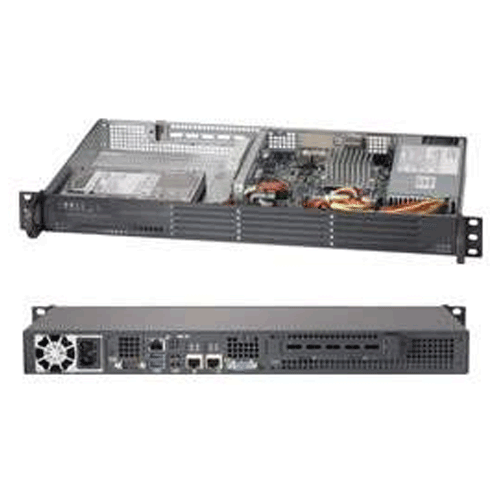

Supermicro 1U Rackmount SuperServer SYS-5017A-EF

Call for price.
SKU:SYS-5017A-EF

Quick Overview:

Key Features:
• Space-efficient, compact design
• Fast to build and deploy
• Gateway, file-sharing, security
• Intel® Atom™ Processor S1260; 2C/4T, 32nm (Centerton, 8.5W)
• Intel® System-on-Chip Design
• 2x 3.5" Fixed SATA3 HDD bays with RAID options (4x 2.5" HDD optional)*
• 1x PCI 32-bit 3.3V slot via riser**
• Up to 8GB ECC DDR3 1066/1333MHz on 1x SO-DIMM
• 2x GbE via Intel® i350AM2
• DOM power connector
• IPMI 2.0 on Dedicated LAN port
• 200W Low-noise power supply w/ PFC

Details

SuperServer SYS-5017A-EF

Supermicro 5017A-EF 1U Rackmount Barebone with 200W Low-noise power supply w/ PFC, Intel® Atom™ Processor S1260 support 2x 3.5" Fixed SATA3 HDD bays with RAID options
(4x 2.5" HDD optional) using Supermicro X9SBAA-F Atom Motherboard and CSE-504-203B 1U Rackmount.

Product SKU
• SuperServer 5017A-EF (Black)
Motherboard
        Super X9SBAA-F
Processor/Cache
CPU

• Intel® Atom™ S1260
• System-on-Chip
• 2.0GHz
• 2C/4T, 64-bit, VT-x, HT

System Memory
Memory Capacity • 1x 204-pin DDR3 SO-DIMM slots
• Supports up to 8GB DDR3 ECC memory
Memory Type • 1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 204-pin gold-plated DIMMs
DIMM Sizes • 8GB, 4GB, 2GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA • SATA 3.0 6Gbps with RAID 0, 1
Network Controllers

• Intel® i350AM2 Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201F PHY (dedicated IPMI)

IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Graphics • Onboard Matrox G200eW
Input/Output
SATA • 4x SATA 3.0 ports (6Gbps)
LAN • 2x RJ45 LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports (via header)
Serial Port/Header • 2x COM ports (1 rear, 1 header)
VGA

• 1x VGA port

























Chassis
Form Factor • 1U Rackmount
Model CSE-504-203B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 9.8" (249mm)
Gross Weight • 12 lbs (5.44 kg)
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Information LED (temp., status)
Expansion Slot
PCI • 1x PCI 32-bit 3.3V slot via riser**
Drive Bays
HDD • 2x 3.5" or 4x 2.5" internal SATA2 hard drive bays (optional) *
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V • 8.0 Amp (max.)
+5V standby • 2.0 Amp
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification • Gold Certified
System Bios
Bios Type • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
Bios Features • Plug and Play (PnP)
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Operating Environment / Compliance
RoHS • RoHS Compliant 6/6, Pb Free
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
