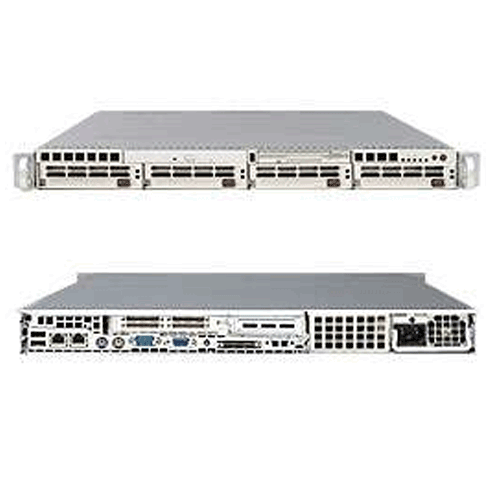

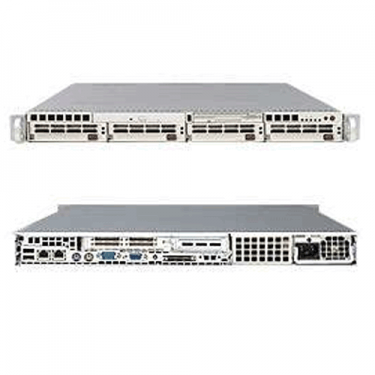

Supermicro SYS-5015P-T / SYS-5015P-TB 1U Rackmount with Intel E7230 (Mukilteo) Smithfield chipset, 4x 3.5" Hot-swap SATA drive bays, using Super PDSMP-i and SC816T-400
Rackmoun Chassis
Product SKU |
|
|---|---|
| SYS-5015P-T | • SuperServer 5015P-T (Beige) |
| SYS-5015P-TB | • SuperServer 5015P-TB (Black) |
Motherboard |
|
|---|---|
| Super PDSMP-i | |
Processor/Cache |
|
|---|---|
| CPU | • Single LGA775 ZIF Socket |
| System Bus | • 1066 / 800 / 533 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Four 240-pin DIMM sockets • Supports up to 8 GB of unbuffered, ECC DDR2 667/533/400MHz memory (Single / Dual Channel) |
| Memory Type | • DDR2 667/533/400MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2GB |
| Memory Voltage | • 1.8V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel E7230 (Mukilteo) Smithfield chipset • ICH7R + PXH + Intel® 82573V |
| Serial ATA | • Intel® ICH7R SATA controller built-in • RAID 0, 1, 5, 10 |
| IPMI | • 1U support for Intelligent Platform Management Interface v.2.0 (Optional: 1UIPMI-B) • 3rd LAN (Optional: AOC-1UIPMI-LANG) |
| Network Controllers | • Dual-port Intel® 82573V Gigabit PCI-Express Ethernet (Tekoa) • Supports 1000BASE-TX, RJ45 output |
| VGA | • On-board ATI RageXL graphics, 8MB |
| Super I/O | • Winbond 83627HF chip |
Expansion Slot |
|
|---|---|
| PCI-Express / PCI-X |
• 1 x Universal (SXB-E) slot for
[1 (x4) PCI-E Slot] OR [1x 64-bit PCI-X 133MHz slot] • 1 x 64-bit PCI-X 100MHz slot • 1 x 1U IPMI Slot |
Input/Output |
|
|---|---|
| Serial ATA | • Four Serial ATA ports (3 Gbps performance) • Four SATA hard drives supported |
| IDE | • One EIDE channel supports up to two UDMA IDE devices • IDE Master / Slave 2 ports • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
| LAN | • 2x RJ45 LAN port |
| USB | • 6x USB 2.0 compliant / 1.1 compatible • 4 internal USB headers • 2 rear ports |
| VGA | • 1x VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 2x Fast UART 16550 serial header
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC816T-400 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27" (685.8mm) |
| Weight | • 46 lbs (20.9kg) |
| Available Color | • Black, Beige |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power / Power Fail LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • UID LED |
| Ports | • N.A. |
Drive Bays |
|
|---|---|
| Hot swap | • 4x 3.5" Hot-swap SATA drive bays |
Peripheral Drives |
|
|---|---|
| Floppy | • TEAC 3.5" 1.44MB Slim Floppy Drive |
| DVD-ROM | • Panasonic Slim 8x DVD-ROM drive |
Backplane |
|
|---|---|
| • 1x SAS Hard Drive Backplane |
|
System Cooling |
|
|---|---|
| Fans | • 3x 4cm 12,000 RPM Nidec dual blade fans |
Power Supply |
|
|---|---|
| 400W AC power supply with PFC | |
| AC Voltage | • 100 - 240V, 50-60Hz, 6A-3A Amp |
| +5V | • 24 Amp |
| +5V stand by | • 4 Amp |
| +12V | • 32 Amp |
| -12V | • 0.6 Amp |
| +3.3V | • 21 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores (+1.8V, +3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT) |
| FAN | • Fan Speed Control • Total of four proprietary fan headers • 4 fans with tachometer monitoring • Status monitor with firmware speed control • Low noise fan speed control |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor (TM2) Support |
| LED | • CPU / System Overheat LED • +5V standby alert LED • Suspend-state indicator LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP) • DMI 2.3 support • PCI 2.2 • ACPI 1.0 • Hardware BIOS Virus protection • USB Keyboard support |
