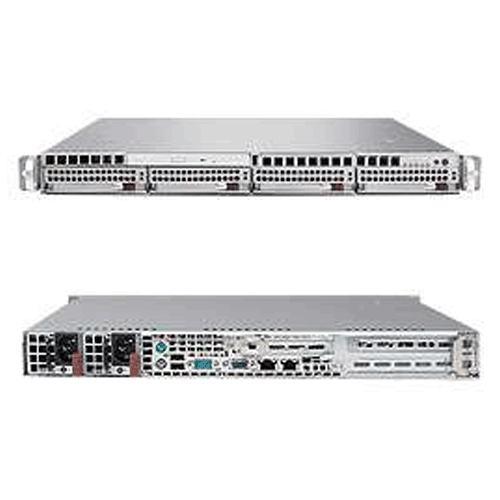

Supermicro 1U Rackmount SuperServer SYS-5015M-URV

Call for price.

SKU:SYS-5015M-URV

Quick Overview:

Key Features:
• Intel® Xeon® 3200 / 3000 Series, Core™ 2 Quad / Duo / Extreme Series,
   Pentium® D, Pentium Extreme Edition, Pentium 4 & Celeron D in LGA775
   Package (FSB 1066/800/533)
• Up to 8GB unbuffered ECC / non-ECC DDR2 667/533MHz SDRAM
• Left Slot (Full-height / Full-length): 1 Universal I/O (UIO) AND 1 (x8)
   PCI-Express
• Right Slot (Low-Profile): 1 (x4) PCI-Express (in x8 Slot)
• 2x Intel® 82573L PCI-e Gigabit LAN
• On board ATI ES1000 Graphics
• 4x 3.5" Hot-swap Drive Bays For customizable Storage
• 450W High-efficiency Redundant Power Supply

Description

Details

SuperServer SYS-5015M-URV / SYS-5015M-URB 1U Rackmount

Supermicro SYS-5015M-URV / SYS-5015M-URB 1U Rackmount with Intel 3010 (Mukilteo-2P) chipset, 4x 3.5" Hot-swap drive bays, using Super PDSMU and SC815TQ-R450UV
Rackmount Chassis

Product SKU
SYS-5015M-URV	• SuperServer 5015M-URV (Silver)
SYS-5015M-URB	• SuperServer 5015M-URB (Black)

Motherboard
	Super PDSMU

Processor/Cache
CPU	• Single LGA775 ZIF Socket • Supports a Quad-Core Intel® Xeon® 3200 series processor • Supports a Dual-Core Intel® Xeon® 3000 series processor • Supports a Quad-Core Intel® Core™2 Extreme series processor • Supports an Intel® Core™2 Quad series processor • Supports an Intel® Core™2 Duo series processor • Supports an Intel® Pentium® processor E2000 series • Supports a Dual-Core Intel® Pentium® D processor • Supports an Intel® Pentium® Extreme Edition processor • Supports an Intel® Pentium® 4 processor • Supports an Intel® Celeron® processor E1000 series • Supports an Intel® Celeron® processor 400 series • NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor
System Bus	• 1066 / 800 / 533 MHz system bus

Processor/Cache

CPU

• Single LGA775 ZIF Socket
• Supports a Quad-Core Intel® Xeon® 3200 series processor
• Supports a Dual-Core Intel® Xeon® 3000 series processor
• Supports a Quad-Core Intel® Core™2 Extreme series processor
• Supports an Intel® Core™2 Quad series processor
• Supports an Intel® Core™2 Duo series processor
• Supports an Intel® Pentium® processor E2000 series
• Supports a Dual-Core Intel® Pentium® D processor
• Supports an Intel® Pentium® Extreme Edition processor
• Supports an Intel® Pentium® 4 processor
• Supports an Intel® Celeron® processor E1000 series
• Supports an Intel® Celeron® processor 400 series

• NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor

System Bus

• 1066 / 800 / 533 MHz system bus

System Memory
Memory Capacity	• Four 240-pin DIMM sockets • Supports up to 8 GB of memory (Single / Dual Channel)
Memory Type	• DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes	• 256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage	• 1.8V only

On-Board Devices
Chipset	• Intel 3010 (Mukilteo-2P) chipset • ICH7R + PXH + Intel® 82573V + Intel® 82573L
Serial ATA	• Intel® ICH7R SATA controller built-in (3 Gbps) • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support • SIMSO Slot - Supermicro Intelligement Management • (Optional: AOC-SIMSO+) • NOTE: Must use Dedicated LAN for IPMI function
Network Controllers	• 2x Single-port Gigabit PCI-Express Ethernet Controllers • Intel® 82573V + Intel® 82573L • Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output
VGA	• On-board ATI ES1000 (16MB) graphics
Super I/O	• Winbond 83627HG chip
Clock Generator	• CK410

Expansion Slots
Left Slots	• 1 (x8) PCI-Express Slot (via Riser Card) • 1 Universal I/O (UIO) Slot (via Riser Card)
Right Slot	• 1 (x4) PCI-Express (in x8) Slot (via Riser Card)

Input/Output
Serial ATA	• Four Serial ATA ports (3 Gbps performance) • Four SATA hard drives supported
IDE	• One EIDE channel supports up to two UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB
LAN	• 2x RJ45 LAN ports
USB	• Up to 6x USB 2.0 / 1.1 compliant ports • 2 rear ports • 2 internal header for 4 USB 2.0/1.1 ports
VGA	• 1x VGA port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 1x Fast UART 16550 serial port • 1x internal header

Chassis
Form Factor	• 1U Rackmount
Model	• SC815TQ-R450UV

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 25.6" (650mm)
Weight	• 40 lbs (18.1 kg)
Available Color	• Silver,Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power Status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • UID LED
Ports	• 2x USB & DB9 COM port tray • (Optional - in place of floppy drive)

Drive Bays
Hot-swap	• 4x 3.5" Hot-swap drive bays

System Cooling
Fans	• 3x Counter-rotating Fans

Power Supply
	450W (1 + 1) Redundant AC power supply w/ PFC
AC Voltage	• 100 - 240V, 60-50Hz, 6.3-3.2 Amp
+5V	• 25 Amp
+5V stand by	• 3 Amp
+12V	• 37 Amp
-12V	• 0.6 Amp
+3.3V	• 25 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores (+1.5V, +1.8V, +3.3V, +5, ±12V, +5V Standby, VBAT) • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V
FAN	• Total of six 4-pin fan headers • 6x fans with tachometer monitoring • Status monitor with firmware / software speed control • Status monitor for on/off control • Support 3-pin fans (with speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connector
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor (TM2) Support • PECI
LED	• CPU / System Overheat LED • Standby alert LED
Other Features	• Chassis intrusion detection • Chassis intrusion header

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix BIOS®
Bios Features.	• Plug and Play (PnP) • DMI 2.3 support • PCI 2.2 • ACPI 1.0 • SMBIOS 2.3 • USB Keyboard support

System Bios

Bios Type

• 8Mb Flash EEPROM with Phoenix BIOS®

Bios Features.

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• SMBIOS 2.3
• USB Keyboard support
