  • Supermicro 1U Rackmount SuperServer SYS-5015M-NiB

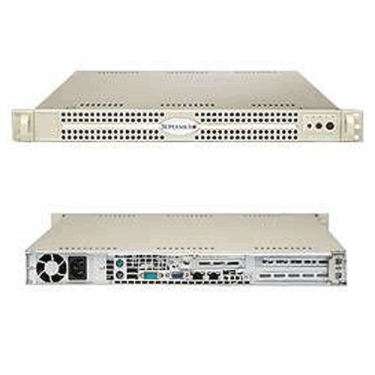

Supermicro 1U Rackmount SuperServer SYS-5015M-NiB

Call for price.
SKU:SYS-5015M-NiB

Quick Overview:

Key Features:
• Xeon® 3200/3000 Series (Conroe) in LGA775 Package
   (FSB 1066/800/533)
• Up to 8GB unbuffered ECC / non-ECC DDR2 667/533MHz SDRAM
• Left Slot (Full-height / Full-length): 2 (x8) PCI-Express
• Right Slot (Low-Profile): 1 (x4) PCI-Express
• 2x Intel® 82573L PCI-e Gigabit LAN
• On board ATI ES1000 Graphics
• 3x Internal Drive Bays For Customizable Storage
• 280W Power Supply


Details

SuperServer SYS-5015M-Ni / SYS-5015M-NiB 1U Rackmount

Supermicro SYS-5015M-Ni / SYS-5015M-NiB 1U Rackmount with Intel 3010 (Mukilteo-2P) chipset, 3x Internal Drive Bays, using Super PDSMU and SC812L-280U Rackmount
Chassis


Product SKU
• SuperServer 5015M-Ni (Beige)
• SuperServer 5015M-NiB (Black)
Motherboard
        Super PDSMU
Processor/Cache
CPU

• Single LGA775 ZIF Socket
• Supports a Quad-Core Intel® Xeon® 3200 series processor
• Supports a Dual-Core Intel® Xeon® 3000 series processor
• Supports a Quad-Core Intel® Core™2 Extreme series processor
• Supports an Intel® Core™2 Quad series processor
• Supports an Intel® Core™2 Duo series processor
• Supports an Intel® Pentium® processor E2000 series
• Supports a Dual-Core Intel® Pentium® D processor
• Supports an Intel® Pentium® Extreme Edition processor
• Supports an Intel® Pentium® 4 processor
• Supports an Intel® Celeron® processor E1000 series
• Supports an Intel® Celeron® processor 400 series

• NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor

System Bus • 1066 / 800 / 533 MHz system bus
System Memory
Memory Capacity • Four 240-pin DIMM sockets
• Supports up to 8 GB of memory (Single / Dual Channel)
Memory Type • DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage • 1.8V only
On-Board Devices
Chipset

• Intel 3010 (Mukilteo-2P) chipset
• ICH7R + PXH + Intel® 82573V + Intel® 82573L

Serial ATA  • Intel® ICH7R SATA controller built-in (3 Gbps)
• RAID 0, 1, 5, 10 support (Windows Only)
• RAID 0, 1, 10 support (Linux)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support
• SIMSO Slot - Supermicro Intelligement Management
• (Optional: AOC-SIMSO+)
• NOTE: Must use Dedicated LAN for IPMI function
Network Controllers  • 2x Single-port Gigabit PCI-Express Ethernet Controllers
• Intel® 82573V + Intel® 82573L
• Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output
VGA • On-board ATI ES1000 (16MB) graphics
Super I/O  • Winbond 83627HG chip
Clock Generator  • CK410
Expansion Slots
Left Slot • 2 (x8) PCI-Express Slot (via Riser Card) (Full-height / Full-length)
UNiersal Slot • 1 (x4) PCI-Express (in PCI-E x8 Slot) (Low-profile)
Input/Output
Serial ATA • Four Serial ATA ports (3 Gbps performance)
• Four SATA hard drives supported
IDE • One EIDE channel supports up to two UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB
LAN • 2x RJ45 LAN ports
USB • Up to 6x USB 2.0 / 1.1 compliant ports
• 2 rear ports
• 2 internal header for 4 USB 2.0/1.1 ports
VGA

• 1x VGA port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Port

• 1x Fast UART 16550 serial port
• 1x internal header

Chassis
Form Factor • 1U Rackmount
Model • SC812L-280U
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (426mm)
Depth • 25.6" (650mm)
Weight • 37 lbs (16.8kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
• UID button

LEDs • Power Status LED
• Hard drive activity LED
• 2x Network activity LEDs
• Universal Information LED
Drive Bays
Hot-swap

• 3x Internal Drive Bays

System Cooling
Fans • 2x Blower Fans
Power Supply
  280W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50 - 60Hz, 5Amp
+5V • 18 Amp
+5V stand by • 2.0 Amp
+12V • 23Amp @ 100-140V, 27Amp @ 180-240V
-12V • 1.0
+3.3V • 15.0 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores (+1.5V, +1.8V, +3.3V, +5, ±12V, +5V Standby, VBAT)
• CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V
FAN • Total of six 4-pin fan headers
• 6x fans with tachometer monitoring
• Status monitor with firmware / software speed control
• Status monitor for on/off control
• Support 3-pin fans (with speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connector
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor (TM2) Support
• PECI
LED • CPU / System Overheat LED
• Standby alert LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
System Bios
Bios Type

• 8Mb Flash EEPROM with Phoenix BIOS®

Bios Features.

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• SMBIOS 2.3
• USB Keyboard support
