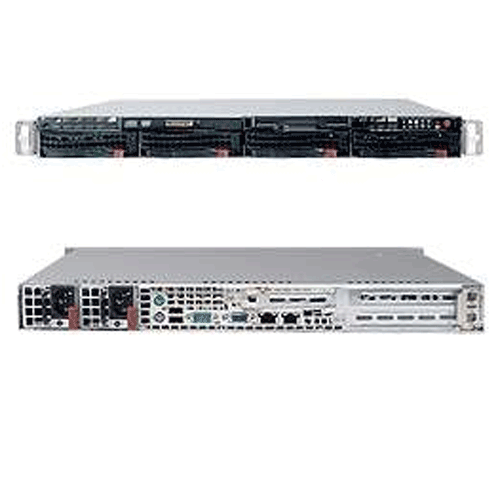

Supermicro 1U Rackmount SuperServer SYS-5015B-URB

More Views

  • Supermicro 1U Rackmount SuperServer SYS-5015B-URB

Supermicro 1U Rackmount SuperServer SYS-5015B-URB

Call for price.
SKU:SYS-5015B-URB

Quick Overview:

Key Features:
• Intel® Xeon® 3000 Sequence and Core™ 2 Extreme / Quad / Duo Series in
   LGA775 Package (FSB 1600/1333/1066/800 MHz)
• Up to 8GB unbuffered non-ECC DDR3 1333/1066/800 SDRAM or up to
   4 GB Non-ECC 1600MHz XMP DDR3 memory
• Left Slot (Full-height / Full-length): 1 Universal I/O (UIO) AND 1 (x8)
   PCI-Express
• Right Slot (Low-Profile): 1 (x4) PCI-Express (in x8 Slot)
• Intel® 82573V + Intel® 82573L PCI-e Gigabit Controllers
• On board ATI ES1000 Graphics
• 4x 3.5" Hot-swap Drive Bays For customizable Storage
• 450W High-efficiency Redundant Power Supply


Details

SuperServer SYS-5015B-URB 1U Rackmount

Supermicro SYS-5015B-URB 1U Rackmount with Intel® X48 chipset, 4x 3.5" Hot-swap drive bays, using Super X7SBU and CSE-815TQ-R450UB Rackmount Chassis


Product SKU
SYS-5015B-URB • SuperServer 5015B-URB (Black)
Motherboard
        Super X7SBU
Processor/Cache
CPU

• Single LGA775 ZIF Socket
• Supports Quad-Core Intel® Xeon® X3300/X3200 series
• Supports Dual-Core Intel® Xeon® E3100/3000 series
• Supports Intel® Xeon® processor L3360 and L3110 series
• Supports Intel® Core™2 Quad Q9000/Q8000/Q6000 series
• Supports Intel® Core™2 Duo E8000/E7000/E6000/E4000 series
• Supports Intel® Pentium® E5000/E2000 series
• Supports Intel® Celeron® E1000 and 400 series

• NOTE: 1600MHz CPU has to use 1600 MHz XMP Memory
System Bus • 1600 / 1333 / 1066 / 800 MHz system bus
System Memory
Memory Capacity • Four 240-pin DIMM sockets
• Supports up to 8 GB of unbuffered, non-ECC DDR3 1333/1066/800MHz memory (Dual Channel) or up to 4 GB Non-ECC 1600MHz XMP DDR3 memory
Memory Type • DDR3 1333/1066/800MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs or Non-ECC 1600MHz XMP DDR3 memory
DIMM Sizes • 256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage • Dynamic (1.5V to 1.9V)
On-Board Devices
Chipset

• Intel X48 chipset
• ICH9R + Intel® 82573V + Intel® 82573L
Serial ATA  • Intel® ICH9R SATA controller built-in (3 Gbps)
• RAID 0, 1, 5, 10 (Windows)
• RAID 0, 1, 10 (Linux)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support
• SIMSO Slot - Supermicro Intelligement Management
• (Optional: AOC-SIMSO-HTC, AOC-SIMSO+)

• NOTE: AOC-SIMSO+ must use Dedicated LAN for KVM-over-LAN function
Network Controllers  • 2x Single-port Gigabit PCI-Express Ethernet Controllers
• Intel® 82573V + Intel® 82573L
• Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output
VGA • On-board ATI ES1000 (32MB) graphics
Super I/O  • Winbond 83627HG chip
Clock Generator  • IDTCV183-1
Input/Output
Serial ATA • Six Serial ATA ports (3 Gbps performance)
• Six SATA hard drives supported
• External SATA supported
IDE • One EIDE channel supports up to two UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB
LAN • 2x RJ45 LAN ports
USB • Up to 8x USB 2.0 / 1.1 compliant ports
• 2 rear ports + 2 Type A connectors + 2 internal headers (4 ports)
VGA

• 1x VGA port
Keyboard / Mouse

• PS/2 keyboard and mouse ports
Serial Port / Header

• 2x Fast UART 16550 serial port
• 1x internal header
System Bios
Bios Type • 16Mb Flash EEPROM with SPI BIOS
Bios Features

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0 / 2.0 (S3 Optional)
• USB Keyboard support
• SMBIOS 2.3
• RTC (Real Time Clock) Wakeup
Chassis
Form Factor • 1U Rackmount
Model • CSE-815TQ-R450UB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Weight • 40 lbs (18.1kg)
Available Color • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power Status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• UID LED
Ports • 2x USB & DB9 COM port tray
• (Optional - in place of floppy drive)
Drive Bays
Hot-swap

• 4x 3.5" Hot-swap drive bays
System Cooling
Fans • 3x Counter-rotating Fans
Power Supply
  450W (1 + 1) Redundant AC power supply w/ PFC
AC Voltage • 100 - 240V, 60-50Hz, 6.3-3.2 Amp
+5V • 25 Amp
+5V stand by • 3 Amp
+12V • 37 Amp
-12V • 0.6 Amp
+3.3V • 25 Amp
PC Health Monitoring
CPU • Monitors for CPU Cores ( +1.8V, +3.3V, +5, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset)
• CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V
FAN • Total of six 4-pin fan headers
• 6x fans with tachometer monitoring
• Status monitor with firmware / software speed control
• Support 3-pin fans (without speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connector
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• PSU I2C temperature sensing logic
• Thermal Monitor (TM2) Support
• PECI
LED • CPU / System Overheat LED
• Suspend-state indicator LED
• +5 Standby power alert LED
• UID / Remote UID
Other Features • Chassis intrusion detection
• Chassis intrusion header
Operating Environment / Compliance
RoHS

• RoHS Compliant 5/6, Server Exemption
Environmental Spec.

• Operating Temperature: 10°C to 40°C (50°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
