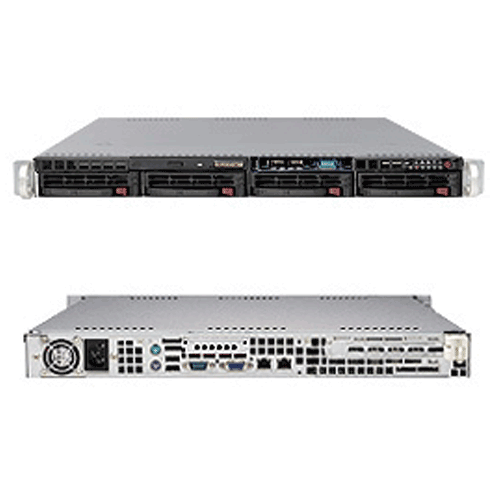

Supermicro SYS-5015B-M3B Rackmount with Intel® 3210 chipset, 4x 3.5" SAS Hot-swap drive bays, using Super X7SB3-F and CSE-813MTQ-280C(Chassis not sold separately)
Rackmount Chassis
Product SKU |
|
---|---|
SYS-5015B-M3B | • SuperServer 5015B-M3B (Black) |
Motherboard |
|
---|---|
Super X7SB3-F |
Processor/Cache |
|
---|---|
CPU | • Single LGA775 ZIF Socket |
System Bus | • 1333 / 1066 / 800 MHz system bus |
System Memory |
|
---|---|
Memory Capacity |
• Four 240-pin DIMM sockets • Supports up to 8 GB of memory (Dual Channel) |
Memory Type | • DDR2 800/667MHz unbuffered ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs |
DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2GB, 4GB |
Memory Voltage | • 1.8V only |
On-Board Devices |
|
---|---|
Chipset | • Intel 3210 chipset |
SAS | • LSI SAS1068E |
Serial ATA | • Intel® ICH9 SATA2 (3 Gbps) controller built-in |
IPMI | • On board IPMI with dedicated LAN • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Winbond® WCPM450 |
Network Controllers | • 2x Single-port Gigabit PCI-Express Ethernet Controllers • Intel® 82574L • Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output |
VGA | • On-board Winbond® integrated Graphics |
Super I/O | • Winbond 83627DHG chip |
Clock Generator | • CK505 |
Input/Output |
|
---|---|
SAS | • 8 SAS / SATA ports |
Serial ATA | • Two Serial ATA ports (3 Gbps performance) • Two SATA hard drives supported |
Floppy | • 1 Floppy controller; 1.44 MB |
LAN | • 2x RJ45 LAN ports |
USB | • Up to 8x USB 2.0 / 1.1 compliant ports • 2 rear ports • 2 internal headers + 2 on-board |
VGA | • 1x VGA port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 1x Fast UART 16550 serial port |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix ® BIOS |
Bios Features |
• Plug and Play (PnP) |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-813MTQ-280C (Chassis not sold separately) |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 19.8" (503mm) |
Weight | • 38 lbs (17.2kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power Status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
Ports | • 2x Front USB Ports • 1x Serial COM Port |
Drive Bays |
|
---|---|
Hot-swap | • 4x 3.5" SAS Hot-swap drive bays |
System Cooling |
|
---|---|
Fans | • 4x Cooling Fans |
Power Supply |
|
---|---|
280W AC power supply w/ PFC | |
AC Voltage | • 100 - 240V, 50 - 60Hz, 5Amp |
+5V | • 18 Amp |
+5V standby | • 2.0 Amp |
+12V | • 23Amp @ 100-140V, 27Amp @ 180-240V |
-12V | • 1.0 Amp |
+3.3V | • 15 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores ( +1.8V, +3.3V, +5, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset) • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V • Adjustable CPU clock frequency ratio |
FAN | • Total of six 4-pin fan headers • 6x fans with tachometer monitoring • Status monitor with firmware / software speed control • Status monitor for on/off control • Support 3-pin fans (without speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor 2 (TM2) support • PECI |
LED | • CPU / System Overheat LED • +5V Standby alert LED |
Other Features | • Chassis intrusion detection • Chassis intrusion header |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant 6/6, Pb Free |
Environmental Spec. | • Operating Temperature:
10°C to 40°C (50°F to 104°F)
|
