SuperServer SYS-5015A-EHF-D525

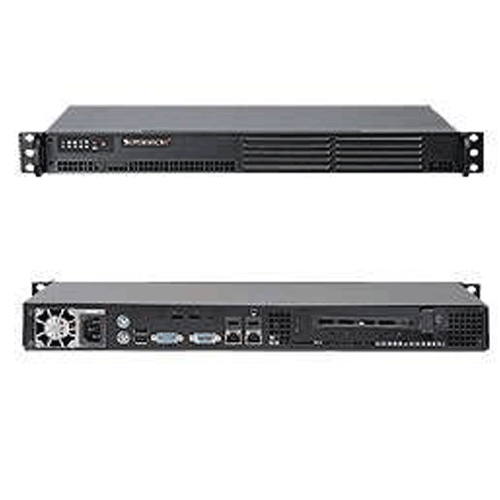

Supermicro 5015A-EHF-D525 1U Rackmount SuperServer Barebone
Product SKU |
|
---|---|
SYS-5015A-EHF-D525 | • SuperServer 5015A-EHF-D525(Black) |
Motherboard |
|
---|---|
Super X7SPE-HF-D525 |
Processor/Cache |
|
---|---|
CPU | • Intel® Atom™ D525 processor |
System Bus | • DMI |
System Memory |
|
---|---|
Memory Capacity |
• Two 204-pin SO-DIMM slots • Supports up to 4 GB of unbuffered, non-ECC DDR3 800/667MHz SO-DIMM (Single Channel) |
Memory Type | • DDR3 800/667MHz unbuffered, non-ECC SO-DIMM |
DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2GB |
Memory Voltage | • 1.5V only |
On-Board Devices |
|
---|---|
Chipset | • Intel ICH9R • Intel 82574L |
SATA | • Intel ICH9R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Windows) • RAID 0, 1, 10 support (Linux) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
Network Controllers | • 2x Intel 82574L Gigabit Ethernet |
Graphics | • Onboard Matrox G200eW video |
Super I/O | • Winbond 83627DHG chip |
Input/Output |
|
---|---|
Serial SATA | • 6 Serial ATA ports ( 3Gbps ) |
LAN | • 2x RJ45 LAN port |
USB | • 8x USB 2.0 / 1.1 compatible • 2 rear + 3 headers (5 ports) + 1 Type A connector |
Keyboard/Mouse | • PS/2 keyboard and mouse ports |
Serial Port | • 1x Fast UART 16550 serial port • 1x Serial Header |
VGA | • D-Sub 15 |
Power Port | • 1x DOM Power connector
|
System Bios |
|
---|---|
Bios Type | • 8Mb SPI Flash EEPROM with AMI BIOS |
Bios Features |
• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 / 3.0 • USB Keyboard support • SMBIOS 2.3 |
Drive Bays |
|
---|---|
Internal Bay |
• 1x 3.5" Internal Drive Bay (Standard)
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-502L-200B |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 9.8" (249mm) |
Gross Weight | • 10 lbs (4.5kg) |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
I/O Ports | • Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) |
Expansion Slots |
|
---|---|
PCI-Express |
• 1 (x4) PCI-E 2.0 slot (in x16 slot) |
Power Supply |
|
---|---|
200W Low Noise AC-DC power supply with PFC | |
AC Voltage | • 100 - 240V, 50-60Hz, 3-1.5 Amp Max |
+5V | • 16.0 Amp |
+5V standby | • 2.0 Amp |
+12V | • 15.0 Amp |
-12V | • 0.8 Amp |
+3.3V | • 17.0 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, VBAT, Memory, Chipset • CPU Core 1-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V |
FAN | • Total of four 4-pin fan headers • 4 x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on / off control • Support 3-pin fans (without speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan conn. |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 4 x Fan Connectors • I2C temperature sensing logic • Thermal Monitor 2 (TM2) Support |
LED | • CPU / System Overheat LED |
Other Features | • Chassis intrusion Detection • Chassis intrusion Header • SDDC Support |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant 6/6, Pb Free |
Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°to 70°C • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
