SuperServer SYS-1027R-73DAF

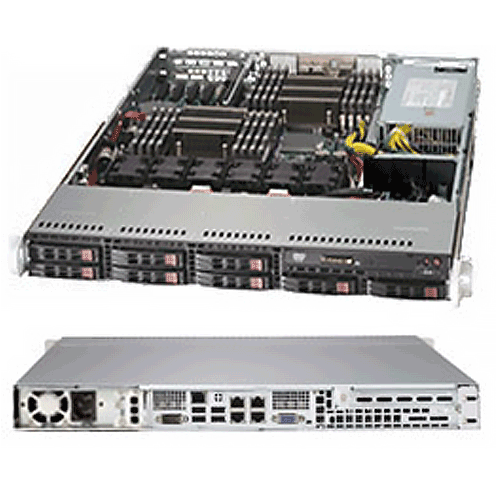

Supermicro 1027R-73DAF 1U Rackmount Server Barebone with 560W High-efficiency Power Supply Gold Level Certified, Intel® C602J chipset, 8x 2.5" Hot-swap SAS/SATA HDD Bays
using Supermicro Super X9DRD-7LN4F Supermciro Server Motherboard and CSE-113TQ-563CB 1U Rackmount Chassis.
using Supermicro Super X9DRD-7LN4F Supermciro Server Motherboard and CSE-113TQ-563CB 1U Rackmount Chassis.
Product SKU |
|
---|---|
SYS-1027R-73DAF | • SuperServer 1027R-73DAF (Black) |
Motherboard |
|
---|---|
Super X9DRD-7LN4F |
Processor/Cache |
|
---|---|
CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (60W - 135W TDP) |
Cache | • Up to 30MB |
System Bus | • QPI up to 8 GT/s |
Note | • † BIOS version 3.0 or above is required |
• Please contact WillJaya Technical support for additional information |
System Memory |
|
---|---|
Memory Capacity |
• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC and non-ECC UDIMM |
Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
Memory Voltage | • 1.5 V, 1.35 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
---|---|
Chipset | • Intel® C602J chipset |
SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10 |
SAS | • SAS2 (6Gbps) via LSI 2308 • SW RAID 0, 1, 10 support |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Renesas SH7757 BMC |
Network Connectivity | • Intel® i350 Quad Port Gigabit Ethernet |
VGA | • Matrox G200eW |
Input/Output |
|
---|---|
Serial SATA |
• 2x SATA 3.0 ports (6Gbps) |
SAS | • 8x SAS ports |
LAN |
• 4x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A) |
Video | • 1x VGA port |
Serial Port/Header | • 1x Fast UART 16550 port / 1 Header |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-113TQ-563CB |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 23.5" (597mm) |
Gross Weight | • 37 lbs (17.78kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button • UID button |
LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
---|---|
PCI-Express |
• 1 (x8) PCI-E 3.0 slot (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
---|---|
Hot Swap | • 8 Hot-swap 2.5" SAS / SATA HDD trays |
Backplane |
|
---|---|
• SAS/SATA HDD Backplane |
System Cooling |
|
---|---|
Fans | • 6x 40x56mm Counter-rotating PWM fans |
Power Supply |
|
---|---|
560W AC power supply w/ PFC (24-pin) | |
AC Voltage | • 100-240 V, 50-60 Hz, 7.5 Amp max |
+5V | • 18 Amp |
+5V standby | • 3 Amp |
+12V | • 46 Amp @ 100-180V; • 49 Amp @ 180-240V |
-12V | • 700W: 58 Amp @ 100-140V • 750W: 62 Amp @ 180-240V |
+3.3V | • 0.5 Amp |
Certification | • Gold Certified |
System Bios |
|
---|---|
Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
