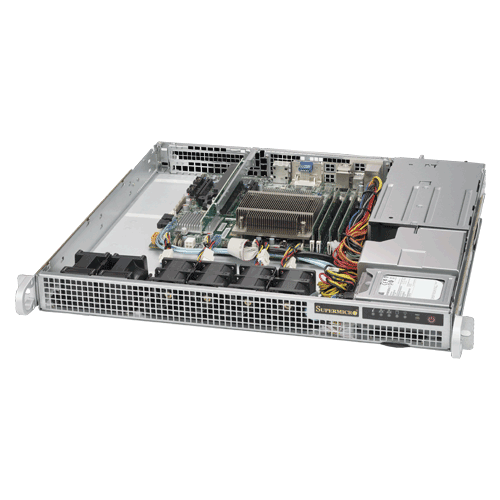

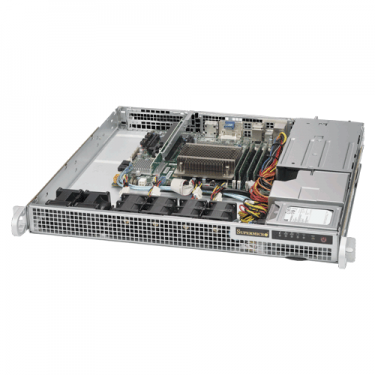

Supermicro 1U Rackmount SuperServer SYS-1019S-M2

Call for price.

SKU:SYS-1019S-M2

Quick Overview:

Key Features:
• Embedded, 7-year life cycle
• Industrial Automation & Control
• Military Compact Server
• VOIP and Network Appliances
• Medical Applications
• Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors
• Intel® Q170 Express chipset
• 2x 2.5" Fixed drive bays
• Up to 64GB Unbuffered Non-ECC UDIMM DDR4 2133MHz; 4 DIMM slots
• 1x PCI-E 3.0 x16 (in x16) slot
• 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM
• Integrated IPMI 2.0 and KVM with Dedicated LAN, vPro supported
• 2x DP, 1 DVI-I, Intel HD Graphics, with 3x independent displays, VGA for BMC AST2400
• 400W Platinum Level Power Supply + Optional 2nd redundant 400W Power supply or Battery Backup Unit

Description

Details

SuperServer SYS-1019S-M2

Supermicro SuperServer 1019S-M2 400W Intel Q170 64GB DDR4 2x 2.5" SATA3 1U Rackmount Server Barebone

Product SKU
SYS-1019S-M2	• SuperServer 1019S-M2 (Black)

Motherboard
	Super X11SSZ-QF

Processor/Cache
CPU	• Intel® 6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 80W TDP • Single Socket H4 (LGA 1151)

System Memory
Memory Capacity	• 4x 288-pin DDR4 DIMM slots • Up to 64GB DDR4 Non-ECC UDIMM
Memory Type	• 2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	• 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V

On-Board Devices
Chipset	• Intel® Q170 Express chipset
SATA	• SATA3 (6Gbps) via Intel® Q170 Express controller • RAID 0, 1 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC 888S High Definition Audio
Video	• ASPEED AST2400 BMC and Intel HD Graphics 530

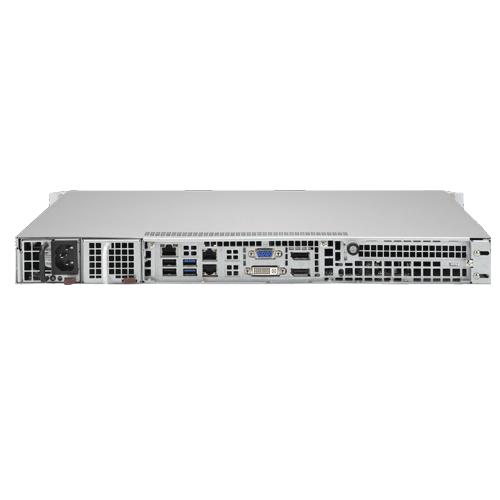

Input/Output
SATA	• 2x SATA3 (6Gbps) ports; RAID 0, 1
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (2 rear) • 3x USB 2.0 ports (2 rear + 1 Type A)
Video/Display	• 2x DP (Display Port), 1x DVI-I from Intel® HD Graphics, 1x VGA from AST2400 • 3x Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
Serial Port/Header	• 2x serial headers
Super DOM	• 1x SuperDOM (Disk on Module) ports with built-in power

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • DMI 2.3 • PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 3.0 • UEFI 2.3.1 • RTC (Real Time Clock) Wakeup

Management
Software	• AMT • IPMI 2.0 with KVM support • NMI • vPro • Watch Dog • SuperDoctor® 5
Power Configuration	• ACPI Power Management • Keyboard Wakeup from Soft-Off • CPU Fan auto-off in sleep mode • Power-on mode for AC power recovery

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-514-407C-1P

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 16.9" (429mm)
Gross Weight	• 30.4 lbs (13.8 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots
PCI-Express	• 1x PCI-E 3.0 x16 (in x16) slot

Drive Bays
Internal	• 2x 2.5" Fixed SATA3 drive bays

System Cooling
Fans	• 4x 40x56mm PWM fan; 2x fans for AOC cooling

Power Supply
	400W Platinum level power supply with PMBus and I2C
AC Input	• 400W: 100-240 V, 50-60 Hz
DC Output +5V standby	• 3 Amp
DC Output +12V	• 33 Amp
Certification	• Platinum Level Certified

PC Health Monitoring
Voltage	• Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	• Total of 6 fan headers supporting up to 6 fans • 6 fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• CPU / System Overheat LED • Suspend static indicator LED • UID/Remote UID
Other Features	• Chassis intrusion detection • Chassis intrusion header • RoHS, Halogen Free

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
