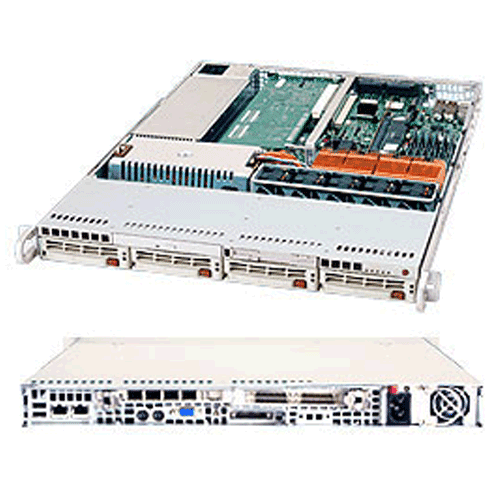

Supermicro SYS-6014P-TR / SYS-6014P-TRB 1U Rackmount with 560W cold-swap Redundant Power Supply,Intel® E7520 chipset, 4x 3.5" Hot-swap SATA drive bays, using Supermicro
Super X6DHP-TG Motherboard and SC814T+-560 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6014P-T | • SuperServer 6014P-T (Beige) |
| SYS-6014P-TB | • SuperServer 6014P-T (Black) |
Motherboard |
|
|---|---|
| Super X6DHP-TG | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets |
| System Bus | • 800 MHz system bus |
| OS Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
|---|---|
| Memory Capacity |
• Six 184-pin DIMM sockets • Supports up to 12 GB DDR 333MHz memory or • Supports up to 24 GB DDR 266MHz memory • Dual-channel memory bus • Memory must be populated in pairs |
| Memory Type | • DDR333/266MHz Buffered (Registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256MB, 512 MB, 1GB, 2GB, 4GB** |
| Memory Voltage | • 2.5 V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7520 chipset |
| SATA | • ICH5R Controller for 2 SATA ports |
| SATA | • Marvell 88SX6081 4-port SATA Controller with 3rd-Party Adaptec AIC-8110(4x drive) |
| Zero Channel RAID | • Support for Zero-Channel RAID |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 (Optional [1U: AOC-1UIPMI-B]) |
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller • Supports 10Base-T, 100Base-TX, 1000Base-T, RJ45 output |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8MB of video memory |
| Super I/O | • National 87427 chip |
| Clock Generator | • 409B |
Input/Output |
|
|---|---|
| Serial ATA | • Up to 4 SATA hard drives supported |
| IDE | • Dual EIDE channels support up to four UDMA/ IDE devices • Supports UDMA Mode 5 and ATA/100 |
| Floppy | • 1 Floppy controller; 1.44 MB |
| LAN | • 2x RJ45 LAN port |
| USB | • 2x USB rear ports |
| VGA | • 1x VGA Port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 2 Fast UART 16550 serial headers
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC814T+-560 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 26.8" (681mm) |
| Weight | • 43 lbs (19.5kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • UID LED |
| Ports | • N/A |
Expansion Slots |
|
|---|---|
| PCI-Express / PCI-X |
• 2 x Universal (SXB-E) slot for
|
Drive Bays |
|
|---|---|
| Hot-swap | • 4x 3.5" Hot-swap SATA drive bays |
Peripheral Drives |
|
|---|---|
| Floppy | • TEAC 3.5" 1.44MB Slim Floppy Drive |
| CD-ROM | • Panasonic Slim DVD-ROM drive |
Hard Drive Backplane |
|
|---|---|
| • 1x SAS-814 1U SATA Backplane | |
System Cooling |
|
|---|---|
| Fans | • 5x 4cm 12,000 RPM Nidec dual blade counter-rotating fans |
Power Supply |
|
|---|---|
| 560W Cold-swap redundant AC power supply w/ PFC [ 24-pin, (8-pin=12V) ] | |
| AC Voltage | • 100 - 240V, 60-50Hz, 10-5 Amp |
| DC Output | • 5V + 3.3V ≤ 160W |
| +5V | • 30.0 Amp |
| +5V stand by | • 4.0 Amp |
| +12V | • 42 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 21 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V, +3.3V Standby |
| FAN | • Total of five proprietary fan headers supporting up to 10 fans • Status monitor for speed control • Low noise fan speed control |
| Temperature | • Monitoring for CPU, chassis environment • CPU thermal trip support • Thermal Monitor 2 (TM2) support |
| LED | • CPU / System Overheat LED |
| Other Features | • Chassis intrusion detection • Chassis intrusion header • SDDC support |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP) |
