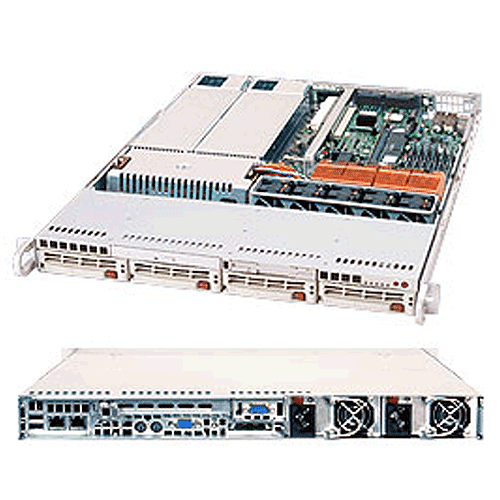

Supermicro SYS-6014P-82R / SYS-6014P-82RB 1U Rackmount with 560W Hot-swap Redundant Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap Ultra320/160 SCSI drive bays,
using Supermicro
Super X6DHP-8G2 Motherboard and SC814S+-R560 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6014P-82R | • SuperServer 6014P-82R (Beige) |
| SYS-6014P-82RB | • SuperServer 6014P-82RB (Black) |
Motherboard |
|
|---|---|
| Super X6DHP-8G2 | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets |
| System Bus | • 800 MHz system bus |
| Operating System Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
|---|---|
| Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 16 GB DDR2 400MHz memory • Dual-channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 512 MB, 1GB, 2GB |
| Memory Voltage | • 1.8V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7520 chipset |
| SCSI | • Adaptec AIC-7902 Controller • Dual-Channel Ultra320 SCSI • Host RAID 0, 1, 10, JBOD support |
| Zero Channel RAID | • Support for Zero-Channel RAID • Optional Card Not Included |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 (Optional [1U: AOC-1UIPMI-B]) |
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller • Supports RJ45 output |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
| Super I/O | • National 87427 chip |
Expansion Slots |
|
|---|---|
| PCI-Express / PCI-X |
• 1 x Universal (SXB-E) slot for
[1 (x8) PCI-E Slot] OR
[1x 64-bit PCI-X 133MHz slot] • Supports Full-length add-on cards |
Input/Output |
|
|---|---|
| SCSI | • External High Density SCSI Port |
| IDE | • Dual EIDE channels support up to four UDMA/ IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | • 1 Floppy controller; 1.44 MB |
| LAN | • 2x RJ45 LAN port |
| USB | • 2x USB rear ports |
| VGA | • 1x VGA Port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 2 Fast UART 16550 serial ports |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC814S+-R560 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 26.8" (681mm) |
| Weight | • 46.5 lbs (21.1kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • UID LED |
| Ports | • N/A |
Drive Bays |
|
|---|---|
| Hot-swap | • 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays |
Peripheral Drives |
|
|---|---|
| Floppy | • TEAC 3.5" 1.44MB Slim Floppy Drive |
| DVD-ROM | • Panasonic Slim DVD-ROM drive |
SCSI Backplane |
|
|---|---|
| • 1x SCA814S 1U SCSI Backplane w/ SAF-TE | |
System Cooling |
|
|---|---|
| Fans | • 5x 4cm 12,000 RPM Nidec dual blade fans |
Power Supply |
|
|---|---|
| 560W (1 + 1) Redundant AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ] | |
| AC Voltage | • 100 - 240V, 50 - 60Hz, 10 - 5 Amp |
| DC Output | • 5V + 3.3V ≤ 160W |
| +5V | • 30 Amp |
| +5V stand by | • 4.0 Amp |
| +12V | • 46 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 21 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby & VBAT |
| FAN | • Total of five proprietary fan connectors supporting 10 fans • 10x fans with Tachometer status monitoring • Status monitor for speed control |
| Temperature | • Monitoring for CPU, chassis environment • CPU thermal trip support • Thermal control for 10x fan connectors • Thermal Monitor 2 (TM2) support |
| LED | • CPU / System Overheat LED |
| Other Featue | • Chassis intrusion detection • Chassis intrusion header • SDDC support |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP)
|
