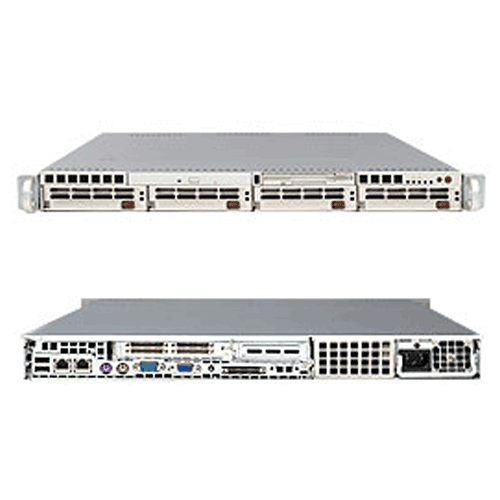

Supermicro SYS-6014P-32 / SYS-6014P-32B 1U Rackmount with 700W Hot-swap Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap SAS / SATA drive bays, using
Supermicro Super X6DHP-3G2 Motherboard and SC816A-R700 Rackmount Chassis
Product SKU |
|
---|---|
SYS-6014P-32 | • SuperServer 6014P-32 (Beige) |
SYS-6014P-32B | • SuperServer 6014P-32B (Black) |
Motherboard |
|
---|---|
Super X6DHP-3G2 |
Processor/Cache |
|
---|---|
CPU | • Dual 604-pin FC-mPGA4 Sockets |
System Bus | • 800 MHz system bus |
Operating System Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
---|---|
Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 16 GB DDR2 400MHz memory • Dual-channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
Memory Type | • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 512 MB, 1GB, 2GB |
Memory Voltage | • 1.8V only |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® E7520 chipset |
SAS | • Adaptec AIC9410: Adaptec 8-port SAS Controller • RAID 0, 1, 10, JBOD support |
SAS Zero Channel RAID | • Support for Zero-Channel RAID • Optional Card Not Included |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • (Optional IPMI Card: AOC-1UIPMI-B) • 3rd LAN(GbE) port (Optional: AOC-1UIPMI-LANG) *Must be used with Optional IPMI Card above. |
Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller • Supports RJ45 output |
Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Super I/O | • National 87427 chip |
Expansion Slots |
|
---|---|
PCI-Express / PCI-X |
• 1 x Universal (SXB-E) slot for
[1 (x8) PCI-E Slot] OR
[1x 64-bit PCI-X 100MHz slot] • 1 x Universal (SXB-E) slot for [1 (x8) PCI-E Slot] OR [1x 64-bit PCI-X 100MHz slot] • 1 x IPMI 2.0 Slot (For optional 3rd LAN) • Supports Full-length add-on cards |
Input/Output |
|
---|---|
SAS | • Four internal SAS ports • Four external SAS ports |
IDE | • Dual EIDE channels support up to four UDMA/ IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
Floppy | • 1 Floppy controller; 1.44 MB |
LAN | • 2x RJ45 LAN ports |
USB | • 2x USB rear ports |
VGA | • 1x VGA Port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 2 Fast UART 16550 serial ports |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • SC816A-700 |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 27" (686mm) |
Weight | • 57 lbs (25.9kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • UID LED |
Ports | • None |
Drive Bays |
|
---|---|
Hot-swap | • 4x 3.5" Hot-swap SAS / SATA drive bays |
Peripheral Drives |
|
---|---|
Floppy | • Slim Floppy Drive |
DVD-ROM | • Slim 8x DVD-ROM drive |
SAS Backplane |
|
---|---|
• 1x 1U SAS / SATA Hard Drive Backplane |
System Cooling |
|
---|---|
Fans | • 4x 4cm dual blade fans |
Power Supply |
|
---|---|
700W AC-DC power supply and power distributor w/ PFC | |
AC Voltage | • 100 - 240V, 60-50Hz, 10 - 4 Amp |
+5V stand by | • 4 Amp |
+12V | • 57 Amp |
With Power Distributor |
• +5V: 24 Amp • +3.3V: 21 Amp • -12V: 0.6 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby & VBAT |
FAN | • Total of five proprietary fan connectors supporting 10 fans • 10x fans with Tachometer status monitoring • Status monitor for speed control |
Temperature | • Monitoring for CPU, chassis environment • CPU thermal trip support • Thermal control for 10x fan connectors • Thermal Monitor 2 (TM2) support |
LED | • CPU / System Overheat LED |
Other Featue | • Chassis intrusion detection • Chassis intrusion header • SDDC support |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
Bios Features | • Plug and Play (PnP)
|
