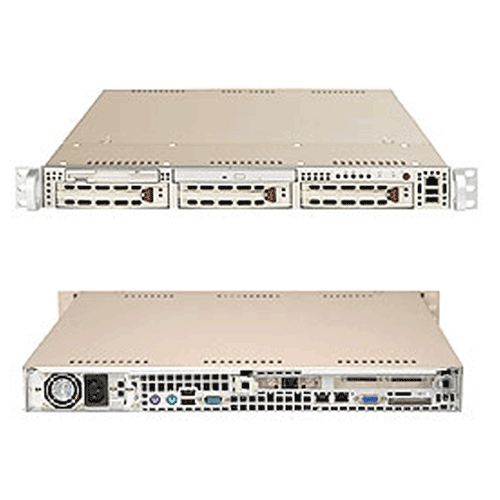

Supermicro SYS-6014H-i2 / SYS-6014H-i2B 1U Rackmount with 520W Power Supply,Intel® E7520 chipset, 3 x 3.5" Fixed Drive Bays, using Supermicro
Super X6DHR-iG2
Motherboard and SC812i-420 Rackmount Chassis
Product SKU |
|
---|---|
SYS-6014H-i2 | • SuperServer 6014H-i2 (Beige) |
SYS-6014H-i2B | • SuperServer 6014H-i2B (Black) |
Motherboard |
|
---|---|
Super X6DHR-iG2 |
Processor/Cache |
|
---|---|
CPU | • Dual 604-pin FC-mPGA4 Sockets |
System Bus | • 800 MHz system bus |
System Memory |
|
---|---|
Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 16 GB DDR2 400MHz memory • Dual-channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
Memory Type | • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB** |
Memory Voltage | • 1.8V only |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® E7520 chipset |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 (Optional) |
Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Super I/O | • Winbond 83627HF chip |
Expansion Slots |
|
---|---|
PCI-Express / PCI-X |
• 2 x Universal (SXB-E) slots
[ 2 (x8) PCI-Express Slots ] OR [ 1x 64-bit PCI-X 133MHz slot + 1x 64-bit PCI-X 100MHz slot ] |
Input/Output |
|
---|---|
IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
LAN | • 2x RJ45 LAN port |
USB | • 2x USB rear ports |
VGA | • 1x VGA Port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 2 Fast UART 16550 serial ports
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • SC812i-420 |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 16.8" (426mm) |
Depth | • 25.6" (650mm) |
Weight | • 38 lbs (17.2kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
Ports | • 2x USB Ports (USB 2.0 Ready) • 1x RJ45 COM Port |
Drive Bays |
|
---|---|
Internal Bay | • 3 x 3.5" Fixed Drive Bays |
Peripheral Drives |
|
---|---|
Floppy | • TEAC 3.5" 1.44MB Slim Floppy Drive |
DVD-ROM | • TEAC Slim 24x CD-ROM drive |
System Cooling |
|
---|---|
Fans | • 2x 10cm blower fans |
Power Supply |
|
---|---|
420W AC power supply w/ PFC [ 20-pin, (4-pin, 8-pin) = 12V ] | |
AC Voltage | • 100 - 240V, 50/60Hz, 7-4 Amp |
DC Output | • 5V + 3.3V ≤ 160W |
+5V | • 30 Amp |
+5V stand by | • 2.0 Amp |
+12V1 | • 15 Amp |
+12V2 | • 15 Amp |
+12V3 | • 18 Amp |
-12V | • 1.0 Amp |
+3.3V | • 20 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby |
FAN | • Total of five 3-pin fan headers • 5x fans with status monitoring • Status monitor with firmware/software on/off control • Fan speed control |
Temperature | • Monitoring for CPU, chassis environment • CPU thermal trip support • Thermal Monitor 2 support |
LED | • CPU / System Overheat LED |
Other Featue | • Chassis intrusion detection • Chassis intrusion header • SDDC support |
System Bios |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
Bios Features | • Plug and Play (PnP) |
