  • Supermicro 1U Rackmount A+ Servers AS-1022G-NTF

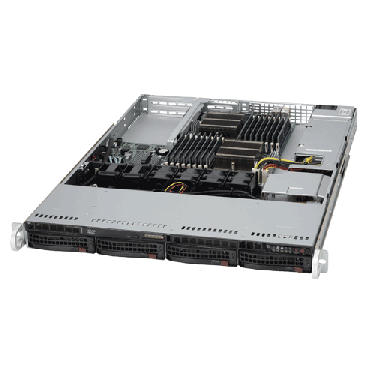

Supermicro 1U Rackmount A+ Servers AS-1022G-NTF

Call for price.
SKU:AS-1022G-NTF

Quick Overview:

Key Features:
• Dual AMD Opteron™ 6000 series
• Up to 512GB of memory
• 2x PCI-e Gen 2.0 x8 slots
• Dual-port GbE LAN Controller
• 4x Hot-swap SATA Drive Bays
• 560W High-efficiency Power Supply

Details

Supermicro 1U Rackmount A+ Servers AS-1022G-NTF

Product SKU
• A+ Server 1022G-NTF (Black)
Motherboard
  • Super H8DGU-F
Processor/Cache
CPU • Dual 1944-pin Socket G34
• Supports up to two 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors
• HT3.0 Link support
• 3.2GHz Hyper-Transport (HT3) link
Chipset • AMD chipset SR5670 / SP5100
Notes  Supports 6000 processors with Max ACP 80W (TDP 115W)
System Memory
Memory Capacity • 16 DIMM sockets
• Support up to 512GB Registered ECC or 128GB Unbuffered ECC/non-ECC 1600/1333/1066 SDRAM in 16 DIMMs
• Quad channel memory bus
• For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR3 1600/1333/1066 MHz Registered ECC Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Memory Voltage

• 1.35V or 1.5V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA • AMD SP5100 (RAID 0, 1, 10)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Winbond® WPCM450 BMC
Network Controllers • Intel® 82576 controller, Dual-Port Gigabit Ethernet
• 10/100/1000BASE-T support
VGA

• Matrox G200 16MB DDR2

Super I/O • Winbond 83527 chip
Expansion Slots
1U • 2x PCI-e 2.0 x8 slots
Input/Output
SATA • 4x SATA2.0 (3Gb/s) Ports
LAN • 2x RJ45 LAN ports
• 1x RJ45 Dedicated LAN supports IPMI
USB • 7x USB 2.0 ports
• 2x Rear, 4x header, 1x Type A
VGA • 1x VGA port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Others • 1 UID
System BIOS
BIOS Type

• 16Mb Flash EEPROM with AMI® BIOS

BIOS Features














• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• BIOS Rescue Hot Keys
• USB Keyboard Support
• Hardware BIOS Virus Protection
• SMBIOS 2.3







Chassis
Form Factor • 1U Rackmount
Model SC815TQ-563UB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Gross Weight • 36 lbs (16.4kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• (UID LED)

Drive Bays
Hot-swap

• 4x 3.5" SATA Hot-swap drive trays
• Enterprise SATA HDD only recommended

Peripheral Drives
DVD-ROM

• Slim DVD-ROM drive

SAS/SATA Backplane


• 1x 1U SAS / SATA backplane

System Cooling
Fans

• 4x 4cm Counter-rotating PWM fans

Power Supply
  560W AC power supply w/ PFC (24-pin)
AC Voltage • 100-240 V, 50-60 Hz, 7.5 Amp max
+5V
• 18 Amp
+5V standby • 3 Amp
+12V • 46 Amp @ 100-180V;
• 49 Amp @ 180-240V
-12V • 0.5 Amp
+3.3V • 15 Amp
Certification • 80Plus Gold Certified
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, ±12V, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage
• CPU switching voltage regulator

FAN • Total up to 8-fan status tachometer monitoring
• Status monitor for speed control
• Stauts monitor for on/off control
• Low noise fan speed control
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal Control for 8x Fan Connectors
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
• Suspend-State Indicator LED
• +5V Standby Alert LED
• UID/Remote LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 10°C to 30°C (50°F to 86°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
