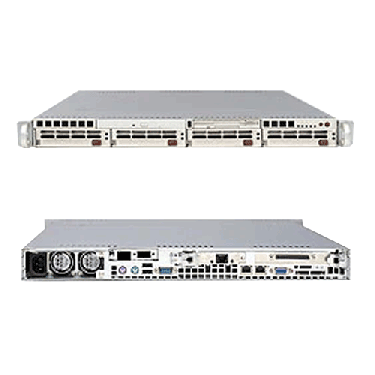

  • Supermicro 1U Rackmount A+ Servers AS-1020A-TB

Supermicro 1U Rackmount A+ Servers AS-1020A-TB

Call for price.
SKU:AS-1020A-TB

Quick Overview:

Key Features:
• Supports up to two Dual-Core AMD Opteron™ 200 processors
• Support up to 16GB of memory
• 1 x Broadcom® 5704 Dual Port Gigabit Ethernet Controller
• Zero Channel RAID Support
• 4 x 3.5" SATA Hot-swap Drive Bays
• 500W Cold-swap Power Supply

Details

Supermicro 1U Rackmount A+ Servers AS-1020A-TB

Product SKU
• A+ Server 1020A-T (Beige)
• A+ Server 1020A-TB (Black)
Motherboard
  • H8DAR-T
Processor/Chipset
CPU • Dual 940-pin ZIF Sockets
• Supports up to two Dual-Core AMD Opteron™ 200 Series processor(s)
• VRM x4
Chipset • HyperTransport Link
• AMD 8132 HyperTransport PCI-X Tunnel
• AMD 8111 HyperTransport I/O Hub
System Memory
Memory Capacity • Eight 184-pin DIMM sockets
• Supports up to 16 GB DDR 400 MHz memory or
• Supports up to 16 GB DDR 333 MHz memory or
• Supports up to 32 GB DDR 266 MHz memory
• Single or Dual(recommended) channel memory
• For Single CPU: Memory must be populated in the adjacent memory bank
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB, 4GB**

Memory Voltage

• 2.5 V only

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA • Marvell 88SX6041 Controller
• 4-Port SATA
• Host RAID 0, 1, JBOD
Zero Channel RAID • Support for Zero-Channel RAID
• (Card not included)
IPMI • Intelligent Platform Management Interface v.2.0+
• (Optional: 1UIPMI-B ) 1U Support
• (Optional: 1UIPMI-B + 1UIPMI-LANG) for 3rd LAN port support with IPMI
• RMM (Remote Management Module)
• (Card not included)
Network Controllers • Broadcom® 5704 Dual Port Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA

• ATI Rage XL 8MB PCI Graphics Controller

Expansion Slots
PCI-X • 2x 64-bit 133/100MHz PCI-X (3.3V) slots
• (One slot for Full-height / Half-length cards, one slot for Low-profile / Half-length cards)
Input/Output
Serial ATA • Four Serial ATA connectors
• Four SATA hard drives supported
IDE • Dual ATA 133/100 EIDE channels support up to four UDMA IDE devices
Floppy • 1 Floppy port; 1.44 MB, 2.88 MB, 3-mode support
LAN • 2 RJ45 LAN port
USB • FUCI
• Up to 5 USB Ports 1.1 Compliant
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 2 Fast UART 16550 serial ports
System BIOS
BIOS Type

• 4Mb Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• ACPI 1.0
• Fan Speed Control

Chassis
Form Factor • 1U Rackmount
Model SC813T+-500
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Gross Weight • 36 lbs (16.4kg)
Available Colors • Colors Beige, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED

Drive Bays
Hot-swap

• 4 x 3.5" hot-swap SATA Drive Bays with SAF-TE

Peripheral Drives
Floppy

• TEAC 3.5" 1.44MB Slim Floppy Drive

CD-ROM

• TEAC Slim 24x CD-ROM drive

Backplane


• 4 x 3.5" SATA HDD Backplane

System Cooling
Fans

• 4x 9cm 10,200 RPM cooling fans

Power Supply
  Cold-swappable 500W AC power supply module with PFC
AC Voltage • 100 - 240V, 60-50Hz, 10 Amp Max
DC Output
• 5V + 3.3V ≤ 160W
+5V • 30.0 Amp
+5V standby • 2.0 Amp
+12V • 39.0 Amp Max
-12V • 1.0 Amp
+3.3V • 21.0 Amp
Management
Software

• Optional IPMI (Intelligent Platform Management Interface) 2.0
• Super Doctor III
• Watch Dog

Power Configuration • ACPI/API Power Management
• Wake-On-LAN (WOL) header
• Power-on mode control for AC power loss recovery
• Internal/External modem remote ring-on
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, ±12V & battery voltage
• Up to 5 fan status
• Supports System Management Utility

FAN

• Total up to 5-fan status
• 3-pin fan speed control

Temperature

• Monitoring for CPU, chassis, environment

LED

• Overheat LED

Other Features












• Chassis Intrusion Header
