Details
|
Product SKU
| |
|---|---|

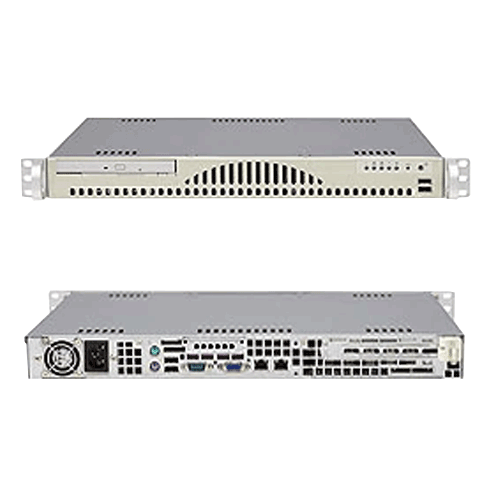

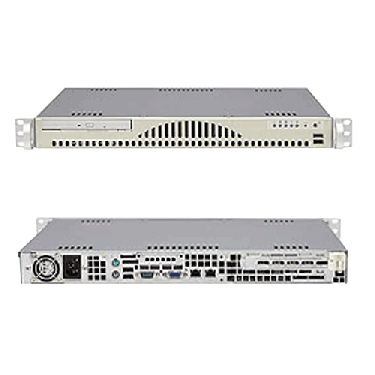

| AS-1011S-MR2B | • A+ Server 1011S-MR2B (Black) |
|
Motherboard
| |
|---|---|
| • Super H8SSL-i2 | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Single 940-pin ZIF Socket • Supports one Quad-Core AMD Opteron™ 1000 Series (Socket AM2/AM3) processor • 4 phase VRM |
| System Bus | • 800MHz HyperTransport |
| Chipset | • ServerWorks HT1000 |
|
System Memory
| |
|---|---|
| Memory Capacity | • Four 240-pin DIMM sockets • Supports up to 8 GB DDR2 800/667/533 MHz memory • Single or Dual (recommended) channel memory |
| Memory Type | • DDR2 800/667/533MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB |
| Memory Voltage | • 1.8V only |
|
On-Board Devices
| SATA | • 4 SATA Ports using ServerWorks HT1000 controller | IDE | • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA/100 |
IPMI | • 1U support: Intelligent Platform Management Interface v.2.0+ (Optional: 1UIPMI) • Remote Management Module • (Card not included) |
|---|---|
| Network Controllers | • Broadcom BCM5704C Dual Gigabit Ethernet Controller • Supports 1000BASE-T, RJ45 output |
| VGA | • ATI ES1000 Graphics Controller |
| Super I/O |
• Winbond 83627HF |
|
Expansion Slots
| PCI-X | • 1x 64-bit 133MHz PCI-X (3.3V) slot |
|---|
|
Input/Output
| SATA | • Up to four SATA devices | IDE | • Single ATA 100 EIDE channels support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports ATA/100 |
Floppy | • 1 Floppy port; 1.44 MB | LAN | • 2 RJ45 LAN ports | USB | • 2 USB Rear Ports • 4 USB Internal Headers • USB 2.0 Compliant, 1.1 Compatible |
|---|---|
| VGA | • 1 VGA port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1 Fast UART 16550 serial ports • 1 Header |
|
System BIOS
| |
|---|---|
| BIOS Type | • 4Mb Flash EEPROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC512F-260B |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 16.8" (427mm) |
| Depth | • 14.0" (356mm) |
| Gross Weight | • 17 lbs (7.7kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED |
| Ports |
• 2x USB Ports (2.0 Ready) |
|
Peripheral Drives
| |
|---|---|
| CD-ROM | • TEAC Slim 24x CD-ROM drive |
|
System Cooling
| |
|---|---|
| Fans | • 2x 4cm 3-pin Nidec Counter-rotating Fans |
|
Power Supply
| |
|---|---|
| Thermal control 260W AC power supply with PFC [ 24-pin, 4-pin=12V, (2) 4-pin ] | |
| AC Voltage | • 100 - 240V, 60-50Hz, 4 Amp Max |
| DC Output |
• 5V + 3.3V ≤ 140W |
| +5V | • 25.0 Amp |
| +5V standby | • 2.0 Amp |
| +12V | • 18.0 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 15.0 Amp |
|
Regulatory Power Supply
| |
|---|---|
| Safety / EMC | • USA - UL Listed, FCC |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +5V, ±12V, 5.5V Standby, 2.5V Standby, VBAT |
| FAN | • Total up to five 3-pin fan headers • 5 Fan Status Tachometer monitoring • Status Monitor for Speed Control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip support • I2C temperature sensing logic |
| LED | • CPU / Overheat LED • Suspend-state indicator LED • +5V Standby Alert LED |
| Other Features |
• Chassis Intrusion Header • Chassis Intrusion Detection • SDDC Support • Chipkill Support |
