Details
|
Product SKU
| |
|---|---|

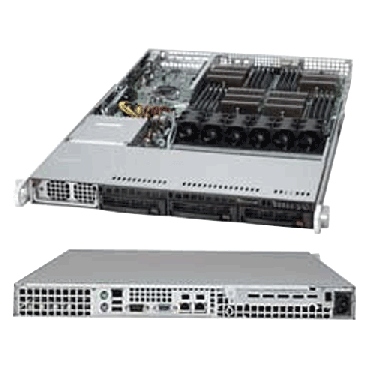

| AS -1042G-LTF | • A+ Server 1042G-LTF (Black) |
|
Motherboard
| |
|---|---|
| • Super H8QGL-iF+ | |
| Processor/Cache
|
|
|---|---|
| CPU | • Quad 1944-pin Socket G34 • Supports up to four 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors • HT3.0 Link support |
| Chipset | • AMD SR5690/SP5100 Chipset |
| Note | Supports 6000 processors with Max ACP 80W (TDP 115W) |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16 DIMM sockets • Supprots up to 512GB Registered ECC or 128GB Unbuffered ECC/non-ECC DDR3 1866/1600/1333/1066 SDRAM in 16 DIMMs • Quad channel memory bus |
| Memory Type | • DDR3 1866/1600/1333/1066 MHz Registered ECC SDRAM or Unbuffered ECC/non-ECC 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | • 1.35V or 1.5V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SATA | • AMD SP5100 (RAID 0, 1) | IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC |
|---|---|
| Network Controllers | • Intel® 82576 controller, Dual-Port
Gigabit Ethernet • 10/100/1000BASE-T support |
| VGA |
• Matrox G200eW 16MB DDR2 Graphics |
| Super I/O | • Winbond® W83527 chip |
|
Input/Output
| SATA | • 6x SATA2.0 (3Gb/s) Ports | LAN | • 2 RJ45 LAN ports • 1 RJ45 Dedicated LAN supports IPMI |
|---|---|
| USB | • 7x USB 2.0 ports • 2x Rear, 4x internal header, and 1x type A |
| VGA | • 1x VGA port |
| Keybard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1x Fast UART 16550 serial port • 1x serial port header |
|
Expansion Slots
| PCI-Express | • 1x PCI-e 2.0 x16 |
|---|
|
System BIOS
| |
|---|---|
| BIOS Type | • 16Mb SPI Flash ROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • 818TQ-1400B |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.75" (705mm) |
| Gross Weight | • 43 lbs (19.5 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 3x 3.5" hot-swap SATA drive bays |
|
Peripheral Drives
| |
|---|---|
| DVD-ROM | • Slim DVD-ROM drive (optional) |
|
Backplane
| |
|---|---|
• SAS HDD Backplane with SES2 |
|
|
System Cooling
| |
|---|---|
| Fans | • 6x heavy-duty counter-rotating PWM fans with optimal fan speed control |
|
Power Supply
| |
|---|---|
| 1400W high-efficiency power supply with PMBus | |
| AC Input | • 1200W: 100 - 140V, 50 - 60Hz, 10.5 - 14.7 Amp • Amp 1400W: 180 - 240V, 50 - 60Hz, 7.2 - 9.5 Amp |
| DC Output
+5V standby |
• 4 Amp |
| DC Output +12V | • 4 Amp
DC Output
+12V
100 Amp @ 100-140V • 117 Amp @ 180-240V |
| Certification | • 80Plus Gold Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, -12V Standby, VBAT, HT, memory, chipset |
| FAN | • Up to 9-fan status tachometer monitoring • Up to nine 4-pin fan headers • Status monitor for speed control • 3-pin fan support (w/o speed control) • Low noise fan speed control (4-pin fan only) • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal control for 9x fan connectors • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • +5V Standby Alert LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
