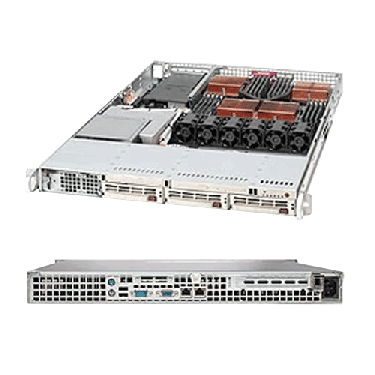

Supermicro 1U Rackmount A+ Server AS-1040C-TB
|
Product SKU
| |
|---|---|
| AS-1040C-T | • A+ Server 1040C-T (Beige) |
| AS-1040C-TB | • A+ Server 1040C-TB (Black) |
|
Motherboard
| |
|---|---|
| • Super H8QCE+ | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Quad 940-pin ZIF Sockets • Supports four Dual-Core AMD Opteron™ 800 Series processor(s) • HyperTransport Link (1000MHz) • VRM x4 |
| Chipset | • nVidia nForce Pro 2200 (CK804) • AMD 8132 PCI-X Tunnel |
|
System Memory
| |
|---|---|
| Memory Capacity | • Four 184-pin DIMM sockets per processor memory bank • Four memory banks for 4 processors (Quad). • Supports up to 32 GB DDR 400 MHz memory or • Supports up to 64 GB DDR 333/266 MHz memory • Supports up to 64 GB registered ECC DDR for 4-way option • Supports up to 128 GB memory for 8-way option only • Single or Dual (recommended) channel memory support • Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB** |
| Memory Voltage | • 2.5 V only |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SATA | • nVidia nForce Pro 2200 SATA 3.0Gbps Controller • 4 SATA Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1 support |
|---|---|
| Network Controllers | • Dual Intel 82546GB Ethernet Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
IPMI | • 1U support for Intelligent Platform Management Interface v.2.0 • (Optional: AOC-IPMI20-E) Card not included |
Graphics | • ATI Rage XL 8MB |
| Super I/O | • Winbond 83627HF-AW |
| Clock Generator |
• CK804 |
|
Input/Output
| Serial ATA | • Integrated SATA 3.0Gbps Controller • Four Serial ATA Connectors • Four SATA hard drives supported |
IDE | • Dual ATA 133/100 EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100 / 133 |
Floppy | • 1 Floppy port; 1.44 MB, 2.88 MB support | LAN | • 2 RJ45 LAN ports | USB | • FUCI • Up to 4 USB Ports 2.0 Compliant, 1.1 Compatible • 2 rear ports • 1 internal header for 2 ports |
VGA | • 1 VGA port |
|---|---|
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1 Fast UART 16550 serial port • 1 Header |
| Parallel Ports |
• 1 ECP / EPP parallel port |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC818TQ+-1000 |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.75 (705mm) |
| Gross Weight | • N.A. |
| Available Colors | • Beige, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 1 PCI-e x8 slot |
| HyperTransport |
• 1 extra I/O as a Pathscale communication device (with optional riser card RSC-RR1U-EHT) |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 3 x 3.5" Hot-swap SATA drive bays |
|
Peripheral Drives
| |
|---|---|
| DVD-ROM | • Slim 8x DVD-ROM Drive |
|
SATA Backplane
| |
|---|---|
• 3-port SATA Backplane |
|
|
System Cooling
| |
|---|---|
| Fans | • g Fans 6x Counter-rotating 3-pin Fans |
|
Power Supply
| |
|---|---|
| 1000W AC-DC high-efficiency power supply w/ PFC + PDB | |
| AC Voltage | • 100 - 240V, 50 - 60Hz, 15 - 7Amp |
| +5V standby
|
• 4 Amp |
| +12V | • 83 Amp |
| With Power Distributor |
• +5V: 20 Amp • +3.3V: 20 Amp • -12V: 0.6 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages +5V, ±12V & VBAT |
| FAN | • Total up to nine 3-pin fan headers • 9 Tachometer Monitoring • Status Monitor for Speed Control • Low Noise Fan Speed Control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal Control for 9 Fan Connectors • I2C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED • Suspend-State Indicator LED • Fan Fail LED |
| Other Features | • Chassis Intrusion Header • Chassis Intrusion Detection |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 8Mb Flash EEPROM with AMI® BIOS |
| BIOS Features | • Plug and Play (PnP) • PCI 2.2 • DMI 2.3 • ACPI 2.0 • BIOS Rescue Hot Keys • USB Keyboard Support • SMBIOS 2.3 |
