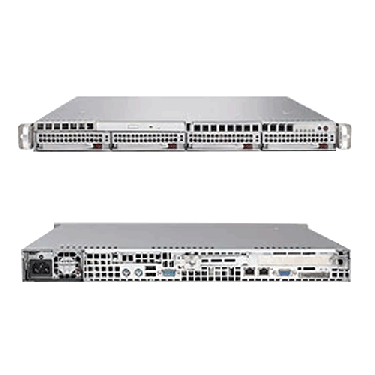

Supermicro 1U Rackmount A+ Server AS-1021M-82V

More Views

Supermicro 1U Rackmount A+ Server AS-1021M-82V

Description

Details

Supermicro 1U Rackmount A+ Server AS-1021M-82V

Product SKU
AS-1021M-82V	• A+ Server 1021M-82V (Silver)
AS-1021M-82B	• A+ Server 1021M-82B (Black)

Motherboard
	• Super H8DMR-82

Processor/Chipset
CPU	• Dual 1207-pin Socket F • Supports up to two Six-Core AMD Opteron™ 2000 Series (Socket F) processors • Single CPU configurations are not recommended • T3.0 Link support
Chipset	• nVidia nForce MCP55 Pro • NEC uPD720400

System Memory
Memory Capacity	• 8x 240-pin DIMM sockets support up to 64GB DDR2 800/667/533/400 MHz SDRAM • Single or Dual (recommended) channel memory support • For Single CPU: Memory must be populated in CPU1 DIMMs only • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	• DDR2 800/667/533/400MHz Reg. ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB
Memory Voltage	• 1.8V only
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
SCSI	• Adaptec AIC-7902W Controller • Dual-Channel Ultra320 SCSI with Host RAID • Host RAID 0, 1, 10, JBOD
Zero Channel RAID	• Support for Zero-Channel RAID • (Card not included)
IPMI	• 1U support: Intelligent Platform Management Interface v.2.0+ (Optional: AOC-SIM1U-3B(+) R 3.00) • For Dedicated 3rd DATA LAN, use both AOC-SIM1U-3B(+) + AOC-SIM1U-3D • Remote Management Module • (Add-on Cards not included)
Network Controllers	• nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller • Supports 10Base-T, 100Base-TX, and 1000Base-T, RJ45 output
Graphics	• ATI ES1000 graphics controller
Super I/O	• Winbond 83627HF

Input/Output
IDE	• Single EIDE channel support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA 100/133
Floppy	• 1 Floppy port, 1.44 MB
LAN	• 2 RJ45 LAN ports
USB	• FUCI • Up to 4 USB Ports 2.0 Compliant, 1.1 Compatible • 2 Rear Ports • 2 Internal Headers
VGA	• 1 VGA port
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Ports	• 1 Fast UART 16550 serial port • 1 header

System BIOS
BIOS Type	• 8Mb Flash EEPROM with AMI® BIOS • SST49LF080A BIOS Chip
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 2.0 • USB Keyboard Support

Chassis
Form Factor	• 1U Rackmount
Model	• SC815S+-560

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 25.6" (650mm)
Gross Weight	• 42 lbs (19.0kg)
Available Colors	• Silver,Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots
Left Universal Slot	• 1 PCI-express x8 Slot OR • 1 64-bit 133MHz PCI-X slot
Right Universal Slot	• 1 PCI-express x8 Slot OR • 1 64-bit 100MHz PCI-X slot

Drive Bays
Hot-swap	• 4 x 3.5" Hot-swap U320 SCSI drive bays

SCSI Backplane
	• 1U SCSI Backplane w/ SAF-TE

Peripheral Drives
DVD-ROM	• Slim 8x DVD, 24x CD, DVD-ROM drive

System Cooling
Fans	• 4x Cooling Fans
Air Shroud	• 1x Air Shroud

Power Supply
	560W AC power supply w/ PFC (20-pin)
AC Voltage	• 100 - 240V, 50 - 60Hz, 8.5 - 4Amp
+5V	• 25 Amp
+5V standby	• 3 Amp
+12V	• 43.6 Amp
-12V	• 0.6 Amp
+3.3V	• 21 Amp

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT, Chipset • CPU 4-Phase-switching voltage reulator
FAN	• Total up to 5-fan status tachometer monitoring • Up to five 3-pin fan headers • Status monitor for speed control • Stauts monitor for on/off control • Support 3-pin fans with fan-speed control • Low noise fan speed control • Overheat backup fan connector
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip Support • I2C Temperature Sensing Logic
LED	• CPU / System Overheat LED • Suspend-State Indicator LED • +5V Standby Alert LED
Other Features	• Chassis Intrusion Header • Chassis Intrusion Detection

Operating Environment / Compliance
RoHS	• nment / Compliance RoHS RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
