Details
|
Product SKU
| |
|---|---|

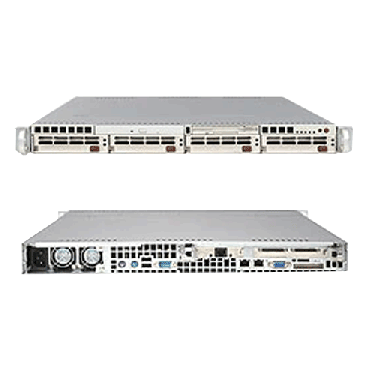

| AS-1020S-8 | • A+ Server 1020S-8 (Beige) |
| AS-1020S-8B | • A+ Server 1020S-8B (Black) |
|
Motherboard
| |
|---|---|
| • H8DSR-8 | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Dual 940-pin ZIF Sockets • Supports up to two Dual-Core AMD Opteron™ 200 Series processor(s) • 1MB Cache • VRM x3 |
| Chipset | • ServerWorks HT2000 • ServerWorks HT1000 |
|
System Memory
| |
|---|---|
| Memory Capacity | • Eight 184-pin DIMM sockets • Supports up to 16 GB DDR 400 MHz memory or • Supports up to 32 GB DDR 333 MHz memory or • Supports up to 32 GB DDR 266 MHz memory • Single or Dual (recommended) channel memory support • For Single CPU: Memory must be populated in the adjacent memory bank • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB** |
| Memory Voltage | • 2.5 V only |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| IDE | • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA/100 |
SCSI | • Adaptec AIC-7902W Controller • Dual-Channel Ultra320 SCSI with Host RAID • Host RAID 0, 1, 10, JBOD |
Zero Channel RAID | • Support for Zero-Channel RAID | IPMI | • Intelligent Platform Management Interface v.2.0+ • (Optional: 1UIPMI-B ) 1U Support • (Optional: 1UIPMI-B + 1UIPMI-LANG) for 3rd LAN port support with IPMI • RMM (Remote Management Module) • (Card not included) |
|---|---|
| Network Controllers | • ServerWorks® HT2000 Dual Gigabit Ethernet Controller • Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| VGA | • ATI Rage XL 8MB PCI Graphics Controller • VGA Port |
| Super I/O | • NS PC87427 |
| Clock Generator |
• ICS932S801AG |
|
Expansion Slots
| PCI-Express | • 2 PCI-e x8 slots (Optional with PCI-e Riser Card) | PCI-X | • 1 64-bit 133MHz PCI-X (3.3V) slot
(Low-Profile) • 1 64-bit 100MHz PCI-X (3.3V) slot (Full-height / Full-length) |
IPMI | • IPMI 2.0 expansion slot |
|---|
|
Input/Output
| SCSI | • 2-Channel Ultra320 SCSI • AIC7902 SCSI Controller • SCSI ZCR Support |
Floppy | • 1 Floppy port; 1.44 MB | LAN | • 2 RJ45 LAN port |
|---|---|
| USB | • FUCI • 2 USB Rear Ports • 2 USB Internal Headers • USB 2.0 Compliant, 1.1 Compatible |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | •
1 Fast UART 16550 serial ports • 1 Header |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC813S+-500 |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Gross Weight | • 36 lbs (16.4kg) |
| Available Colors | • Beige, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 4 x 3.5" hot-swap SCSI Drive Bays with SAF-TE |
|
Peripheral Drives
| |
|---|---|
| Floppy | • 3.5" 1.44MB Slim Floppy Drive |
| CD-ROM |
• Slim 24x CD-ROM drive |
|
SCSI Backplane
| |
|---|---|
• 4 x 3.5" SCSI HDD Backplane |
|
|
System Cooling
| |
|---|---|
| Fans | • 4x 10,200 RPM counter rotating fans |
|
Power Supply
| |
|---|---|
| Cold-swappable 500W AC power supply module with PFC [ 20-pin, (4-pin, 8-pin = 12V) ] | |
| AC Voltage | • 100 - 240V, 60-50Hz, 10 Amp Max |
| DC Output |
• 5V + 3.3V ≤ 160W |
| +5 | • 30.0 Amp |
| +5V standby | • 2.0 Amp |
| +12V | • 39.0 Amp |
| $3.3V | • 21.0 Amp |
|
System BIOS
| |
|---|---|
| BIOS Type | • 8Mb Flash EEPROM with AMI® BIOS |
| IOS Features | • Plug and Play (PnP) • ACPI 2.0 • PCI 2.2 • DMI 2.3 • BIOS Rescue Hot Keys • SMBIOS 2.3 • USB Keyboard support |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +5V, ±12V & +2.5V, 2.5V Standby, +5V Standby, VBAT |
| FAN | • Total of up to five 3-pin fan headers |
| Temperature | • Monitoring for CPU and chassis environment |
| LED |
• CPU / Overheat LED |
| Other Features |
• Features
Chassis Intrusion Detection • Chassis Intrusion Header |
