  • Supermicro 1U Rackmount A+ Server AS-1020P-8RB

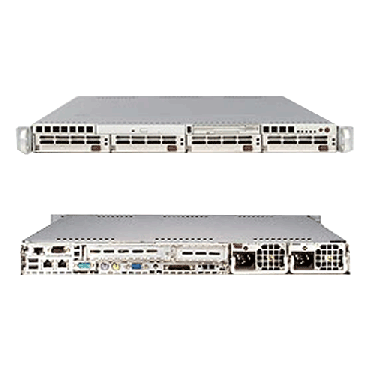

Supermicro 1U Rackmount A+ Server AS-1020P-8RB

Call for price.
SKU:AS-1020P-8RB

Quick Overview:

Key Features:
• Supports Dual AMD® Opteron™ (Dual Core Ready)
• Supports up to 32GB of memory
• 4 x 3.5" Ultra320 SCSI Hot-swap Drive Bays
• Zero Channel RAID Support
• 700W Redundant Power Supply

Details

Supermicro 1U Rackmount A+ Server AS-1020P-8RB

Product SKU
• A+ Server 1020P-8R (Beige)
• A+ Server 1020P-8RB (Black)
Motherboard
  • Super H8DSP-8
Processor/Chipset
CPU • Dual 940-pin ZIF Sockets
• Supports up to two Dual-Core AMD Opteron™ 200 Series processor(s)
• 1MB Cache
• VRM x3
Chipset • ServerWorks HT2000
• ServerWorks HT1000
System Memory
Memory Capacity • Eight 184-pin DIMM sockets
• Supports up to 16 GB DDR 400 MHz memory or
• Supports up to 32 GB DDR 333 MHz memory or
• Supports up to 32 GB DDR 266 MHz memory
• Single or Dual (recommended) channel memory support
• For Single CPU: Memory must be populated in the adjacent memory bank
• For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type

• DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB, 4GB**

Memory Voltage

• 2.5 V only

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
IDE • Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports ATA/100
SCSI • Adaptec AIC-7902W Controller
• Dual-Channel Ultra320 SCSI with Host RAID
• Host RAID 0, 1, 10, JBOD
Zero Channel RAID • Support for Zero-Channel RAID
IPMI • Intelligent Platform Management Interface v.2.0+
• RMM (Remote Management Module)
• (Card not included)
• (Optional: 1UIPMI-B ) 1U Support
• (Optional: 1UIPMI-B + 1UIPMI-LANG) for 3rd LAN port support with IPMI
Network Controllers • ServerWorks® HT2000 Dual Gigabit Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA

• ATI Rage XL 8MB PCI Graphics Controller
• VGA Port

Super I/O

• NS PC87427

Clock Generator

• ICS932S801AG

Expansion Slots
Left Universal Slot • 1 (x8) PCI-E slot (Optional with Riser Card) OR
• 1x 64-bit PCI-X 133MHz slot
• Accommodates Full-height (maximum 11" length) add-on cards
Right Universal Slot • 1 (x8) PCI-E slot (Optional with Riser Card) OR
• 1x 64-bit PCI-X 100MHz slot
• Low-profile slot
IPMI • IPMI 2.0 expansion slot
Input/Output
SCSI • 2-Channel Ultra320 SCSI
• AIC7902 SCSI Controller
• SCSI ZCR Support
Floppy • 1 Floppy port; 1.44 MB
LAN • 2 RJ45 LAN port
USB • FUCI
• 2 USB Rear Ports
• 2 USB Internal Headers
• USB 2.0 Compliant, 1.1 Compatible
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 1 Fast UART 16550 serial ports
• 1 Header
Chassis
Form Factor • 1U Rackmount
Model SC816S-R700
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27" (686mm)
Gross Weight • 46 lbs (20.9kg)
Available Colors • Beige, Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• UID LED

Drive Bays
Hot-swap

• 4 x 3.5" Hot-swap Ultra320 SCSI drive bays

Peripheral Drives
Floppy

• Slim Floppy Drive

DVD-ROM

• Slim 8x DVD-ROM Drive

SCSI Backplane


• 4-port SCSI Backplane with SAF-TE

System Cooling
Fans

• 4x 15000 RPM Nidec Dual Blade Fans

Power Supply
  700W AC-DC power supply and power distributor w/ PFC
AC Input • 100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby
• 4 Amp
+12V • 57 Amp
With Power
Distribution
• +5V: 24 Amp
• +3.3V: 21 Amp
• -12V: 0.6 Amp
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +5V, ±12V, +5V Standby, +2.5V Standby, VBAT
• Monitor for HyperTransport voltage 1.2V, memory voltage 2.5V, DDR termination 1.25V
• Up to 10 fan status
• Supports System Management Utility

FAN • Total of up to 5 proprietary fan headers
• 10 Tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low-noise Fan Speed Control
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip support
• PC temperature sensing logic
LED • CPU / Overheat LED
• Suspend-state indicator LED
•+5V Standby alert LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
System BIOS
BIOS Type

• 8Mb Flash EEPROM with AMI® BIOS
• SST49LF080A BIOS Chip

BIOS Features














• Plug and Play (PnP)
• ACPI 2.0
• PCI 2.2
• DMI 2.3
• BIOS Rescue Hot Keys
• SMBIOS 2.3
• USB Keyboard support
