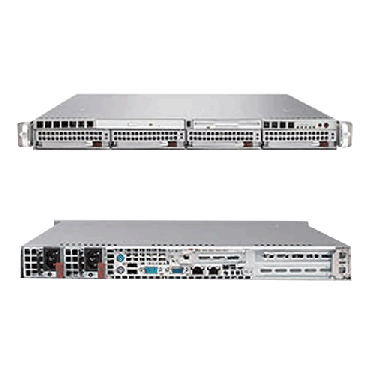

Supermicro 1U Rackmount A+ Server AS-1011M-URB

More Views

Supermicro 1U Rackmount A+ Server AS-1011M-URB

Description

Details

Supermicro 1U Rackmount A+ Server AS-1011M-URB

Product SKU
AS-1011M-URV	• A+ Server 1011M-URV (Silver)
AS-1011M-URB	• A+ Server 1011M-URB (Black)

Motherboard
	• Super H8SMU

Processor/Chipset
CPU	• Single 940-pin AM2 Socket • Supports one Quad-Core AMD Opteron™ 1000 Series (Socket AM2/AM3) processor • 4 phase VRM
System Bus	• 1000MHz HyperTransport
Chipset	• nVidia MCP55 Pro

System Memory
Memory Capacity	• Four 240-pin DIMM sockets • Supports up to 8 GB DDR2 800/667/533 MHz memory • Single or Dual (recommended) channel memory
Memory Type	• DDR2 800/667/533MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 512 MB, 1GB, 2GB
Memory Voltage	• 1.8V only

On-Board Devices
SATA	• nVidia MCP55 Pro SATA2 3.0Gbps Controller • 4 SATA Ports • nVidia RAID 2.0 • SATA RAID 0, 1, 0+1, 5, JBOD Support
IDE	• Single EIDE channel • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA/100/133
IPMI	• Intelligent Platform Management Interface v.2.0: (Optional: AOC-SIMSO(+) R 3.00) • RMM (Remote Management Module) • (Card not included)
Network Controllers	• nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA	• ATI ES1000 graphics controller
Super I/O	• Winbond 83627HG

Input/Output
SATA	• Up to four SATA2 devices
IDE	• Single ATA 133/100 EIDE channels support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports ATA133/100
Floppy	• 1 Floppy port 1.44 MB
LAN	• 2 RJ45 LAN ports
USB	• 2 USB Rear Ports • 2 USB Internal Headers • 4 Total USB 2.0 Compliant, 1.1 Compatible
VGA	• 1 VGA port
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Ports	• 1 Fast UART 16550 serial ports • 1 Header

System BIOS
BIOS Type	• 4Mb Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • USB Keyboard support

Chassis
Form Factor	• 1U Rackmount
Model	• SC815TQ-R450U

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 25.6" (650mm)
Gross Weight	• 40 lbs (18.1kg)
Available Colors	• Silver, Black

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • Universal Information (UID) LED
Ports	• 2x USB & DB9 COM port tray • (Optional - in place of floppy drive)

Expansion SLots
Left Slots	• 1 Universal I/O (UIO) Slot (Full-height / Full-length) • 1 PCI-express x8 Slot (Full-height / Full-length)
Right Slot	• 1 PCI-express x8 Slot (Low-Profile)

Drive Bays
Hot-swap	• 4 x 3.5" Hot-swap SAS / SATA drive bays

SATA Backplane
	• 1U SATA / SAS Backplane w/ AMI 9071 chip

Peripheral Drives
DVD-ROM	• Slim 8x DVD, 24x CD, DVD-ROM drive

System Cooling
Fans	• 3x 4cm counter-rotating fans
Air Shroud	• 1x Air Shroud

Power Supply
	450W AC power supply w/ PFC
AC Voltage	• 100 - 240V, 60-50Hz, 6.3-3.2 Amp
+5V	• 25 Amp
+5V standby	• 3 Amp
+12V	• 37 Amp
12Vsb	• 0.6 Amp
+3.3V	• 25 Amp

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +3.3V, +5V, +12V, +5V Standby, VBAT • CPU 4-phase Switching Voltage Regulator
FAN	• Total up to five 3-pin fan headers • Support 3-pin fans (with speed control)
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip support • I2C temperature sensing logic
LED	• CPU / Overheat LED • Suspend-state indicator LED • +5V Standby Alert LED • UID/Remote UID LED
Other Features	• Chassis Intrusion Header • Chassis Intrusion Detection

Operating Environment / Compliance
Environmental Spec.	• Operating Temperature: 10?to 35?C (50?to 95?F) • Non-operating Temperature: -40?to 70?C (-40?to 158?F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
