  • Supermicro 1U Rackmount A+ Server AS-1011M-T2

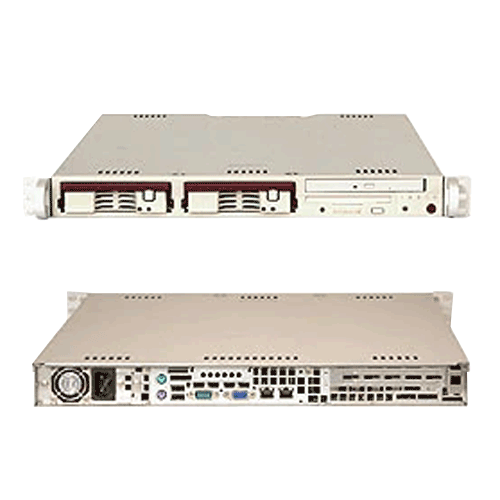

Supermicro 1U Rackmount A+ Server AS-1011M-T2

Call for price.
SKU:AS-1011M-T2

Quick Overview:

Key Features:
• Supports one Quad-Core AMD Opteron™ 1000 Processor
• Up to 8GB of memory
• 1 x PCI-E x16 Full-height / Half-length Slot
• Dual-port Gigabit LAN/Ethernet Controller
• 2 x Hot-swap SATA Drive Bays
• 260W Power Supply


Details

Supermicro 1U Rackmount A+ Server AS-1011M-T2

Product SKU
• A+ Server 1011M-T2 (Beige)
• A+ Server 1011M-T2B (Black)
Motherboard
  • Super H8SMi-2
Processor/Chipset
CPU • Single 940-pin ZIF Socket
• Supports one Quad-Core AMD Opteron™ 1000 Series (Socket AM2/AM3) processor
• 4 phase VRM
System Bus • 1000MHz HyperTransport
Chipset • nVidia MCP55 Pro
System Memory
Memory Capacity • Four 240-pin DIMM sockets
• Supports up to 8 GB DDR2 800/667/533 MHz memory
• Single or Dual (recommended) channel memory
Memory Type

• DDR2 800/667/533MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB

Memory Voltage

• 1.8V only

On-Board Devices
SATA • nVidia MCP55 Pro SATA2 3.0Gbps Controller
• 6 SATA Ports
• nVidia RAID 2.0
• SATA RAID 0, 1 Support
IDE • Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports ATA/100/133
IPMI • Intelligent Platform Management Interface v.2.0 1U: (Optional: AOC-SIM1U(+) R 3.00)
• RMM (Remote Management Module)
• (Card not included)
Network Controllers • nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA • ATI ES1000 graphics controller
Super I/O

• Winbond 83627HF

Expansion Slots
PCI-Express • 1 x16 PCI-e slot
Input/Output
SATA • Up to six SATA2 devices
IDE

• Single ATA 133/100 EIDE channels support up to two UDMA IDE devices
• Supports UDMA Mode 5
• Supports ATA133/100

LAN • 2 RJ45 LAN ports
USB • 2 USB Rear Ports
• 4 USB Internal Headers
• 6 Total USB 2.0 Compliant, 1.1 Compatible
VGA • 1 VGA port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 1 Fast UART 16550 serial ports
• 1 Header
Paralel Port










• 1 ECP / EPP parallel port










Chassis
Form Factor • 1U Rackmount
Model SC811FT-260
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (426.7mm)
Depth • 22.6" (574mm)
Gross Weight • 35 lbs (15.9kg)
Available Colors • Beige, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED

Drive Bays
Hot-swap

• 2 x 3.5" SATA Hot-swap drive bays

Peripheral Drives
CD-ROM

• Slim 24x CD-ROM drive

Backplane


• 1x 1U SAS / ATA backplane

System Cooling
Fans

• 2x 4cm counter-rotating fans

Air Shroud

• 1x Air duct

Power Supply
  Thermal control 260W AC power supply with PFC [ 24-pin, 4-pin=12V, (2) 4-pin ]
AC Voltage • 100 - 240V, 60-50Hz, 4 Amp Max
DC Output
• 5V + 3.3V ≤ 140W
+5V • 25.0 Amp
+5V standby • 2.0 Amp
+12V • 18.0 Amp
-12V • 1.0 Amp
Certification+3.3V • 15.0 Amp
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
• Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V
• CPU 4-phase Switching Voltage Regulator

FAN • Total up to five 3-pin fan headers
• 5 Fan Status Tachometer monitoring
• Status Monitor for Speed Control
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip support
• I2C temperature sensing logic
LED • CPU / Overheat LED
• Suspend-state indicator LED
• +5V Standby Alert LED
Other Features • Chassis Intrusion Header
• Chassis Intrusion Detection
• Chipkill Support
System BIOS
BIOS Type

• 4Mb Flash EEPROM with AMI® BIOS

BIOS Features • Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• BIOS Rescue Hot Keys
• SMBIOS 2.3
• USB Keyboard support
• Hardware BIOS Virus Protection
