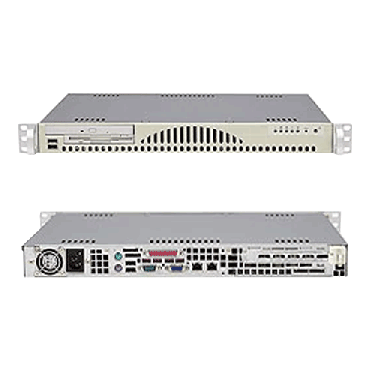

Supermicro 1U Rackmount A+ Server AS-1010S-MRB

More Views

  • Supermicro 1U Rackmount A+ Server AS-1010S-MRB

Supermicro 1U Rackmount A+ Server AS-1010S-MRB

Call for price.
SKU:AS-1010S-MRB

Quick Overview:

Key Features:
• Supports Single AMD® Opteron™ (Dual Core Ready)
• Up to 4GB of memory
• Dual-port Broadcom BCM5704CX
• Support for IPMI 2.0
• Supports up to One 3.5" SATA HDD
• 260W Power Supply

Details

Supermicro 1U Rackmount A+ Server AS-1010S-MRB

Product SKU
AS-1010S-MR • A+ Server 1010S-MR (Black)
AS-1010S-MRB • A+ Server 1010S-MRB (Black)
Motherboard
  • Super H8SSL-i
Processor/Chipset
CPU • Single 939-pin ZIF Sockets
• Supports one Dual-Core AMD Opteron™ 100 Series processor
• 1MB Cache
• 4 phase VRM
Chipset • HyperTransport Link
• ServerWorks HT1000 I/O Hub
System Memory
Memory Capacity • Four 184-pin DIMM sockets
• Supports up to 4 GB DDR 400/333 MHz memory or
• Single or Dual (recommended) channel memory
Memory Type

• DDR 400/333MHz unbuffered ECC/non-ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes

• 256 MB, 512 MB, 1GB
Memory Voltage

• 2.5 V only
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA • 4 SATA Ports using ServerWorks HT1000 controller
IDE • Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports PIO Mode 4 Supports ATA/100
IPMI • Intelligent Platform Management Interface v.2.0+ (Optional: 1UIPMI-B)
• (Card not included)
Network Controllers • Broadcom BCM5704C Dual Gigabit Ethernet Controller
• Supports 1000BASE-T, RJ45 output
VGA • ATI Rage XL 8MB PCI Graphics Controller
• VGA Port
Super I/O • NS PC87427
Clock Generator

• ICS932S801AG
Expansion Slots
PCI-X • 1 64-bit 133MHz PCI-X (3.3V) slot
Input/Output
SATA • Up to two SATA devices
IDE • Single ATA 100 EIDE channels support up to two UDMA IDE devices
• Supports UDMA Mode 5
• Supports ATA/100
Floppy • 1 Floppy port; 1.44 MB
LAN • 2 RJ45 LAN ports
USB • 2 USB Rear Ports
• 2 USB Internal Headers
• USB 2.0 Compliant, 1.1 Compatible
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 2 Fast UART 16550 serial ports
• 1 Header
System BIOS
BIOS Type

• 4Mb Flash EEPROM with AMI® BIOS
• SST-49LF004B BIOS Chip
BIOS Features

• Plug and Play (PnP)
• ACPI 1.0
• PCI 2.2
• DMI 2.3
• BIOS Rescue Hot Keys
• SMBIOS 2.3
• USB Legacy support
• Hardware BIOS Virus Protection
• RTC (Real Time Clock) Wakeup
Chassis
Form Factor • 1U Rackmount
Model • SC512C-260B
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (426mm)
Depth • 14" (356mm)
Gross Weight • 17 lbs (7.7kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Failure LED
Ports

• 2x USB Ports (USB 2.0 Ready)
Peripheral Drives
Floppy

• 3.5" 1.44MB Slim Floppy Drive
CD-ROM

• Slim 24x CD-ROM drive
System Cooling
Fans

• 1x 5K RPM 10cm Blower Fan
Air Shroud

• 1x Air duct
Power Supply
  Thermal control 260W AC power supply with PFC [ 24-pin, 4-pin=12V, (2) 4-pin ]
AC Voltage • 100 - 240V, 60-50Hz, 4 Amp Max
DC Output
 • 5V + 3.3V ≤ 140W
+5V • 25.0 Amp
+5V standby • 2.0 Amp
+12V • 18.0 Amp
-12V • 1.0 Amp
+3.3V • 15.0 Amp
Regulatory (Power Supply)
Safety / EMC

• USA - UL Listed, FCC
• Canada - CUL listed
• Germany - TUV Certified
• Europe/CE Mark
• EN 60950/IEC 60950-Compliant
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +5V, ±12V, 2.5V Standby, 5V Standby, VBAT
• Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V
• CPU 4-phase Switching Voltage Regulator
• Supports System Management Utility
FAN

• Total up to five 3-pin fan headers
• 5 Fan Status Tachometer monitoring
• Status Monitor for Speed Control
Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip support
• I2C temperature sensing logic

LED

• CPU / Overheat LED
• Suspend-state indicator LED
Other Features









 • Chassis Intrusion Header
