  • Supermicro 1U Rackkmount A+ Servers AS-1010P-T

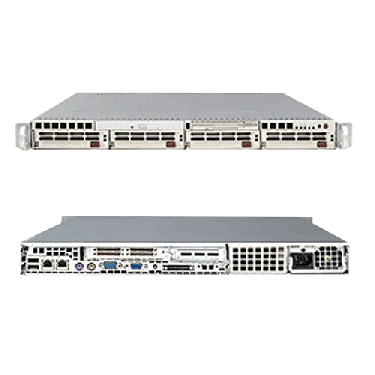

Supermicro 1U Rackkmount A+ Servers AS-1010P-T

Call for price.
SKU:AS-1010P-T

Quick Overview:

Key Features:
• Supports a single Dual-Core AMD Opteron™ 200 Series processor(s)
• Up to 16GB of memory
• Dual-port Gigabit ServerWorks
• 4 x 3.5" Hot-swap SATA Drive Bays
• 400W Power Supply

Details

Supermicro 1U Rackkmount A+ Servers AS-1010P-T

Product SKU
• A+ Server 1010P-T (Beige)
• A+ Server 1010P-TB (Black)
Motherboard
  • Super H8SSP-i
Processor/Chipset
CPU • Single 940-pin ZIF Sockets
• Supports a single Dual-Core AMD Opteron™ 200 Series processor(s)
• 1MB Cache
• VRM x3
Chipset • ServerWorks HT2000
• ServerWorks HT1000
System Memory
Memory Capacity • Four 184-pin DIMM sockets
• Supports up to 8 GB DDR 400 MHz memory or
• Supports up to 16 GB DDR 333 MHz memory or
• Supports up to 16 GB DDR 266 MHz memory
• Single or Dual (recommended) channel memory support
Memory Type

• DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB, 4GB**

Memory Voltage

• 2.5 V only

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA • 4 SATA Ports using ServerWorks HT1000 controller
IDE • Supports UDMA Mode 5
• Supports PIO Mode 4
• Supports ATA/100
IPMI • Intelligent Platform Management Interface v.2.0+
• (Optional: 1UIPMI-B ) 1U Support
• (Optional: 1UIPMI-B + 1UIPMI-LANG) for 3rd LAN port support with IPMI
• RMM (Remote Management Module)
• (Card not included)
Network Controllers • Broadcom BCM5704C Dual Gigabit Ethernet Controller
• Supports 1000BASE-T, RJ45 output
VGA • ATI Rage XL 8MB PCI Graphics Controller
• VGA Port
Super I/O • NS PC87427
Clock Generator

• ICS932S801AG

Expansion Slots
Left Universal Slot • 1 (x8) PCI-E slot (Optional with Riser Card) OR
• 1x 64-bit PCI-X 133MHz slot
• Accommodates Full-height (maximum 11" length) add-on cards
Right Universal Slot • 1 (x8) PCI-E slot (Optional with Riser Card) OR
• 1x 64-bit PCI-X 100MHz slot
• Low-profile slot
IPMI • IPMI 2.0 expansion slot
Input/Output
SATA • Up to four SATA devices
IDE • Single ATA 100 EIDE channels support up to two UDMA IDE devices
• Supports UDMA Mode 5
• Supports ATA/100
Floppy • 1 Floppy port; 1.44 MB
LAN • 2 RJ45 LAN ports
USB • 2 USB Rear Ports
• 2 USB Internal Headers
• USB 2.0 Compliant, 1.1 Compatible
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 2 Fast UART 16550 serial ports
• 1 Header


Chassis
Form Factor • 1U Rackmount
Model SC816T-400
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27" (686mm)
Gross Weight • 46 lbs (20.9kg)
Available Colors • Beige, Black
Front Panel
Buttons

• Power On/Off button
• UID button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat / Fan Fail LED
• UID LED

Drive Bays
Hot-swap

• 4 x 3.5" Hot-swap SATA drive bays

Peripheral Drives
Floppy

• Slim Floppy Drive

DVD-ROM

• Slim 8x DVD-ROM Drive

SATA Backplane


• 4-Port SATA Backplane

System Cooling
Fans

• 3x 15000 RPM Dual Blade Fans

Power Supply
  400W AC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 6A-3A Amp
+5V
• 24 Amp
+5V standby • 4 Amp
+12V • 32 Amp
-12V • 0.6 Amp
+3.3V • 21 Amp
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +5V, ±12V & +2.5V Standby, +2.5V Standby, VBAT.
• Monitor for HyperTransport voltage 1.2V, memory voltage 2.5V, DDR termination 1.25V
• Up to 10 fan status
• Supports System Management Utility

FAN • Total of up to 5 proprietary fan headers
• 10 Tachometer monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low-noise Fan Speed Control
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip support
• PC temperature sensing logic
LED • CPU / Overheat LED
• Suspend-state indicator LED
• +5V Standby alert LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
System BIOS
BIOS Type

• 8Mb Flash EEPROM with AMI® BIOS
• SST49LF080A BIOS Chip

BIOS Features • Plug and Play (PnP)
• ACPI 2.0
• PCI 2.2
• DMI 2.3
• BIOS Rescue Hot Keys
• SMBIOS 2.3
• USB Keyboard support
