Details
|
Product SKU
| |
|---|---|

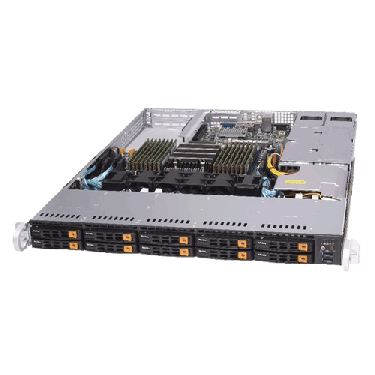

| AS -1113S-WN10RT | • A+ Server 1113S-WN10RT |
|
Motherboard
| |
|---|---|
| • H11SSW-NT | |
| Processor/Cache
|
|
|---|---|
| CPU | • Single AMD EPYC™ 7000-series Processor • Socket SP3 |
| Cores | • Up to 32 Cores |
| Chipset | • System on Chip (SoC) |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16 DIMM slots • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM • 8-channel memory bus |
| Memory Type | • DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB |
| Memory Voltage | • 1.2V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2500 BMC |
|---|---|
| Network Controllers | • Broadcom BCM57416 Controller |
| VGA |
• ASPEED AST2500 BMC |
|
Expansion Slots
| PCI Express | • 2 PCI-E 3.0 x16 (FH/HL) slots • 1 PCI-E 3.0 x16 (LP) slot |
M.2 | • Interface: PCI-E 3.0 x2 (NVMe based) • Form Factor: 2280, 22110 • Key: Onboard M-key • Number of M.2: 2 |
|---|
|
Input/Output
| NVMe | • Up to 10 U.2 NVMe support | SATA | • Optional 4 SATA3 (6 Gbps) support via additional cables | LAN | • 2x 10GbBase-T LAN ports •1 RJ45 Dedicated IPMI LAN port |
|---|---|
| USB | • 7 USB 3.0 ports (4 rear + 2 front + 1 Type A) |
| VGA | • 1 VGA port |
| Others | • 1 COM port • 2 SATA DOM power connectors • TPM 1.2 header |
|
System BIOS
| |
|---|---|
| BIOS Type | • AMI 128Mb SPI Flash EEPROM |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 1U |
| Model | • CSE-116TS-R706WBP3 |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 23.5" (597mm) |
| Gross Weight | • 33 lbs (15.0 kg) |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 10 hot-swap 2.5" U.2 NVMe drive bays |
|
Backplane
| |
|---|---|
| Hybrid Backplane | • Supports up to 10x 2.5" NVMe storage devices, 4 of them SAS3/SATA3 compatible |
|
System Cooling
| |
|---|---|
| Fans | • 6 heavy-duty PWM fans with optimal fan speed control |
| Air Shroud |
• 1 Air Shroud |
|
Power Supply
| |
|---|---|
| 700W/750W Redundant Power Supplies with PMBus | |
| Total Output Power | • 700W/750W |
| Dimension
(W x H x L) |
• 54.5 x 40.25 x 320 mm |
| Input | • 100 - 140Vac / 8 - 6A / 50-60Hz • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz • 200 - 240Vdc / 4.5 - 3.8A (CCC Only) |
| +12V | • Max: 58A / Min: 0.5A (100 - 140Vac) • Max: 62A / Min: 0.5A (200 - 240Vac) • Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) |
| +5Vsb | • Max: 3A / Min: 0A |
| Output Type | • Gold Finger Connector Mating with Molex 45984-4343 |
| Certification | • Platinum Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT |
| FAN | • Up to 6-fan status tachometer monitoring • Up to six 4-pin fan headers • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip Support • Thermal control for 6x Fan connectors • I²C Temperature Sensing Logic |
| LED | • CPU / System Overheat LED |
| Other Features | • Chassis Intrusion Detection • Chassis Intrusion Header |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
