  • Supermicro 1U A+ Servers AS-1012A-M73RF

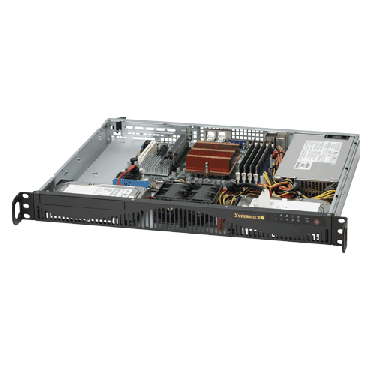

Supermicro 1U A+ Servers AS-1012A-M73RF

Call for price.
SKU:AS-1012A-M73RF

Quick Overview:

Key Features:
• Single AMD Opteron™ 3000 series processor
• Up to 32GB of memory
• 4x Hot-swap SAS/SATA Hard Drive Bays
• 2x Intel 82574L single-port Gigabit Ethernet Controller
• LSI 2308 onboard SAS2 controller
• Redundant 400W High-efficiency Power Supply Gold Certified

Details

Supermicro 1U A+ Servers AS-1012A-M73RF

Product SKU
• A+ Server 1012A-M73RF
Motherboard
  • Super H8SML-7F
Processor/Cache
CPU • Single 942-pin Socket AM3+
• Supports up to Single 8/4-Core ready AMD Opteron™ 3000 Series processor
• HT3.0 Link support
Chipset • AMD chipset SR5650/SP5100
System Memory
Memory Capacity • 4 DIMM sockets
• Support up to 32GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 4 DIMMs
• Single or Dual channel memory bus
Memory Type

• DDR3 1600/1333/1066MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.35V or 1.5V

On-Board Devices
SATA • AMD SP5100 RAID 0, 1, 10
SAS • LSI 2308 SAS Controller for 4 SAS /SATA, RAID 0,1,10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Winbond® WPCM450 BMC
Network Controllers • Intel 82574L single-port Gigabit Ethernet, 10/100/1000Base-T support
VGA

• Matrox G200eW 16MB DDR2 graphics

Super I/O

• Winbond® W83527HG chip

Expansion Slots
PCI-E/PCI • 1 PCI-E 2.0 x4 (in x8 slot)
Input/Output
SATA • 6x SATA2.0 (3Gb/s) Ports
USB • 7x USB 2.0 ports (2x rear / 2x header - 4 ports / 1x type A)
VGA • 1x VGA port
Serial Ports • 2 Fast UART 16550 serial ports
• 1 header & 1 port
IPMI • 1x dedicated IPMI LAN port
System BIOS
BIOS Type

• 16Mb SPI Flash ROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 2.0
• USB Keyboard Support
• SMBIOS 2.3

Chassis
Form Factor • 1U Rackmount
Model 813MTQ-R400CB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 19.85" (503 mm)
Gross Weight • 41 lbs(18.59kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED

Drive Bays
Hot-swap

• 4 hot-swap 3.5?SATA drive bays
• Enterprise SATA HDD only recommended

System Cooling
Fans

• 4x 4cm heavy duty counter-rotating fans

Power Supply
  400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
AC Input • 100-240V, 50-60Hz, 6-3A
DC Output
• +5V standby: 3A
• +12V: 33A
DC Output With
Power Distributor
• +5V: 25A
• +3.3V: 25A
• -12V: 0.6A
Certification • Gold Certified
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
• Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V
• CPU 4-phase Switching Voltage Regulator

FAN • Total up to four 4-pin fan headers
• 4 Fan Status Tachometer monitoring
• Status Monitor for Speed Control
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip support
• I2C temperature sensing logic
LED • CPU / Overheat LED
• Suspend-state indicator LED
• +5V Standby Alert LED
Other Features • Chassis Intrusion Header
• Chassis Intrusion Detection
• Chipkill Support
