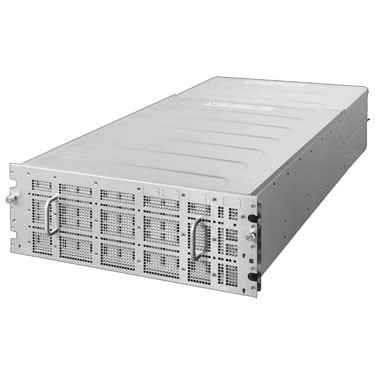

JBOD Storage Server 108 Bays / 1 Petabyte Capacity - 01

More Views

  • JBOD Storage Server 108 Bays / 1 Petabyte Capacity - 01

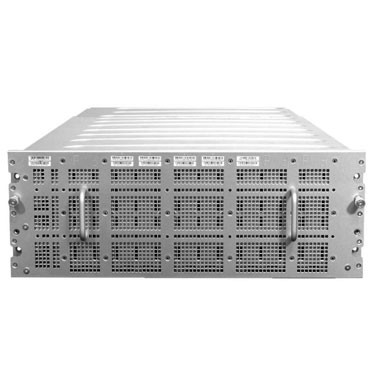

  • JBOD Storage Server 108 Bays / 1 Petabyte Capacity - 02
  • JBOD Storage Server 108 Bays / 1 Petabyte Capacity - 03
  • JBOD Storage Server 108 Bays / 1 Petabyte Capacity - 04

The Sledge Hammer - 4U Top-Load 108 Bays JBOD Storage Server

Call for price.
SKU:G108JBOD

Quick Overview:

Key Features:
• Expand up to 108 drives and scale to more than 1PB capacity
• Available with SAS3 drives or SATA3 drives for cost optimization
• Available with 4 x SAS 12G expander boards (LSI SAS35x36R); SAS x4 cascade link; easier serviceability
• Redundant  platinum  level  power  supplies
• SAS 3.0 fully compliant for operations up to 12Gbps
• Internal cable chain design to eliminate cable management arm and allow easier servicing of internal components
• Four 12Gbps mini-SAS HD ports located on rear panel to increase accessibility

Please contact your Will Jaya sales rep for special requirements.

Details

JBOD Storage Server 108 Bays

The SledgeHammer - scale to more than 1PetaByte capacity. Available with 4x SAS 12G expander; SAS x4 cascade link. Features Redundant platinum level power supplies and 4x 12Gbps
mini-SAS HD ports.
Product SKU
P/N • 88-0003-01A
Dimension and Weight
Height • 7" (17.78cm)
Width • 17.75" (45.08cm)
Depth • 38" (96.52cm)
Gross Weight • N/A
Available Color • Silver
Drive Bays


• Tool-less Trays
• 108x 3.5" Top-Load Hot-swap SAS3/SATA3 HDD Bays
• 4 x SAS 12G expander boards (LSI SAS35x36R)
• SAS x4 cascade link; easy serviceability
Power Supply
Type • 2 x 1U 1600W redundant power supplies
Total Output Power

• 1600W
Dimension
(W x H x L)

• 73.5mm x 40mm x 195mm
Input • 200Vac~240Vac, 47~63Hz; 192Vdc~288Vdc
Certification • UL, CB, CE, CCC, BSMI, KC, NEMKO
Cooling
Chipset • 11+1 6038mm fans
• Redundant cooling
Operating Environment
RoHS • RoHS compliant
Environmental
Specificaiton		 • Operating temperature 5°C to 35°C (41°F to 95°F)
• Non-operating temperature -40°C to 70°C (-40°F to 158°F)
• Operating relative humidity 8% to 85%
• Non-operating relative humidity 5% to 95%
Certification • FCC, CE, CCC, VCCI, UL, and CB
System Monitoring
Power (W)

• Fan and HDD group power monitoring
Voltage • Main chip/HDD/System voltage monitoring
Fan • 12 x fans status monitoring
Temperature • System ambient/Outlet/HDD/Expander
Rear Panel
Buttons • 1x Power On/Off button with LED
• 1x UID button
RJ45 • 1x RJ45 port for management
USB Debug Port • 1x USB Type-B
Mini-SAS HD Ports • 4x 12Gbps mini-SAS HD ports
LEDs • 1x Power button with LED
• 1x System status LED
• 1x UID LED
Remote Management
(Power Control) • On/Off: IPMI v2 standard
(Fan Control) • Optimized Fan Speed: With one open loop and three close loop profiles
(LED) • UID/Status: System indicator/Fault indicator
(Sensor Monitor) • Power/Environment: Reporting and logging
(Sideband) • Storage FW Communicate: Access over IPMI v2/RMCP+
(SOL) • Storage CLI: Storage FW CLI console redirection over LAN
Storage FW Feature
UI Management

• CLI Console: CLI commands for configuration and debugging
Protocols • SMP:Serial management protocol
• SES:SCSI enclosure service
• SCSI:Small computer system interface
Firmware Upgrade • Serial Port:Single expander download
• In-band:SCSI write buffer; SCSI SES page
LED Condition • Disk:Fault and locate
Other Features


• Disk Spin Up: Disks spin up control in groups
• S.M.A.R.T. Support: Obtain disk S.M.A.R.T. information
• Non-disruptive FW Update:Upgrade expander FW without interrupting the I/O function
• Hardware POST:Power-on self-test
• Disk Power Control:Use eFuse to control disk power individually
• Tool-less Trays
• Top-Load
